How to Install Icinga 2 Monitoring Software on Ubuntu 20.04 LTS

Icinga is a free and open-source monitoring tool for your data center. It's a computer system and network monitoring application that checks the availability of your network and computer resources, notifies system outages, generates performance data of your resources, and provides the high-availability and distributed monitoring setup with the built-in cluster feature.

Icinga was created as a fork of the Nagios Monitoring tool in 2009. And now, it has been rewritten from scratch in C++, and become one of the most popular monitoring tools on the internet. The word 'Icinga' is a Zulu word meaning 'it looks for', or 'it browsers', or 'it examines'.

In this tutorial, we will show you how to install and configure the Icinga 2 monitoring tool using an Ubuntu 20.04 LTS server. We will install Icinga 2 from the official repository and then configure the icingaweb2, the lightweight, and extensible web interface for an icinga2 monitoring tool.

Prerequisites

For this guide, we will install the icinga2 and icingaweb2 using the Ubuntu 20.04 Server with 2GB of RAM Memory. If you're on large deployments, you can use more than that.

What we will do?

  • Install Icinga2 and Nagios Monitoring Plugins
  • Install and Configure MySQL Database
  • Install and Configure Icinga MySQL Module
  • Install Apache2 and PHP Packages
  • Install and Configure Icingaweb2
  • Icinga2 Stack Post-Installation

Step 1 - Install Icinga2 and Nagios Monitoring Plugins

First` we will add the icinga2 repository for the Ubuntu 20.04 and install the icinga2 packages and nagios Monitoring plugins.

Add the GPG key of the Icinga2 to your system.

curl https://packages.icinga.com/icinga.key | apt-key add -

Now go to the '/etc/apt/sources.list.d' directory and create a new repository file 'icinga-focal.list'.

cd /etc/apt/sources.list.d/
vim icinga-focal.list

Paste the following repository configuration.

deb http://packages.icinga.com/ubuntu icinga-focal main
deb-src http://packages.icinga.com/ubuntu icinga-focal main

Save and close.

Next, update all available repositories and install the Icinga2 and Nagios Monitoring Plugins using the apt command below.

sudo apt update
sudo apt install icinga2 monitoring-plugins

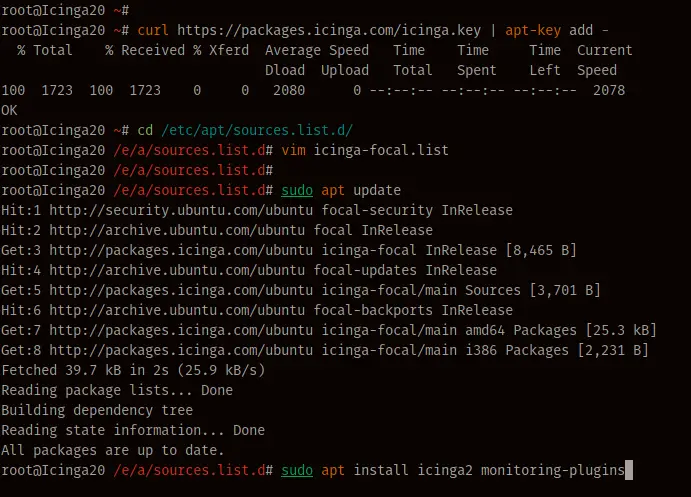

Install icinga2 packages and Nagios Monitoring Plugins

Once all installation is completed, start the Icinga2 service and add it to the system boot.

systemctl start icinga2
systemctl enable icinga2

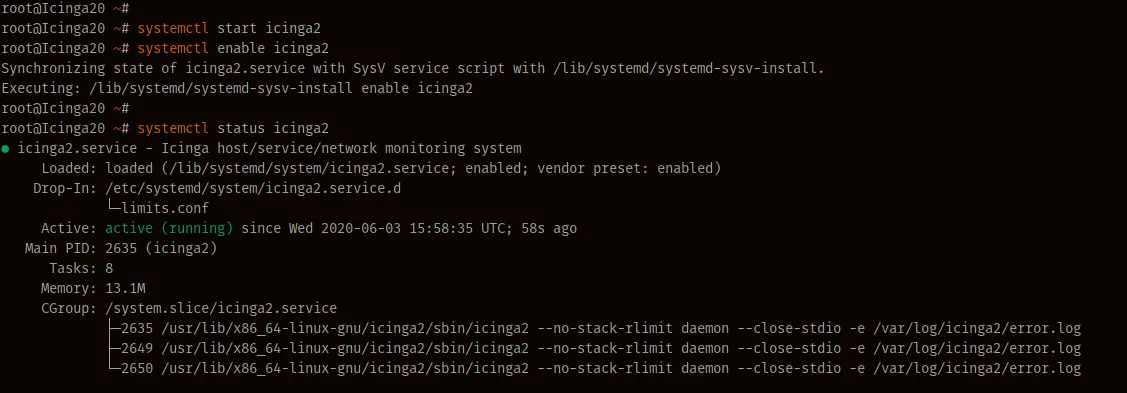

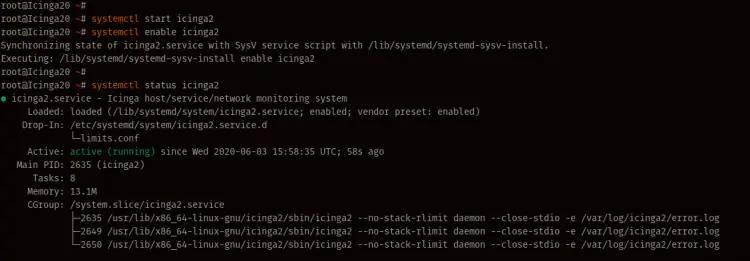

After that, verify the icinga2 service using the command below.

systemctl status icinga2

Below is the result you will get.

Start Icinga2 service

As a result, the icinga2 service is up and running on the Ubuntu 20.04 FocalFossa.

Step 2 - Instal and Configure MySQL Database Server

In this step, we will install the latest MySQL server to our Ubuntu 20.04 and set up the password for the default MySQL root user.

Install the MySQL server using the apt command below.

sudo apt install mysql-server mysql-client

After that, start the MySQL service and add it to the system boot.

systemctl start mysql
systemctl enable mysql

And the MySQL service is up and running.

Next, we will configure the password for the MySQL root user using the command-line tool 'mysql_secure_installation', which provided by the MySQL packages.

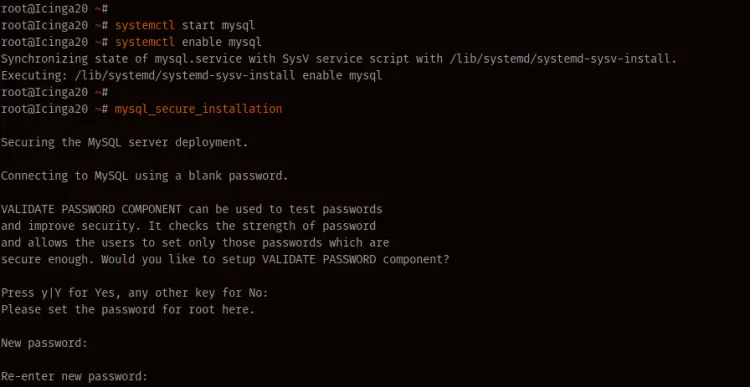

Run the 'mysql_secure_installation' command below.

mysql_secure_installation

Now you will be asked to configure a new password for the root user, type your strong password, and type 'Y' for other configurations.

Press y|Y for Yes, any other key for No:
Please set the password for root here.

New password:
Re-enter new password:

Remove anonymous users? (Press y|Y for Yes, any other key for No) : Y
Disallow root login remotely? (Press y|Y for Yes, any other key for No) : Y
Remove test database and access to it? (Press y|Y for Yes, any other key for No) : Y
Reload privilege tables now? (Press y|Y for Yes, any other key for No) : Y

As a result, the installation of MySQL server and configuration it's default root password has been completed.

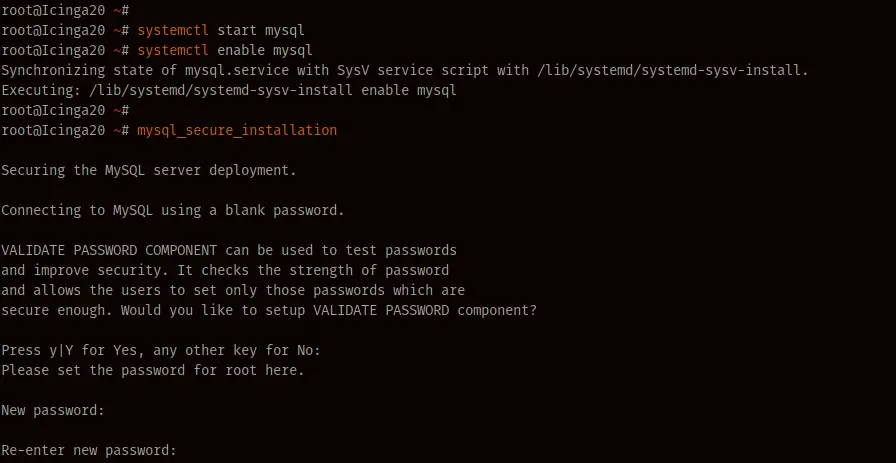

Setup MySQL root Password

Step 3 - Install and Configure Icinga2 MySQL Module

After installing the MySQL Server, we will install the icinga2 module for the MySQL support named 'icinga2-ido-mysql'.

Install the 'icinga2-ido-mysql' using the apt command below.

sudo apt install icinga2-ido-mysql

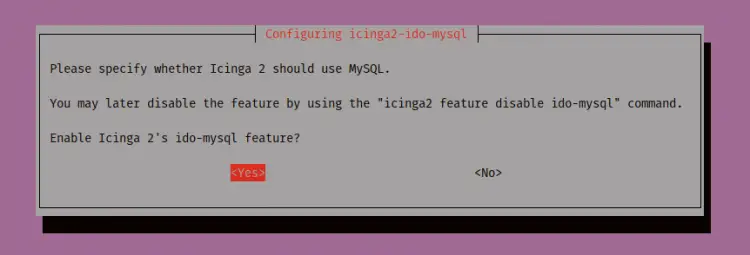

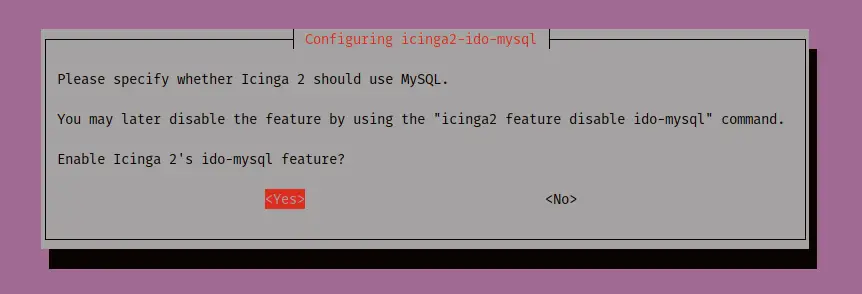

Now you will be asked to enable the icinga2 ido-mysql feature, choose 'Yes' to continue.

Install Icinga2 IDO MySQL

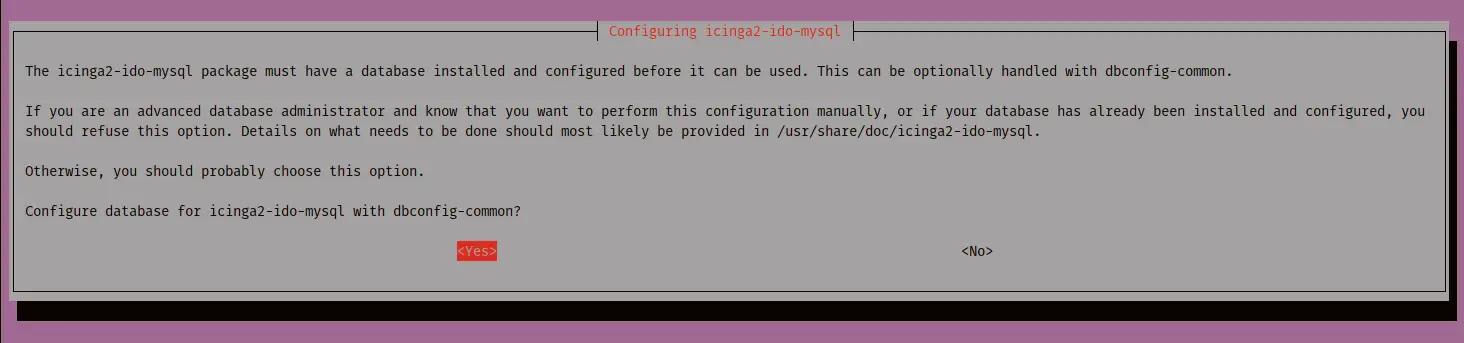

Configure the 'icinga2-ido-mysql' with the dbconfig-command, choose 'Yes' to continue.

Icinga2 IDO MySQL onfigiuration dbcommon-config

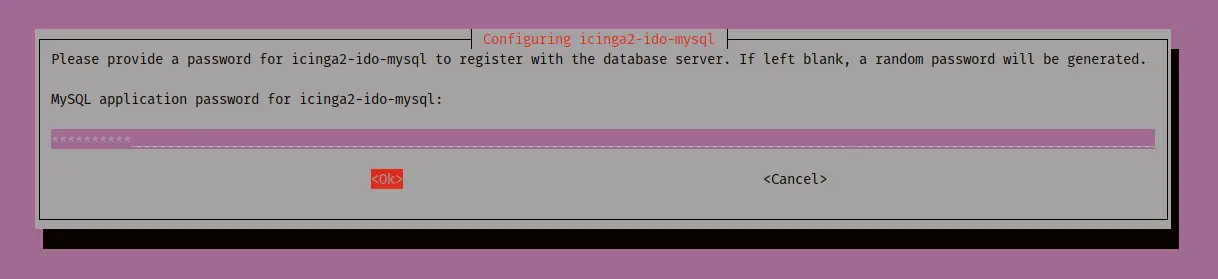

Type your password for the 'icinga2-ido-mysql'.

Setup Password Icinga IDO MySQL

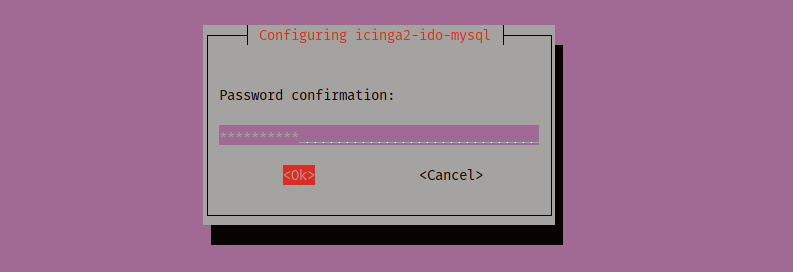

Repeat the password for the 'icinga2-ido-mysql'.

Setup Icinga2 IDO MySQL Password

As a result, the installation of the 'icinga2-ido-mysql' package has been completed, and the new MySQL user 'icinga2' has been created.

Next, to make the Icinga works with the new MySQL version, we will configure the MySQL user 'icinga2' with the MySQL native password authentication.

Log in to the MySQL shell using the command below.

mysql -u root -p

Now change the authentication of user '[email protected]' with the native MySQL authentication plugin using the following query.

ALTER USER [email protected] IDENTIFIED WITH mysql_native_password BY '[email protected]#$';
flush privileges;

Type 'exit' to log out from the MySQL shell, and the MySQL user 'icinga2' is now using the native authentication plugin.

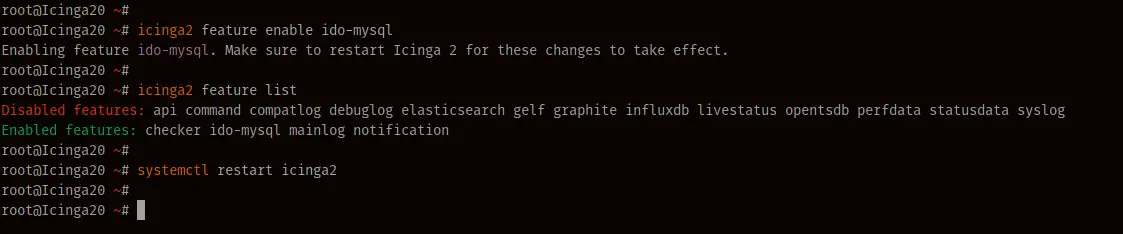

Next, enable the 'ido-mysql' feature and check all enabled plugins using the following command.

icinga2 feature enable ido-mysql
icinga2 feature list

And you will get the feature 'ido-mysql' is enabled, to apply the new configuration, restart the icinga2 service.

systemctl restart icinga2

And the installation and configuration of 'icinga2-ido-mysql' have been completed.

Enable Icinga2 IDO MySQL

Step 4 - Install Apache2 and PHP Packages

In this step, we will install the Apache and PHP packages for the icingaweb2. And we will use PHP 7.3 which available on the PPA repository because, at this time, the icingaweb2 is not yet supported with new version PHP 7.4.

First, install the 'python3-software-properties' package and add the PHP PPA repository using the following command.

sudo apt install python3-software-properties
sudo add-apt-repository ppa:ondrej/php

Next, install Apache and PHP packages using the apt command below.

sudo apt install apache2 php7.3 php7.3-common php7.3-gd php7.3-ldap php7.3-intl php7.3-curl libapache2-mod-php7.3 php7.3-mysql php7.3-pgsql php7.3-xml

Once all installation is completed, edit the 'php.ini' configuration using vim editor.

vim /etc/php/7.3/apache2/php.ini

Uncomment the 'date.timezone' option and type your timezone.

date.timezone = Asia/Singapore

Uncomment the 'cgi.fix_pathinfo' configuration and change the value to '0'.

cgi.fix_pathinfo=0

Save and close.

Next, restart the Apache2 service and add it to the system boot.

systemctl restart apache2
systemctl enable apache2

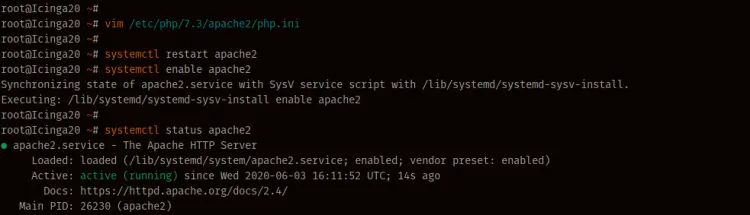

The Apache2 service is up and running, check it using the following command.

systemctl status apache2

Below is the result you will get.

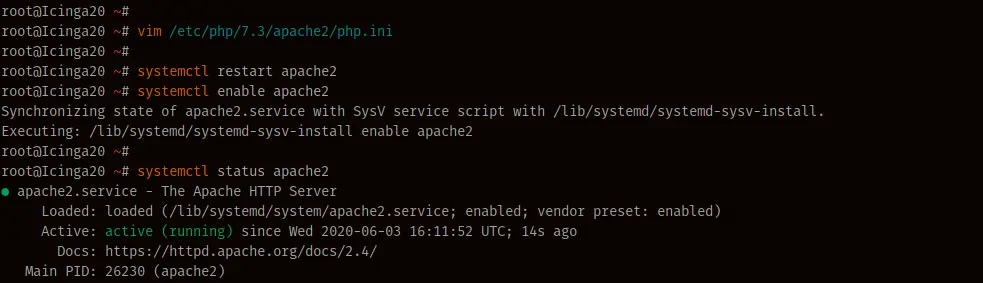

Install and Configure Apache and PHP Packages

As a result, the installation of Apache and PHP packages for icingaweb2 has been completed.

Step 5 - Install Icingaweb2

After installing Apache and PHP packages, we will install the icingaweb2 package and create a new MySQL database for the icingaweb2.

Install icingaweb2 and icingacli packages using the apt command.

sudo apt install icingaweb2 icingacli

Once all installation is completed, generate the icingaweb2 token for the installation using the command below.

icingacli setup token create

Below is the result you will get.

The newly generated setup token is: 9b871ead0a60c94f

Now copy the token code to your note, it will be used for the icingaweb2 installation.

Next, log in to the MySQL shell using the mysql command below.

mysql -u root -p

Now create a new database and user using the following queries.

create database icingaweb2;
create user [email protected] identified with mysql_native_password by "icingaweb2pass";
grant all privileges on icingaweb2.* to [email protected] with grant option;
flush privileges;

Type 'exit' to logout from the MySQL shell.

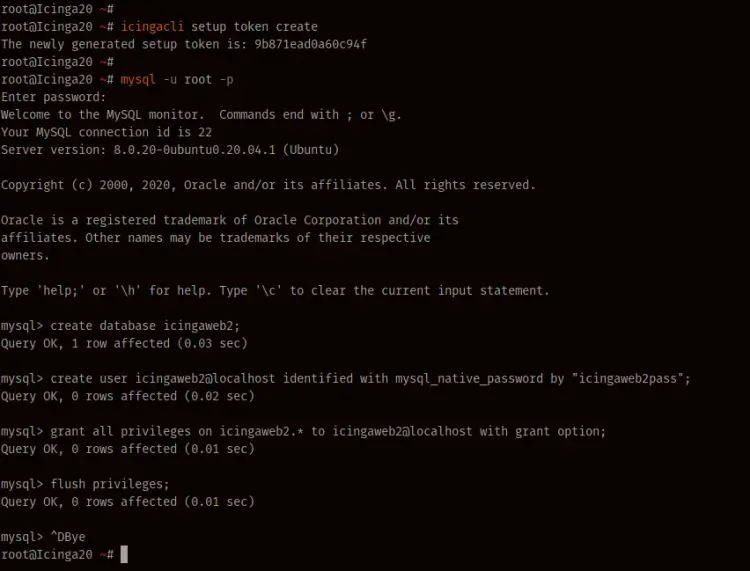

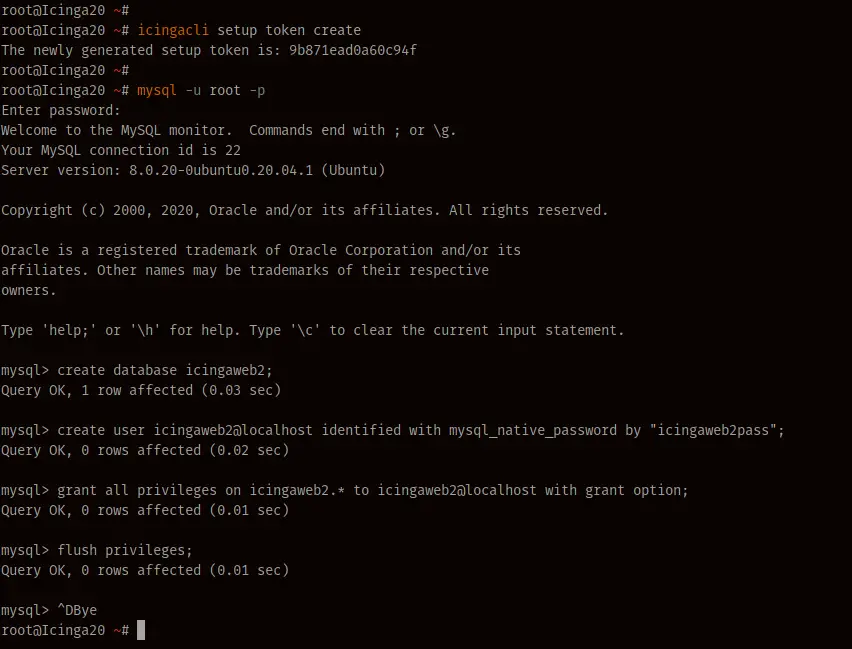

Install Icingaweb2 and create new database

As a result, the installation of icingaweb2 is completed, and the new database for icingaweb2 has been created

Step 6 - Icinga 2 and Icinga Web 2 Post-Installation

Open your web browser and type the server IP address as below. Replace the IP with your server IP.

http://10.5.5.20/icingaweb2/setup

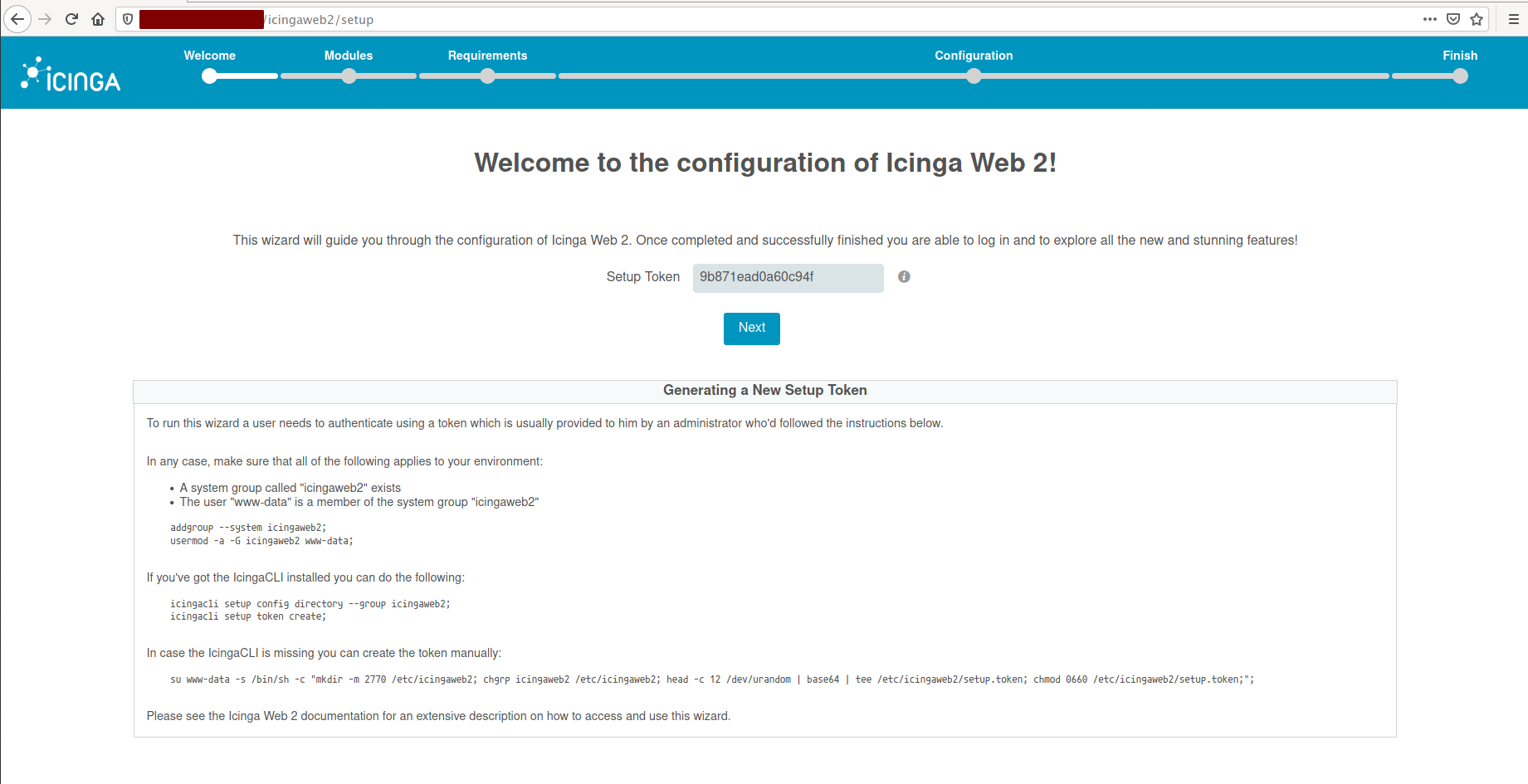

Paste the setup token code on the box and click the 'Next' button.

Icingaweb installation setup

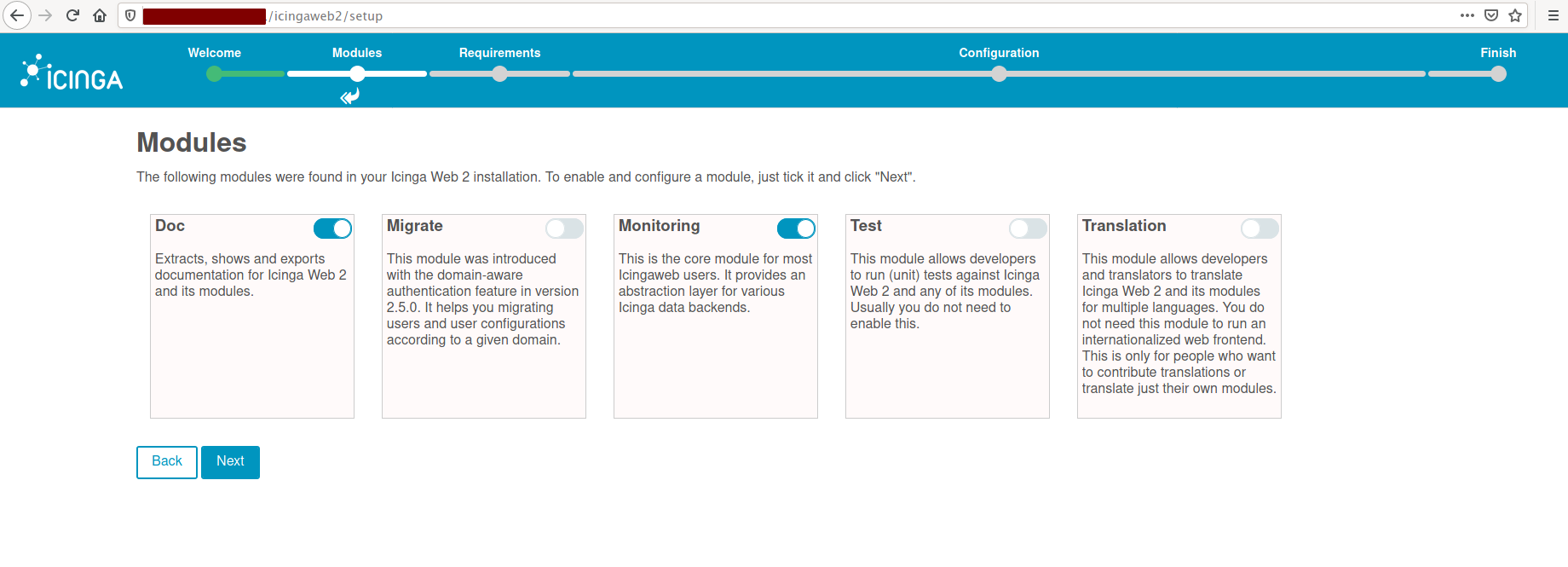

Now you need to choose the Icinga module for your installation, leave the 'Monitoring' module and click 'Next'.

Choose the installation

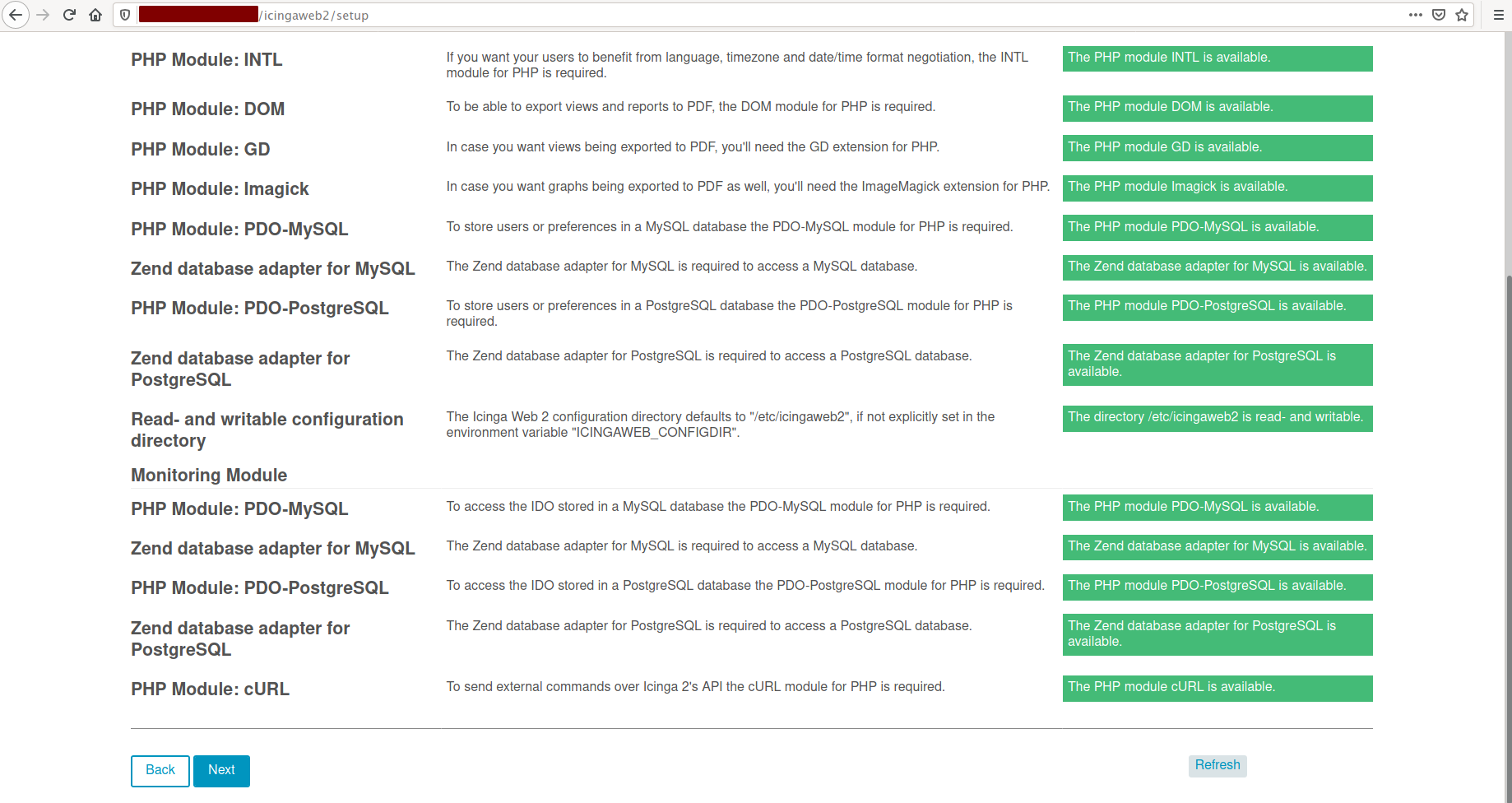

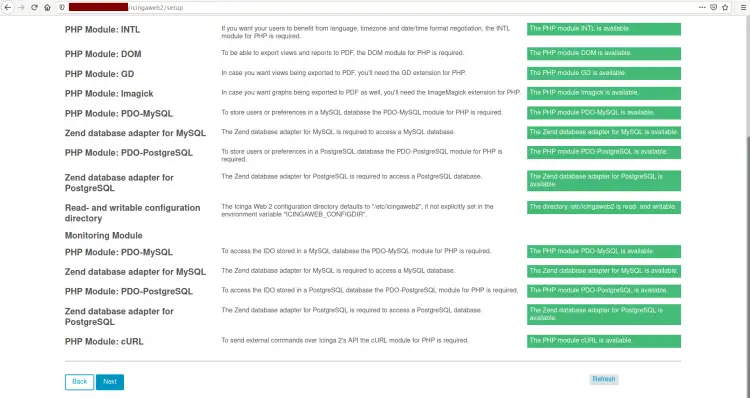

After that, the Icinga will check the environment for its installation. Ensure all modules needed is on the green status except for the 'PostgreSQL modules', then click 'Next'.

Checking Module Requirements

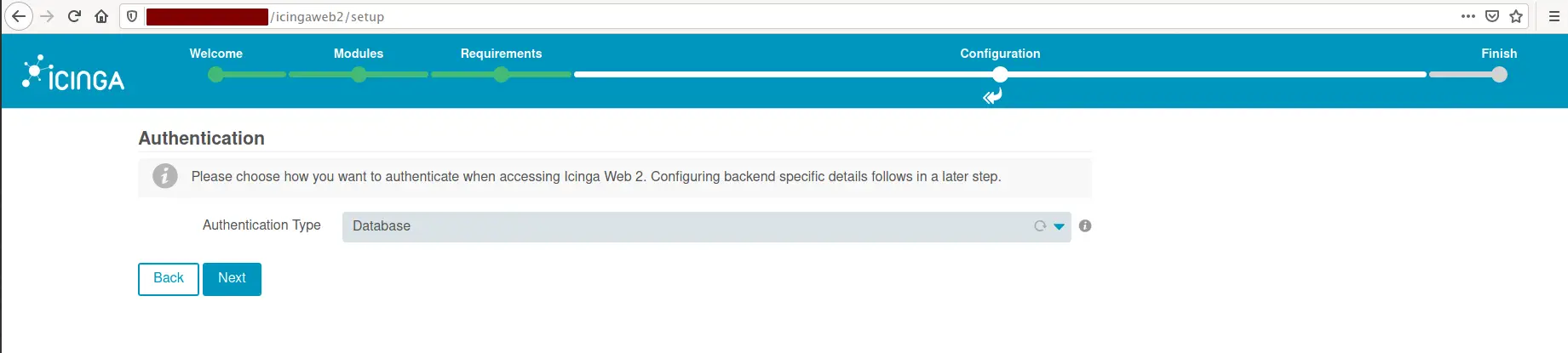

Now you need to choose Authentication for accessing the icingaweb2, choose 'Database' and click 'Next'.

Authentication Type Icingaweb2

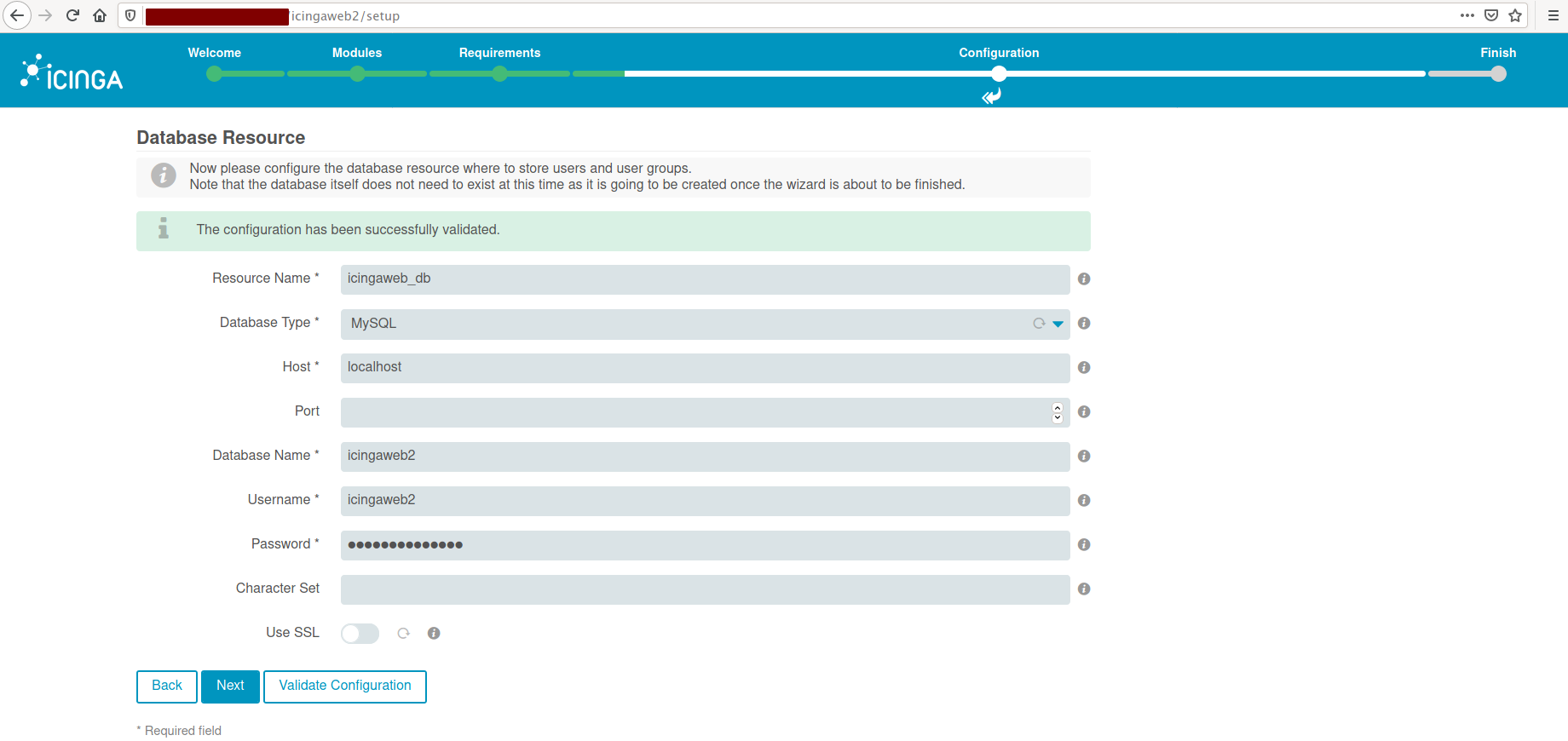

Type in all database details for the 'icingaweb2' and click 'Validate Configuration' to test. Once it's successful, click the 'Next' button.

Database Configuration for Icingaweb2

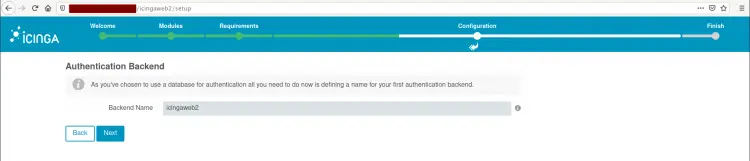

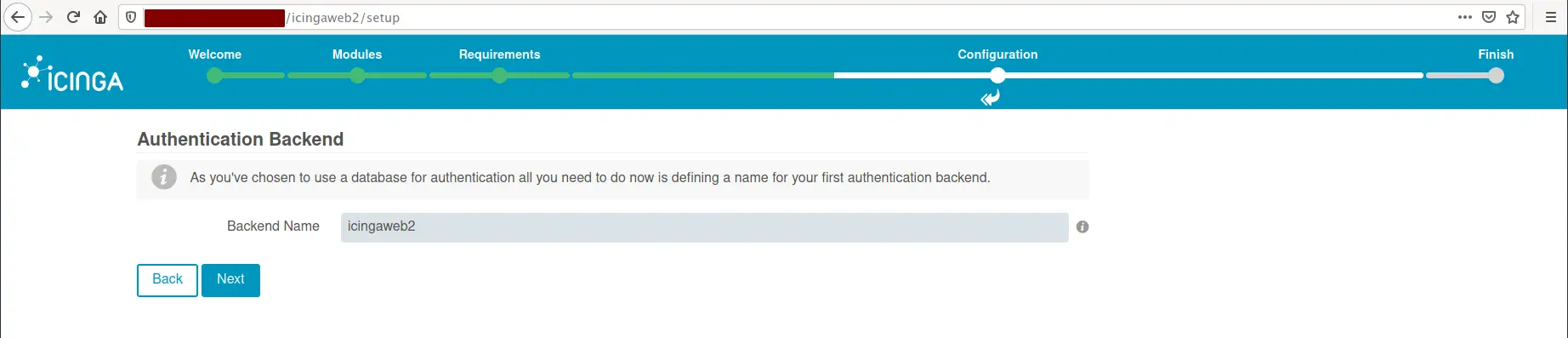

Now for the Backend Authentication, choose the 'icingaweb2' and click 'Next'.

Backend Authentication icingaweb2

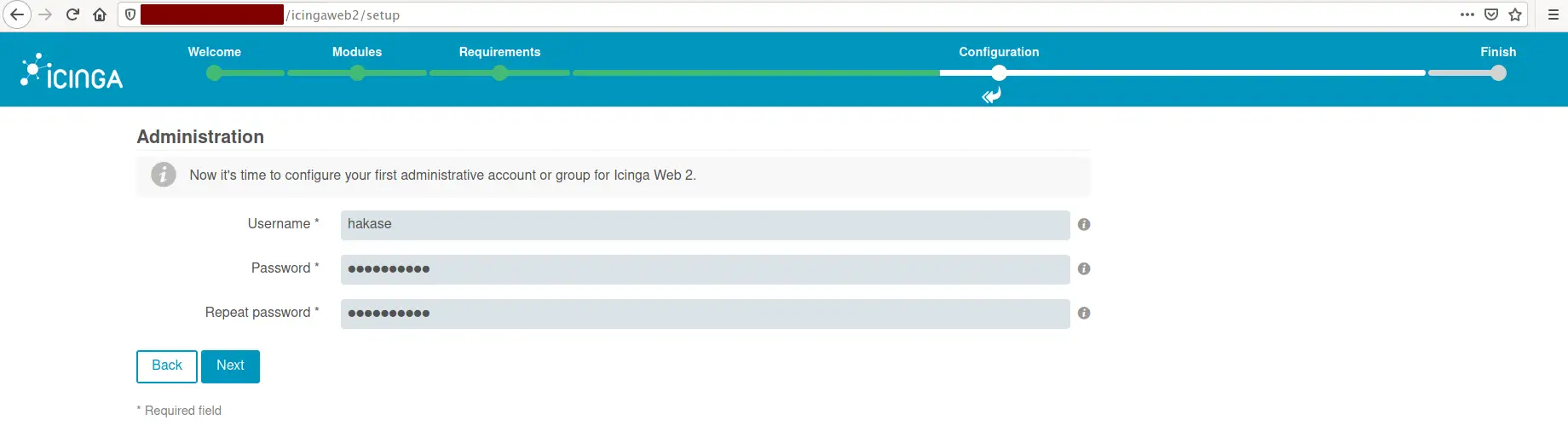

Type the admin and password for icingaweb2 and click 'Next' again.

Create Admin User for Icinga

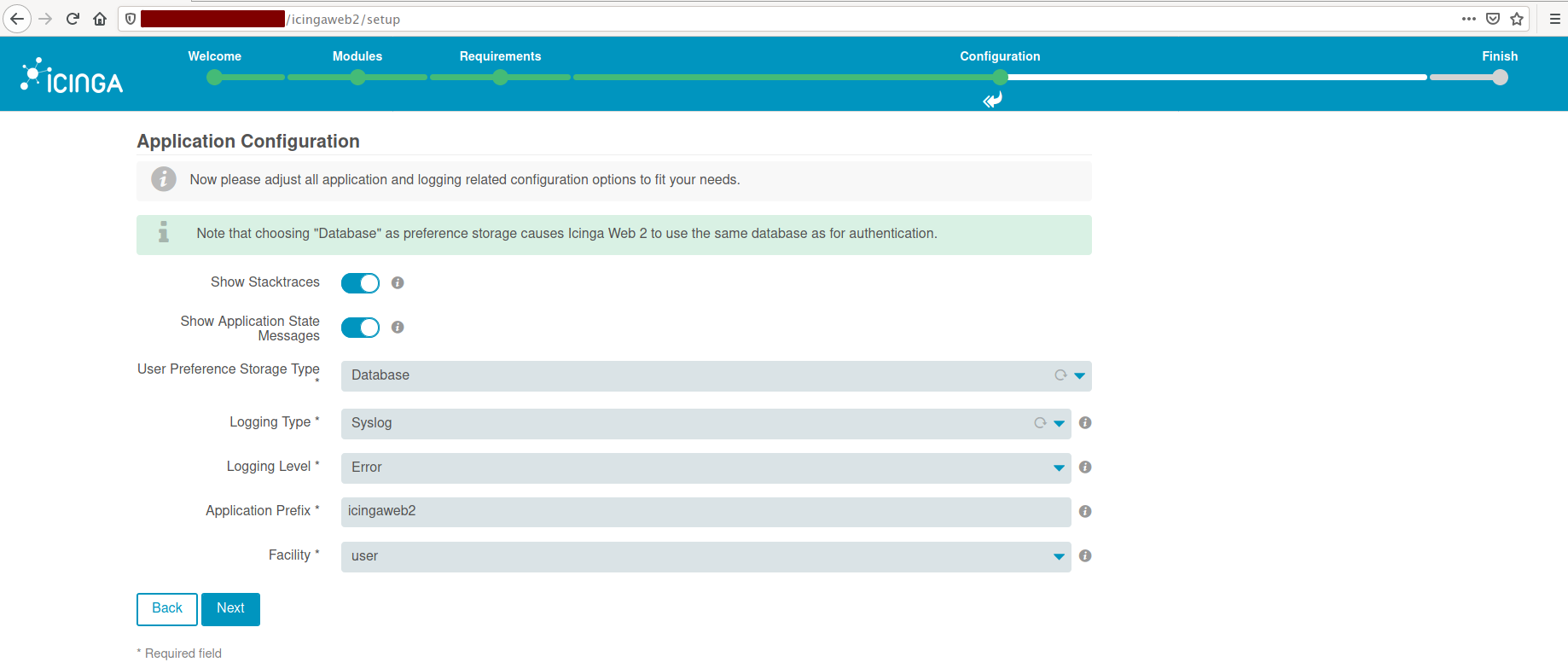

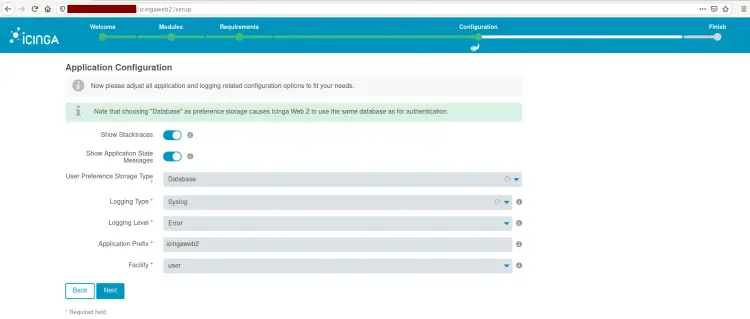

On the Application Configuration, leave it as default and click 'Next'.

Icinga Application Configuration

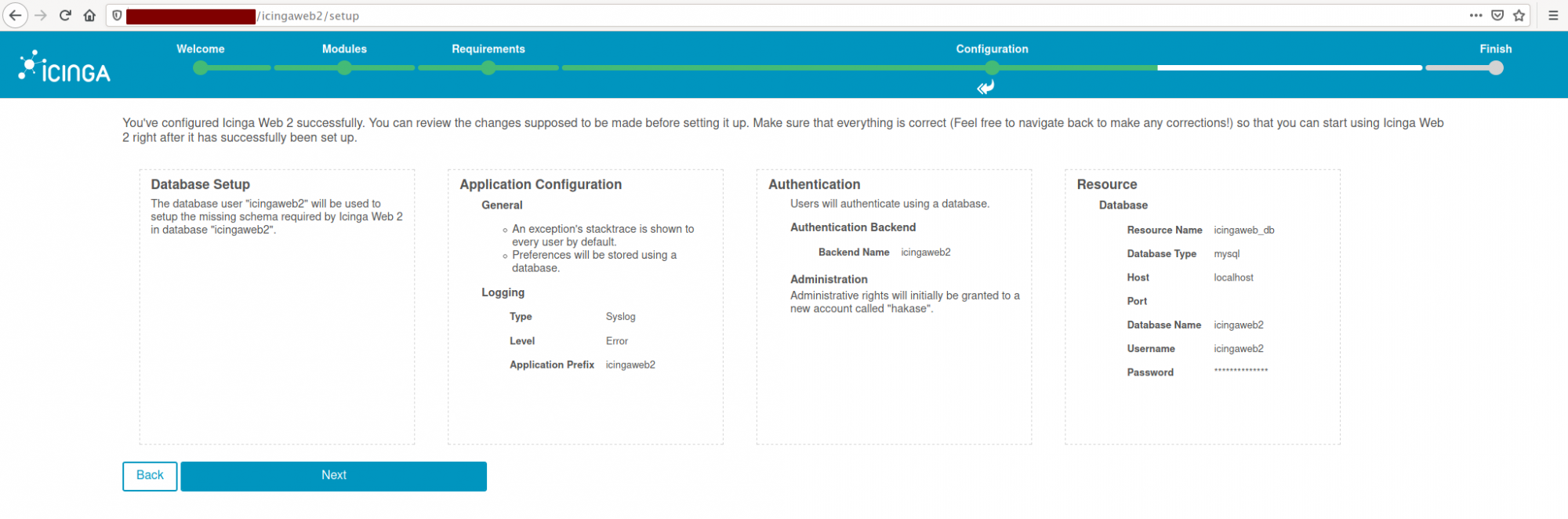

Confirm all configuration and click 'Next'.

Review icingaweb2 Configuration

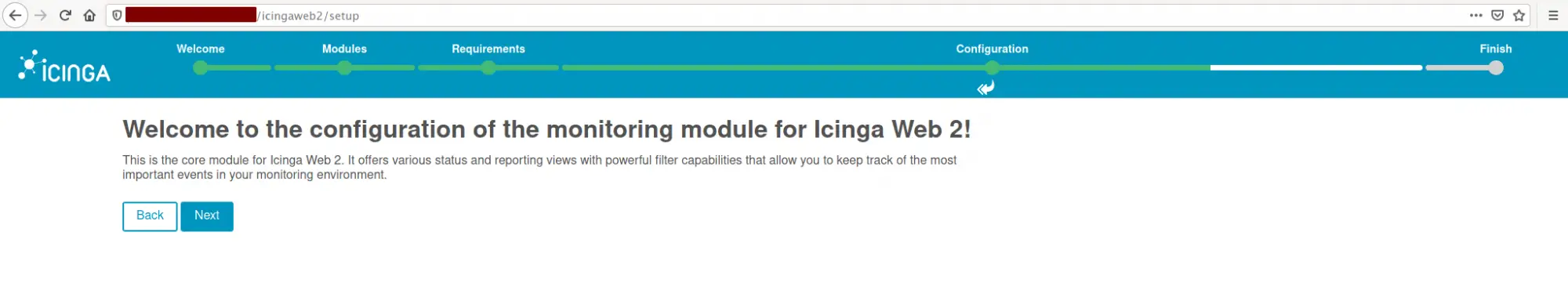

And you will get the welcome page to the icingaweb2. Click 'Next' again to configure the monitoring backend.

Monitroing Backend icinga2

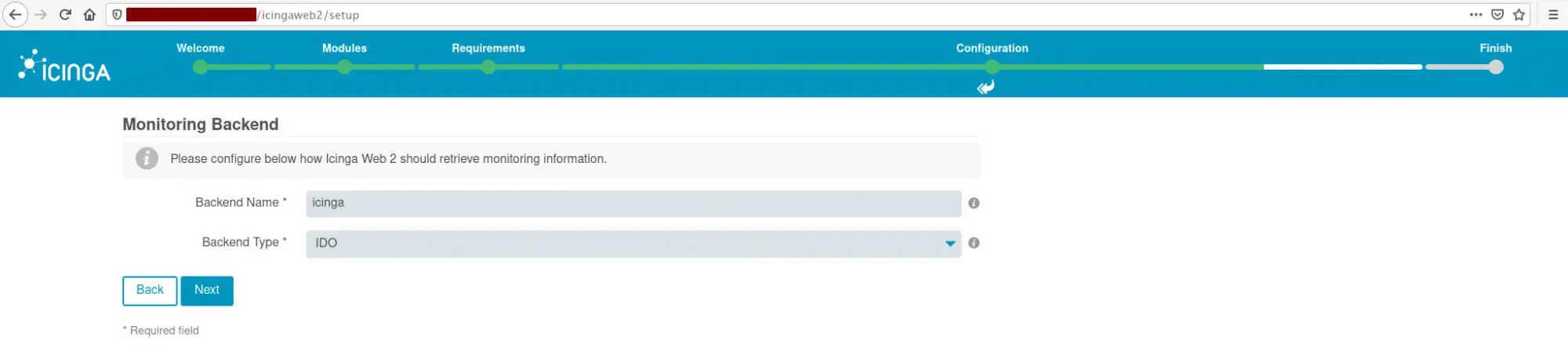

Set the Backend name as 'icinga2' with the type 'IDO', then click 'Next'.

Monitoring Backend Icingae2 IDO

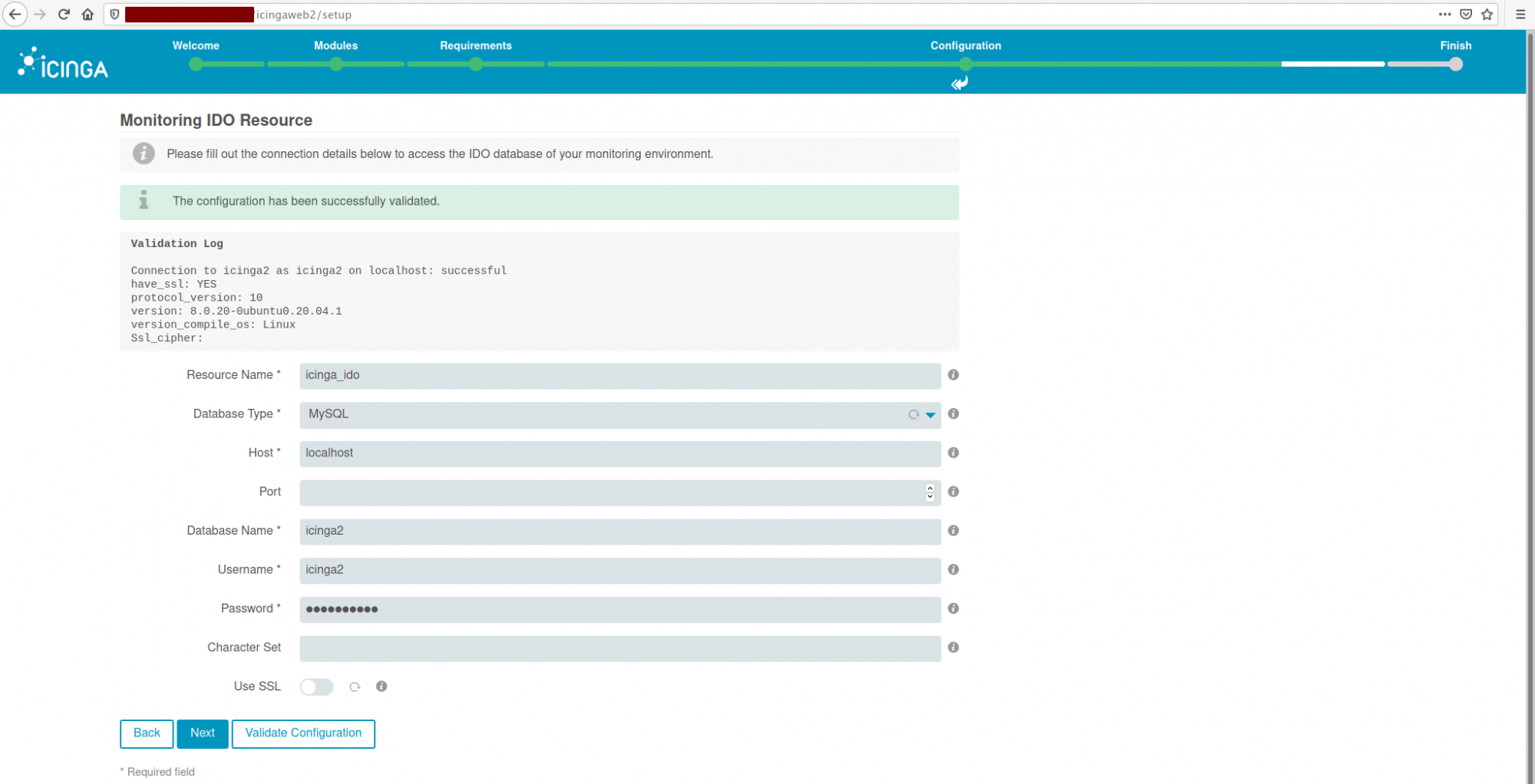

Now you need to configure MySQL IDO backend resource for the icinga2 application. Type details database for icinga2 and click 'Validate Configuration'. Once it's successful, click the 'Next' button.

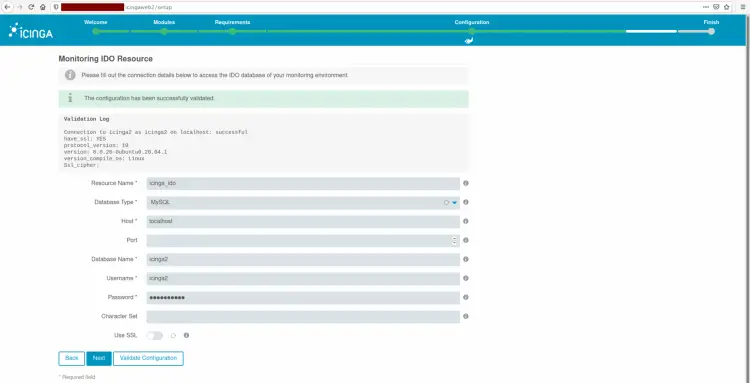

Icinga2 Database Configuration

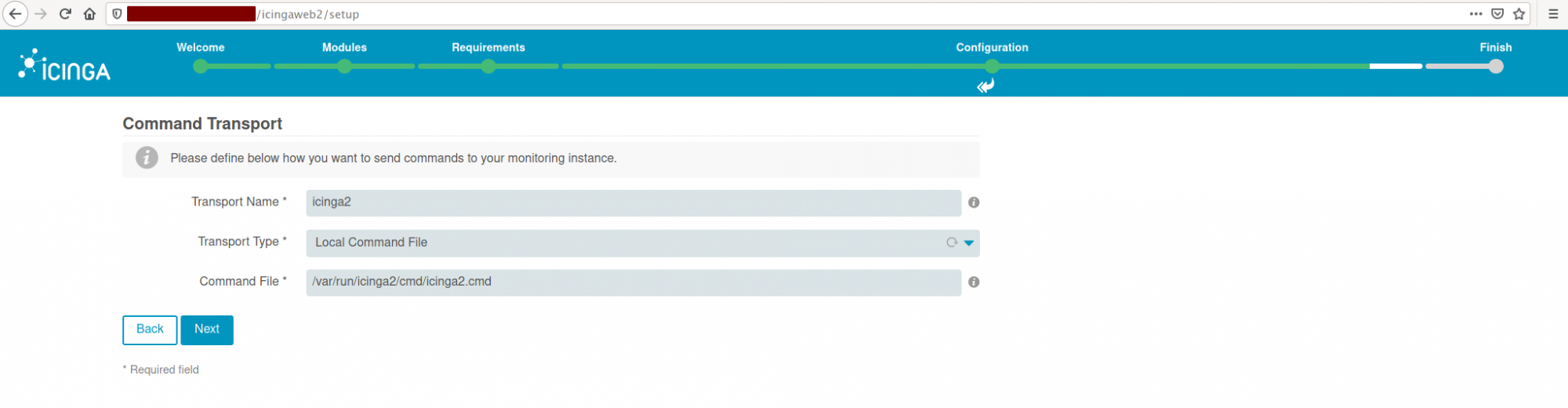

For the 'Command Transport', choose the 'Local Command File' and leave it as default. Then click 'Next'.

Setup Command Transport

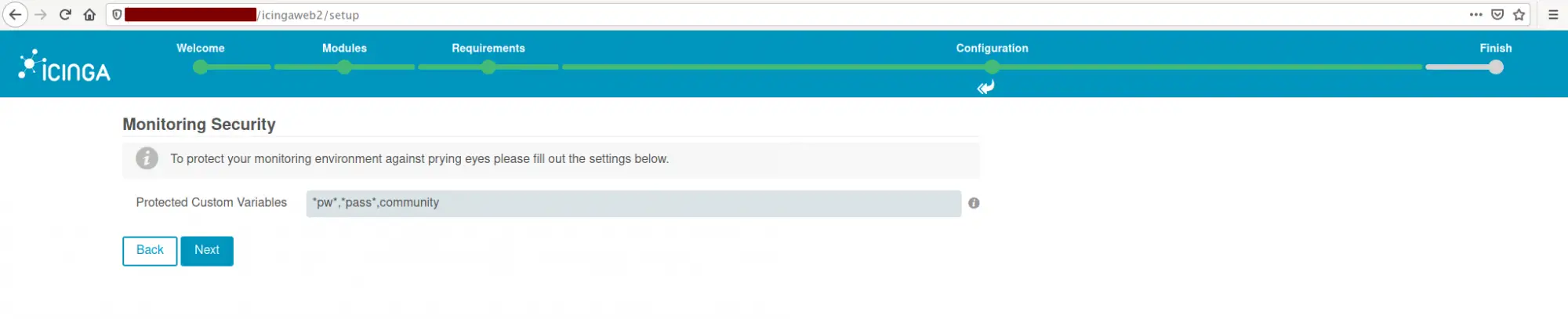

And for the Monitoring Security, leave it as default and click 'Next'.

Monitroing Security

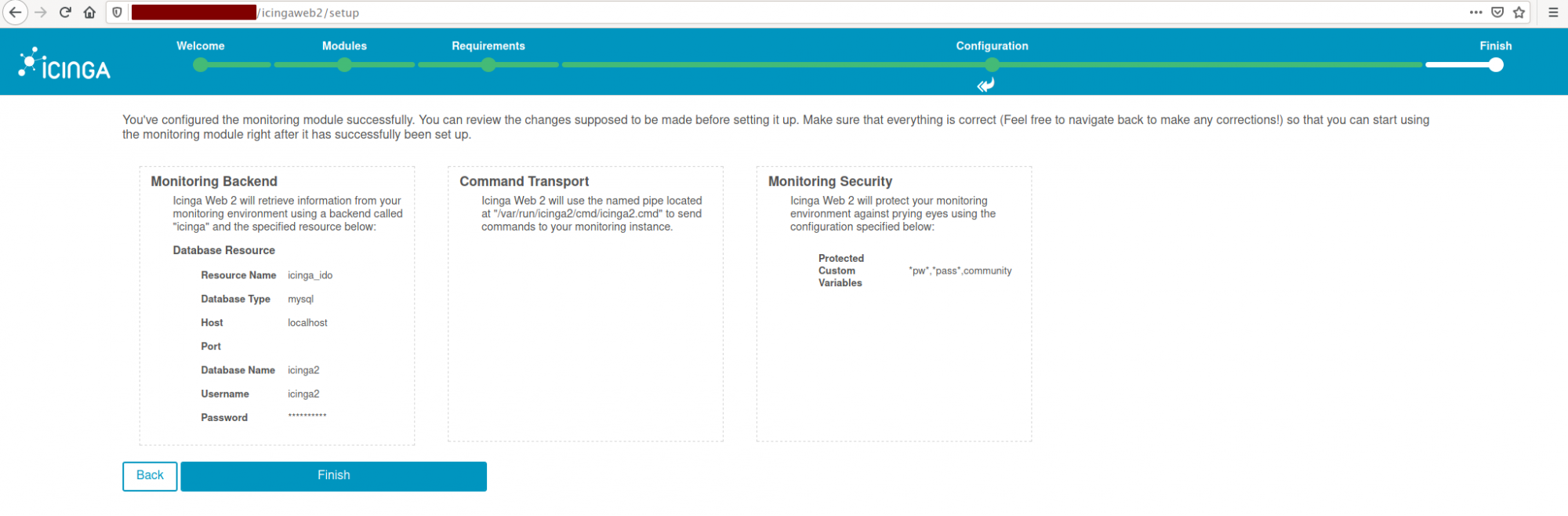

Confirm all configuration and click the 'Finish' button.

Review icinga Configuration

Now the Icinga 2 and Icinga web 2 installations are completed, click the 'Login to Icinga Web 2' button and you will be redirected to the login page.

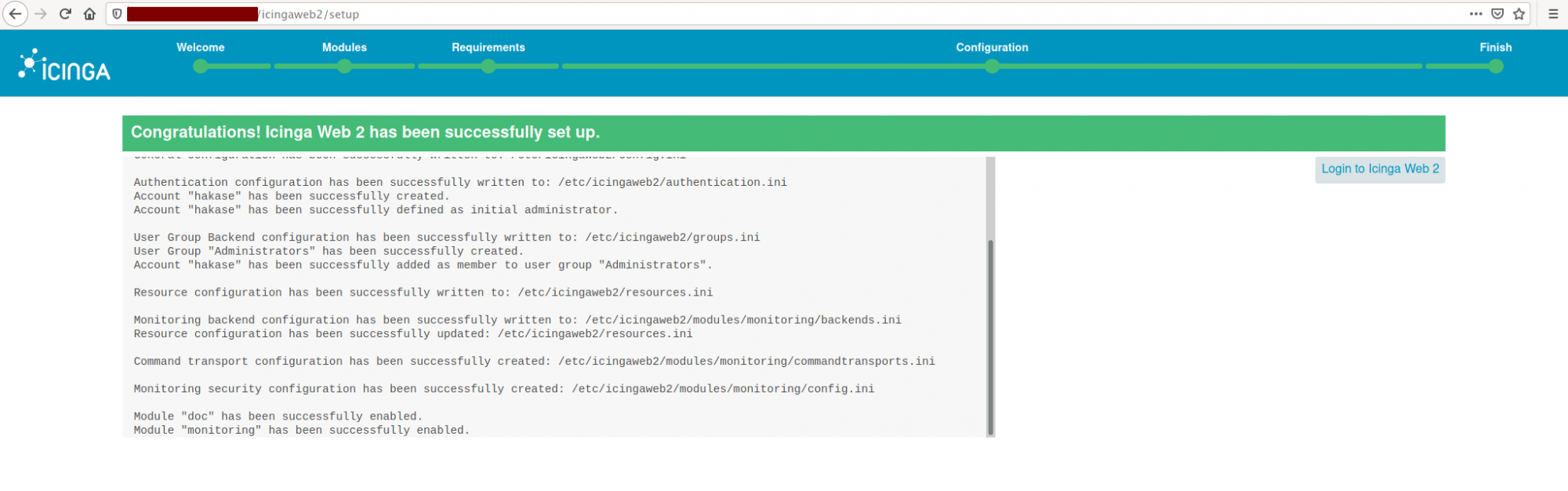

Icinga Installation is completed

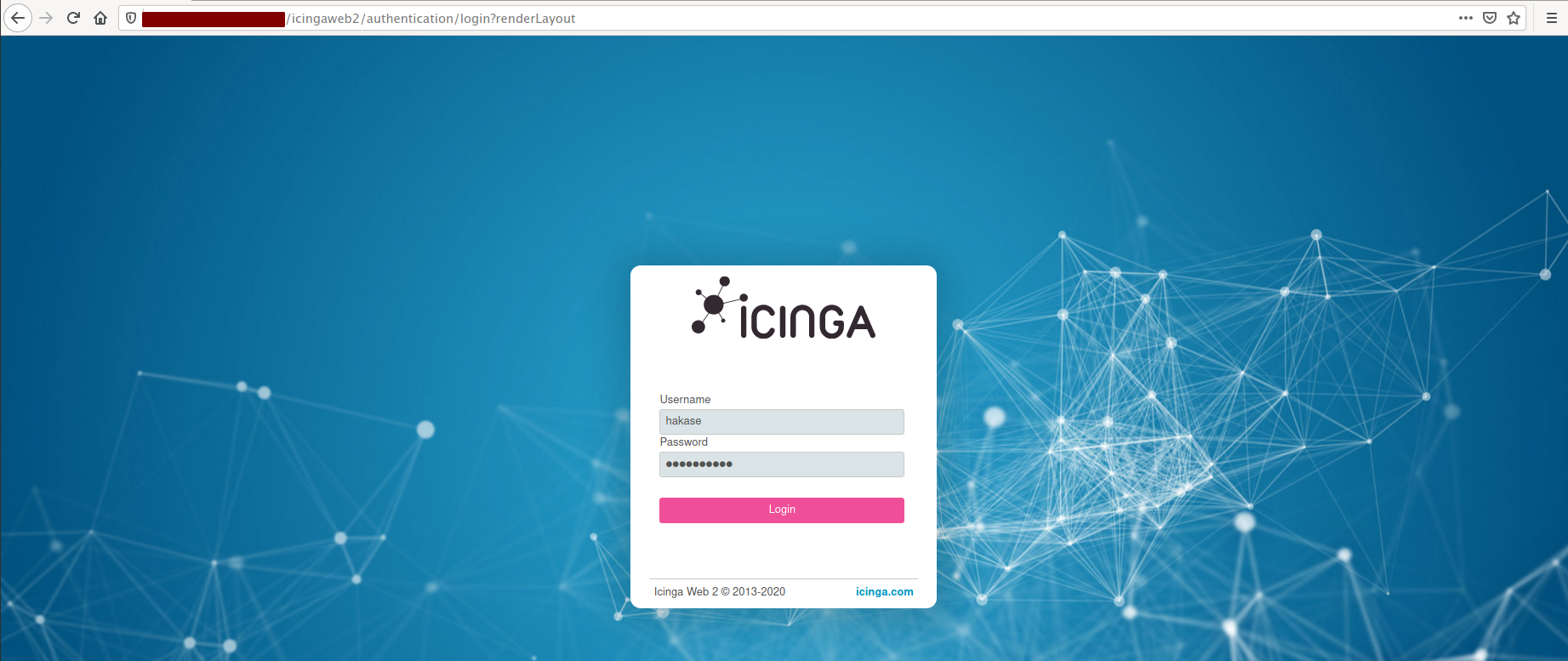

Type the user that you've configured at the top and click the 'Login' button.

Icinga Login Page

Type the user that you've configured at the top and click the 'Login' button.

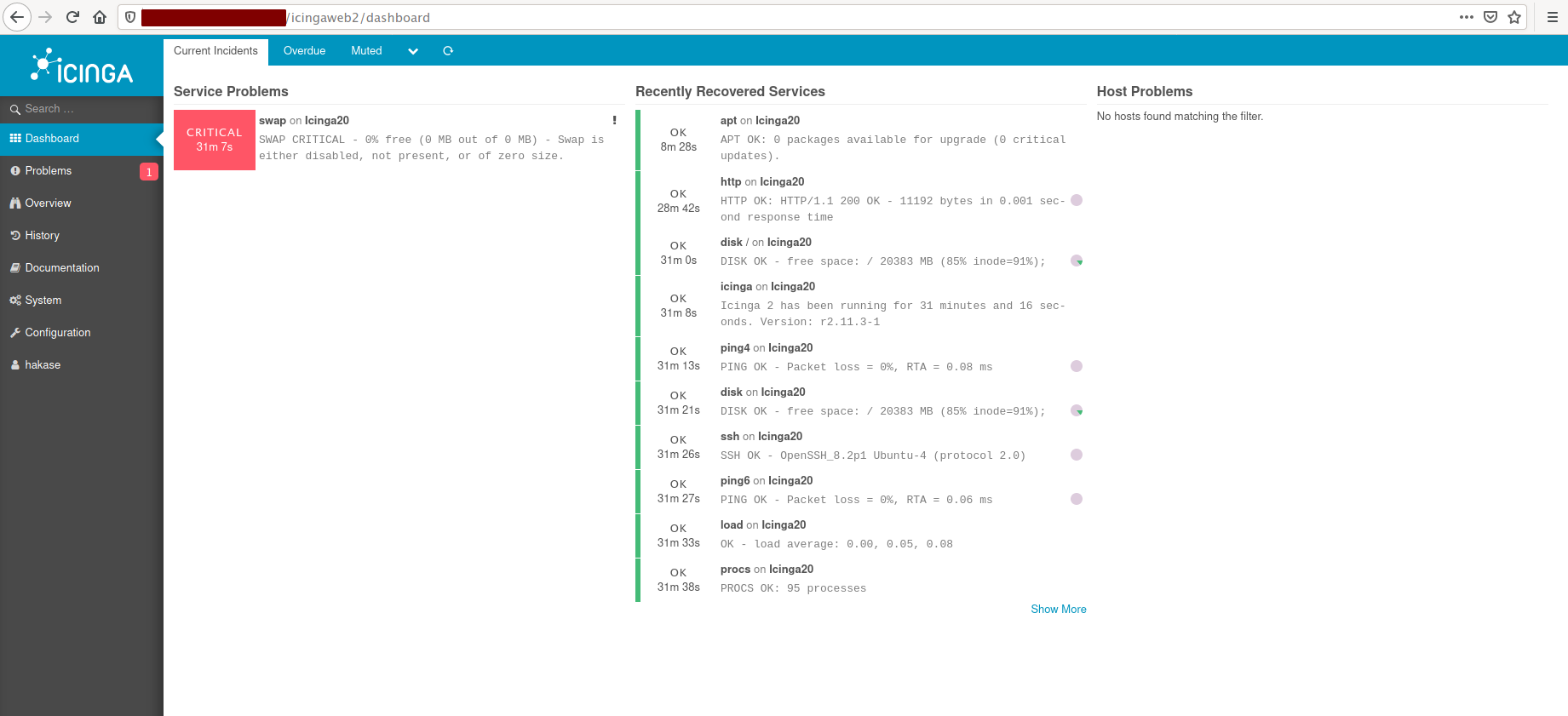

Icinga Dashboard

And finally, the installation and configuration of icinga2 and icingaweb2 on Ubuntu 20.04 server have been completed successfully.
