How To Install VMware Server On A Fedora 7 Desktop

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Last edited 06/01/2007

This tutorial provides step-by-step instructions on how to install VMware Server on a Fedora 7 desktop system. With VMware Server you can create and run guest operating systems ("virtual machines") such as Linux, Windows, FreeBSD, etc. under a host operating system. This has the benefit that you can run multiple operating systems on the same hardware which saves a lot of money, and you can move virtual machines from one VMware Server to the next one (or to a system that has the VMware Player which is also free).

Also, with VMware Server you can let your old Windows desktop (that you previously converted into a VMware virtual machine with VMware Converter, as described in this tutorial: http://www.howtoforge.com/vmware_converter_windows_linux) run under your Fedora desktop. This can be useful if you depend on some applications that exist for Windows only, or if you want to switch to Linux slowly.

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Installing Required Packages

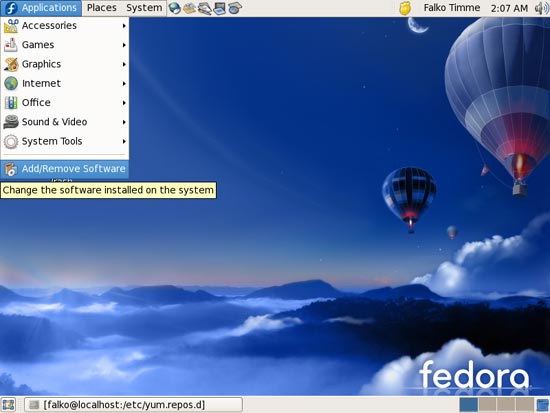

Before we install VMware Server, we must install some prerequisites. To install them, go to Applications > Add/Remove Software:

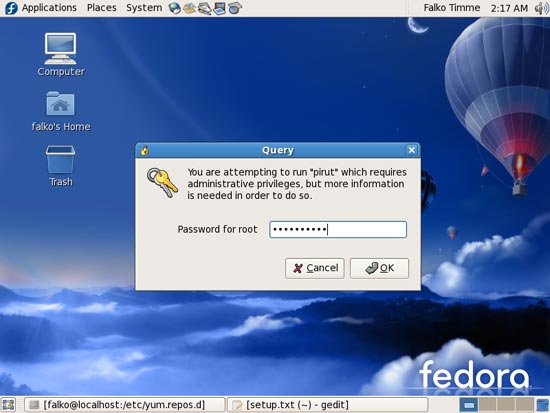

Type in the root password:

The Package Manager opens. Go to the Browse tab and select:

  • Development > Development Libraries
  • Development > Development Tools

Then go to the List tab. Select the following package for installation and click on Apply afterwards:

  • xinetd

The Package Manager will then resolve all dependencies, download the packages, maybe ask you to accept some unknown software keys (please accept them), and finally install the packages.



2 VMware Server

With VMware Server you can let your old Windows desktop (that you previously converted into a VMware virtual machine with VMware Converter, as described in this tutorial: http://www.howtoforge.com/vmware_converter_windows_linux) run under your Fedora desktop. This can be useful if you depend on some applications that exist for Windows only, or if you want to switch to Linux slowly.

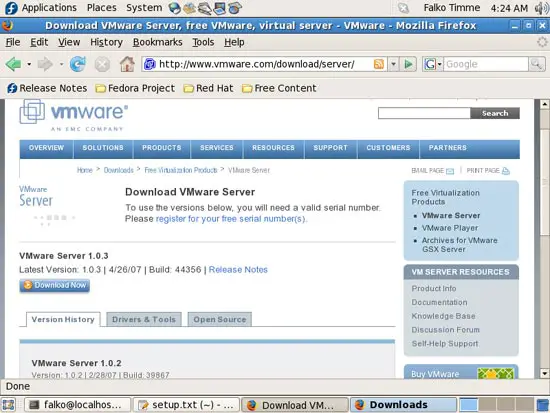

To download VMware Server, go to http://www.vmware.com/download/server/ and click on Download Now:

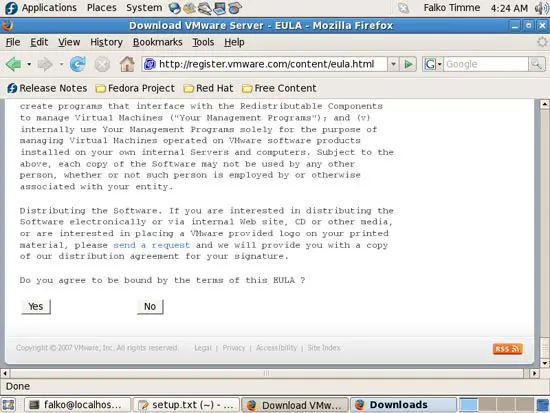

Accept the license agreement by clicking on Yes:

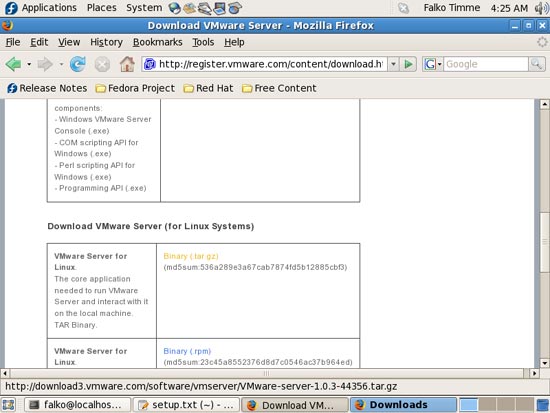

Then download the VMware Server for Linux .tar.gz file (not the .rpm file!), e.g. to /home/falko/Desktop:

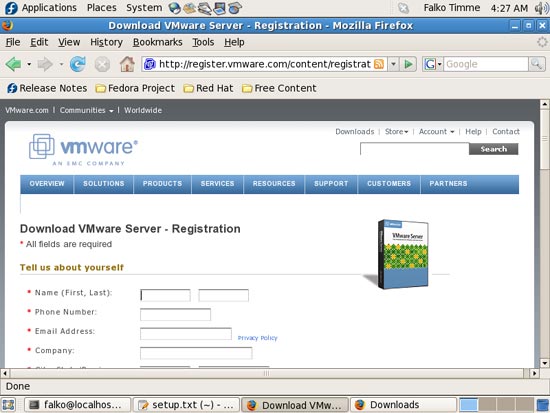

To get the serial number you need to run VMware Server, go to http://register.vmware.com/content/registration.html. Fill in your personal details. Afterwards you will get a page with a serial number for VMware Server. Write it down or print it out:

To install VMware Server, open a terminal and become root:

su

Then go to the location where you saved the VMware Server .tar.gz file, e.g. /home/falko/Desktop (replace falko with your own username!):

cd /home/falko/Desktop

Unpack the VMware Server .tar.gz file and run the installer:

tar xvfz VMware-server-*.tar.gz
cd vmware-server-distrib
./vmware-install.pl

The installer will ask you a lot of questions. You can always accept the default values simply by hitting <ENTER>.

It is possible that the installation aborts with this failure message:

Building the vmmon module.

Using 2.6.x kernel build system.
make: Entering directory `/tmp/vmware-config2/vmmon-only'
make -C /lib/modules/2.6.21-1.3194.fc7/build/include/.. SUBDIRS=$PWD SRCROOT=$PWD/. modules
make[1]: Entering directory `/usr/src/kernels/2.6.21-1.3194.fc7-i686'
  CC [M]  /tmp/vmware-config2/vmmon-only/linux/driver.o
In file included from /tmp/vmware-config2/vmmon-only/linux/driver.c:80:
/tmp/vmware-config2/vmmon-only/./include/compat_kernel.h:21: error: expected declaration specifiers
 or â€˜...’ before â€˜compat_exit’
/tmp/vmware-config2/vmmon-only/./include/compat_kernel.h:21: error: expected declaration specifiers
 or â€˜...’ before â€˜exit_code’
/tmp/vmware-config2/vmmon-only/./include/compat_kernel.h:21: warning: type defaults to â€˜int’
 in declaration of â€˜_syscall1’
make[2]: *** [/tmp/vmware-config2/vmmon-only/linux/driver.o] Error 1
make[1]: *** [_module_/tmp/vmware-config2/vmmon-only] Error 2
make[1]: Leaving directory `/usr/src/kernels/2.6.21-1.3194.fc7-i686'
make: *** [vmmon.ko] Error 2
make: Leaving directory `/tmp/vmware-config2/vmmon-only'
Unable to build the vmmon module.

For more information on how to troubleshoot module-related problems, please
visit our Web site at "http://www.vmware.com/download/modules/modules.html" and
"http://www.vmware.com/support/reference/linux/prebuilt_modules_linux.html".

Execution aborted.

This happens because VMware Server isn't ready for a 2.6.21 kernel yet (the default kernel in Fedora 7 is 2.6.21.3). Therefore, we must patch VMware Server a little bit. This can be done as follows:

wget http://knihovny.cvut.cz/ftp/pub/vmware/vmware-any-any-update110.tar.gz
tar xvfz vmware-any-any-update110.tar.gz
cd vmware-any-any-update110
./runme.pl

The ./runme.pl command will continue the VMware Server installation. This time it should succeed, and again you can accept all default values. When it asks you

In which directory do you want to keep your virtual machine files?
[/var/lib/vmware/Virtual Machines]

you can either accept the default value or specify a location that has enough free space to store your virtual machines.

At the end of the installation, you will be asked to enter a serial number:

Please enter your 20-character serial number.

Type XXXXX-XXXXX-XXXXX-XXXXX or 'Enter' to cancel:

Fill in your serial number for VMware Server.

After the successful installation, you can delete the VMware Server download file and the installation directory:

cd /home/falko/Desktop
rm -fr vmware-server-distrib
rm -f VMware-server-*.tar.gz

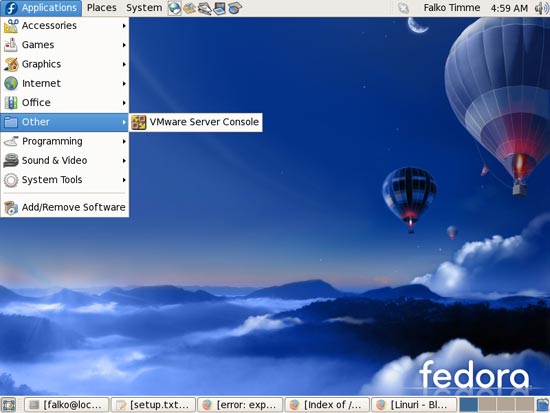

You will now find VMware Server under Applications > Other:

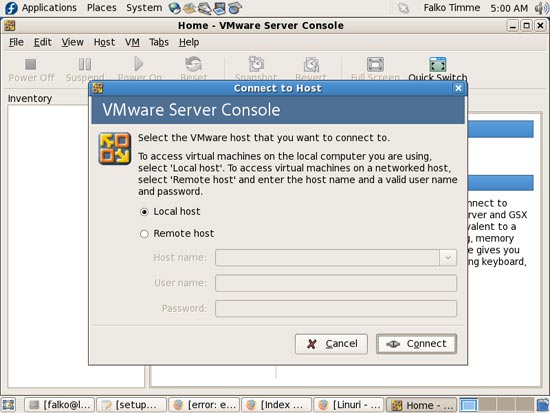

When you start it, select Local host:

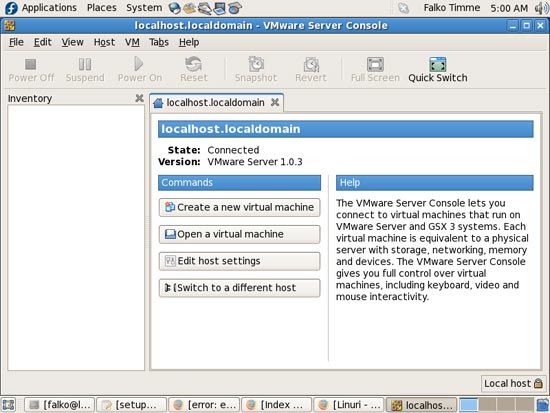

Afterwards, you can create virtual machines (or import your virtual Windows machine that you created with VMware Converter):



3 Links


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by derickson (registered user) on Wed, 2008-02-20 16:39.

This works great for Fedora 8 also.  The one change is to use:
[code]
wget http://knihovny.cvut.cz/ftp/pub/vmware/vmware-any-any-update115.tar.gz
tar xvfz vmware-any-any-update115.tar.gz
cd vmware-any-any-update115
./runme.pl
[/code]
Thanks again.

Submitted by charles (registered user) on Wed, 2007-07-25 16:27.

vmware-any-any-update110.tar.gz doesn't exist anymore. However, the author has made available vmware-any-any-update111.tar.gz and vmware-any-any-update112.tar.gz at the same location.

I have F7 kernel 2.6.22.1-27.fc7 and it works with update112

Submitted by sj200449 (registered user) on Tue, 2007-09-04 11:31.

Couple of points I found :

Scenario - I have fedora core 7 with xen installed before I start cause I want to use both virtualisation methods :

 2.6.20-2931.fc7xen #1 SMP Mon Aug 13 10:12:37 EDT 2007 i686 i686 i386 GNU/Linux



1. I downloaded  vmware-any-any-update113.tar from the site in the procedure

2. I found to answer the question regarding where the kernel header files were I also needed


    to :  yum install kernel-xen-devel.i686

Then when running any-any / runme.pl I found it had defaulted to  the correct location , namely:

 What is the location of the directory of C header files that match your running
kernel? [/lib/modules/2.6.20-2931.fc7xen/build/include]



Other than this the above procedure worked flawlessly and was extremely helpful, thanks !

Edit :  Spoke to soon , the vmware although installable with this didnt run correctly through the Xen kernel so I resorted to booting the now xen kernel and installing the correct kernel-devel as above /sigh

Submitted by sj200449 (registered user) on Sat, 2007-10-20 07:35.

VMware Server 1.0.4 build-56528 is now available and it appears to just install without the "any-any" step being required - although I had already done that when I installed 1.0.3 - the vmware-iinstall.pl didnt fail.



-S

Submitted by belleto (registered user) on Mon, 2007-06-25 17:53.
The rpm from vmware.com doesn't work fine. The howto is good, thanks.
Submitted by teabone (registered user) on Thu, 2007-06-14 13:01.

Why do you insist on using the tarball instead of the RPM? The RPM works perfectly well here...

 Good howto anyway!
