Serving CGI Scripts With Nginx On Fedora 18

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Follow me on Twitter
Last edited 02/05/2013

This tutorial shows how you can serve CGI scripts (Perl scripts) with nginx on Fedora 18. While nginx itself does not serve CGI, there are several ways to work around this. I will outline two solutions: the first is to proxy requests for CGI scripts to Thttpd, a small web server that has CGI support, while the second solution uses a CGI wrapper to serve CGI scripts.

I do not issue any guarantee that this will work for you!



1 Preliminary Note

I'm using the website www.example.com here with the document root /var/www/www.example.com/web/; the vhost configuration is located in /etc/nginx/conf.d/www.example.com.vhost.



2 Using Thttpd

In this chapter I am going to describe how to configure nginx to proxy requests for CGI scripts (extensions .cgi or .pl) to Thttpd. I will configure Thttpd to run on port 8000.

First we install Thttpd. There is a Thttpd package for Fedora 18, but the nginx ThttpdCGI page says that Thttpd should be patched - therefore we download the src.rpm package for Fedora 18, patch it and build a new rpm package from it.

We need to install the tools that are required to build a new rpm package:

yum groupinstall 'Development Tools'

Install yum-utils (the package contains the yumdownloader tool which allows us to download a src.rpm):

yum install yum-utils

Next we download the Thttpd src.rpm package for Fedora 18:

cd /usr/src
yumdownloader --source thttpd

ls -l

[root@server1 src]# ls -l
total 164
drwxr-xr-x. 2 root root   4096 Feb  3  2012 debug
drwxr-xr-x. 3 root root   4096 Jun  4 18:21 kernels
-rw-r--r--  1 root root 155690 Mar 28 03:21 thttpd-2.25b-28.fc18.src.rpm
[root@server1 src]#

rpm -ivh thttpd-2.25b-28.fc18.src.rpm

You can ignore the following warnings:

[root@server1 src]# rpm -ivh thttpd-2.25b-28.fc18.src.rpm
   1:thttpd                 warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
warning: user mockbuild does not exist - using root
warning: group mockbuild does not exist - using root
########################################### [100%]
[root@server1 src]#

Now we download the patch to the /root/rpmbuild/SOURCES/ directory and modify the /root/rpmbuild/SPECS/thttpd.spec file accordingly:

cd /root/rpmbuild/SOURCES/
wget -O thttpd-2.25b-ipreal.patch http://www.danielclemente.com/amarok/ip_real.txt
cd /root/rpmbuild/SPECS/
vi thttpd.spec

Add the lines Patch3: thttpd-2.25b-ipreal.patch and %patch3 -p1 -b .ipreal:

[...]
Patch0: thttpd-2.25b-CVE-2005-3124.patch
Patch1: thttpd-2.25b-fixes.patch
Patch2: thttpd-2.25b-getline.patch
Patch3: thttpd-2.25b-ipreal.patch
[...]
%prep
%setup -q
%patch0 -p1 -b .CVE-2005-3124
%patch1 -p1 -b .fixes
%patch2 -p1 -b .getline
%patch3 -p1 -b .ipreal
[...]

Now we build our Thttpd rpm package as follows:

rpmbuild -ba thttpd.spec

Our Thttpd rpm package is created in /root/rpmbuild/RPMS/x86_64 (/root/rpmbuild/RPMS/i386 if you are on an i386 system), so we go there:

cd /root/rpmbuild/RPMS/x86_64
ls -l

[root@server1 x86_64]# ls -l
total 224
-rw-r--r-- 1 root root  69881 Sep  3 23:17 thttpd-2.25b-28.fc18.x86_64.rpm
-rw-r--r-- 1 root root 151685 Sep  3 23:17 thttpd-debuginfo-2.25b-28.fc18.x86_64.rpm
[root@server1 x86_64]#

Install the Thttpd package as follows:

rpm -ivh thttpd-2.25b-28.fc18.x86_64.rpm

Then we make a backup of the original /etc/thttpd.conf file and create a new one as follows:

mv /etc/thttpd.conf /etc/thttpd.conf_orig
vi /etc/thttpd.conf

# BEWARE : No empty lines are allowed!
# This section overrides defaults
# This section _documents_ defaults in effect
# port=80
# nosymlink         # default = !chroot
# novhost
# nocgipat
# nothrottles
# host=0.0.0.0
# charset=iso-8859-1
host=127.0.0.1
port=8000
user=thttpd
logfile=/var/log/thttpd.log
pidfile=/var/run/thttpd.pid
dir=/var/www
cgipat=**.cgi|**.pl

This will make Thttpd listen on port 8000 on 127.0.0.1; its document root is /var/www.

Create the system startup links for Thttpd...

systemctl enable thttpd.service

... and start it:

systemctl start thttpd.service

Next create /etc/nginx/proxy.conf:

vi /etc/nginx/proxy.conf

proxy_redirect          off;
proxy_set_header        Host            $host;
proxy_set_header        X-Real-IP       $remote_addr;
proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
client_max_body_size    10m;
client_body_buffer_size 128k;
proxy_connect_timeout   90;
proxy_send_timeout      90;
proxy_read_timeout      90;

Now open your vhost configuration file...

vi /etc/nginx/conf.d/www.example.com.vhost

... and add a location /cgi-bin {} section to the server {} container:

server {
[...]
   location /cgi-bin {
      include proxy.conf;
      proxy_pass http://127.0.0.1:8000;
   }
[...]
}

Reload nginx:

systemctl reload nginx.service

Because Thttpd's document root is /var/www, location /cgi-bin translates to the directory /var/www/cgi-bin (this is true for all your vhosts, which means each vhost must place its CGI scripts in /var/www/cgi-bin; this is a drawback for shared hosting environments; the solution is to use a CGI wrapper as described in chapter 3 instead of Thttpd).

Create the directory...

mkdir /var/www/cgi-bin

... and then place your CGI scripts in it and make them executable. For testing purposes I will create a small Hello World Perl script (instead of hello_world.cgi you can also use the extension .pl -> hello_world.pl):

vi /var/www/cgi-bin/hello_world.cgi

#!/usr/bin/perl -w

     # Tell perl to send a html header.
     # So your browser gets the output
     # rather then <stdout>(command line
     # on the server.)
print "Content-type: text/html\n\n";

     # print your basic html tags.
     # and the content of them.
print "<html><head><title>Hello World!! </title></head>\n";
print "<body><h1>Hello world</h1></body></html>\n";

chmod 755 /var/www/cgi-bin/hello_world.cgi

Open a browser and test the script:

http://www.example.com/cgi-bin/hello_world.cgi

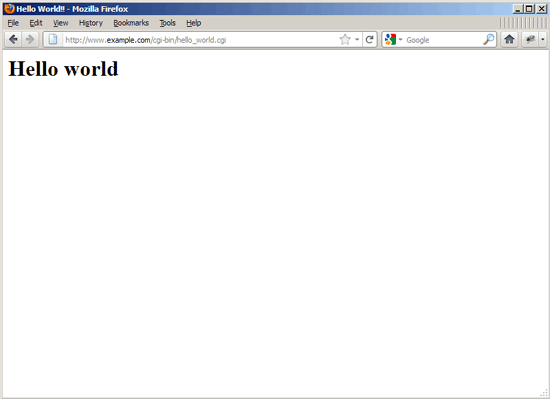

If all goes well, you should get the following output:
