Secure your SSH deployment with WiKID two-factor authentication

SSH offers a highly secure channel for remote administration of servers. However, if you face an audit for regulatory or business requirements, such as Visa/Mastercard PCI, you need to be aware of some potential authentication related short-comings that may cause headaches in an audit. For example:

  • There is no way to control which users have public key authorization
  • There is no way to enforce passphrase complexity (or even be sure that one is being used)
  • There is no way to expire a public key
In this document we are going to demonstrate how to combine two-factor authentication from WiKID with an SSH gateway server with hosted private keys to create a highly secure, auditable and easy to use remote access solution. The WiKID Strong Authentication System is a commercial/open source two-factor authentication solution. First, we will configure a domain on the WiKID server, then add the servers as network clients to the WiKID server, and finally configure the gateway box and the targets servers - in our case, Fedora Core 6 servers.

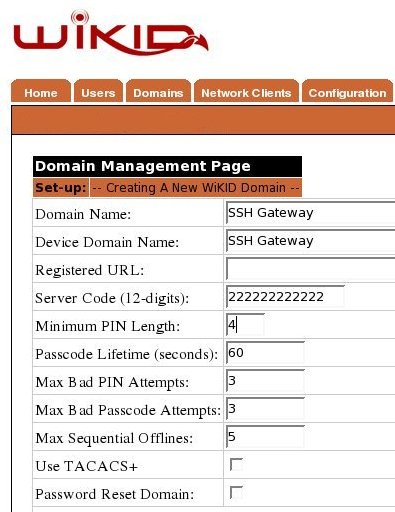

Adding a domain to the WiKID server


Create a network client

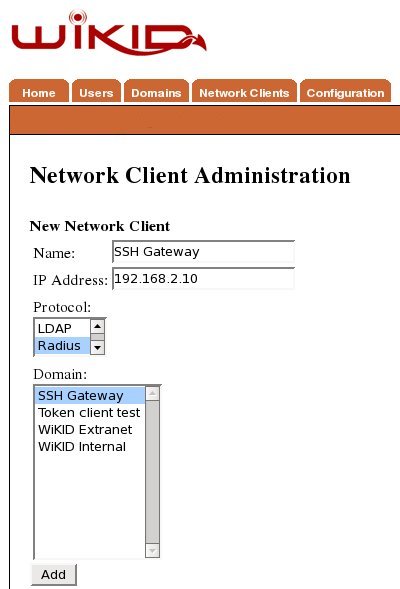

After saving the domain information, click on the Network Client tab and Create New Network Client. Enter a name for this client and the IP Address of the SSH gateway on the internal network. Select Radius as the protocol and the domain you created above as the domain.

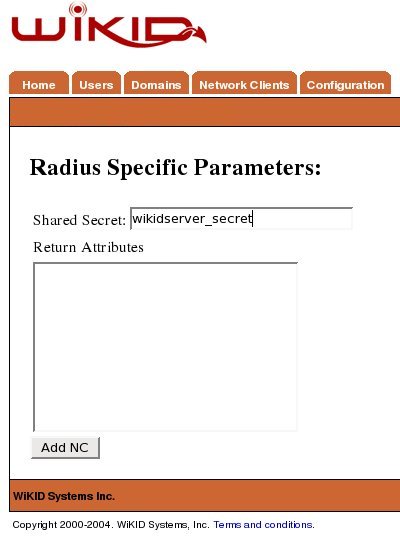

Click Add to get the next page and enter the shared secret for Radius.


You will need to repeat this process for each server on your network.

Configure the SSH Gateway

Now we will configure the central SSH gateway. This linux box is the gateway/proxy to all the production servers in the farm. It should be locked down tight with no extraneous software or services running on it. It should have an external interface for in-bound connections and an internal interface for internal connections. First, we will configure the gateway box to use WiKID for strong authentication of SSH users. Edit your /etc/pam.d/sshd file thusly:

#%PAM-1.0
auth sufficient /lib/security/pam_radius_auth.so
auth include system-auth
account required pam_nologin.so
account include system-auth
password include system-auth
session include system-auth
session required pam_loginuid.so


Add your WiKID server to the /etc/raddb/server file, using the internal IP Address of the WiKID server and the shared secret you entered in the Network Client creation page:

# server[:port] shared_secret      timeout (s)
127.0.0.1 secret 1
xxx.xxx.xxx.xx wikidserver_secret 3


Let's add some security to SSH configuration here too. Open your /etc/ssh/sshd_config (not the nearby ssh_config file). Add these configuration options:

#Protocol 2,1
#Check that only protocol 2 is allowed:
Protocol 2
#Disallow root login:
PermitRootLogin no
#Disallow accounts without passwords:
PermitEmptyPasswords no

If you want to change the port you can. It won't stop an attacker, but it might cut down on log events caused by script kiddies. This gateway box is now set to use WiKID one-time passwords for SSH authentication. All users have to be registered with the WiKID server and no one can login as root. Before we leave this box, we'll do something that is a little bit different - we will have the users create their RSA private key on the gateway. Once each users is signed into the box with WiKID, have them create their keys:

ssh-keygen -t rsa

In my opinion, passphrases for these keys are redundant. They are here only to create a single sign on functionality into the server farm. Obviously, you must be careful to be sure that users do not have access to other keys.

Configure the target servers

Obviously, we configure these servers to only accept incoming SSH requests from the gateway. We do this by restricting access on port 22 to our internal addresses. Edit /etc/sysconfig/iptables and add or edit the line for SSH on port 22:

-A RH-Firewall-1-INPUT -m state --state NEW -m tcp -p tcp -s 192.168.1.0/24 --dport 22 -j ACCEPT
Chances are that you can use the standard set up for sshd_config, which allows for public key authentication. So, we're done!

Conclusion

Remote SSH is now extremely secure. No user can get access to the server farm without first getting a one-time passcode from the WiKID server. The two-factors of authentication are possession of the WiKID token (and it's cryptographic key) and knowledge of the PIN. Because the PIN is validated on the WiKID server, it is very easy to disable a user. Everything is logged and any auditor should be very pleased.

Additionally, you could require a WiKID one-time passcode for root access on internal machines. Just create create a new domain for su and edit /etc/pam.d/su appropriately. This will also allow you to break the servers into different groups for management. Just create For example, if you have a set of servers for HR to which only certain admins have root access, they can be configured for a specific WiKID domain - allowing fine grained access control and strong authentication. Get more information on two-factor authentication from WiKID website.


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by Peter Forge (not registered) on Thu, 2009-01-01 04:29.

This system checks for two of "something you know": your password to the WikID server (getting you a OTP) and your password to the SSH server.

For this to be true two-factor authentication, the server also needs to check for either "something you have" or "something you are".

Submitted by nowen (registered user) on Wed, 2011-03-23 13:09.

You missed part of the WiKID authentication process, perhaps because it was not really demonstrated here.  The user enters a PIN (something they know) in the WiKID software token (something they have, well technically, possession of the private key embedded in the token).  The PIN is encrypted and sent to the WiKID server behind the corporate firewall. If the PIN is correct, the account active and the encryption valid, an OTP is generated, encrypted and returned to the user to use as the password.

 You can think of WiKID as being like PGP, but used to transmit authenticating information.  It is 'stronger' than certs or keys, because the PIN is validated on the server rather than locally and integration is simple because every UI supports and username/password combo.

The addition of the OTP makes SSH more suitable in organizations facing compliance (PCI, etc).

Submitted by Chris S (not registered) on Tue, 2009-11-03 11:47.
If you use SSH keys then this is true 2 factor authentication
Submitted by Anonymous (not registered) on Fri, 2010-04-30 13:06.

> If you use SSH keys then this is true 2 factor authentication

 I'd call that something you know and something you know - not two factor authentication.

Submitted by Anonymous (not registered) on Fri, 2010-05-28 17:02.

How is a ssh key something you know? I don't make it a habit to remember ssh keys. They are a file, which makes it something you have.
