Submitted by falko (Contact Author) (Forums) on Sat, 2005-07-16 13:33. :: Fedora | ISPConfig

This is a "copy & paste" HowTo! The easiest way to follow this tutorial is to use a command line client/SSH client (like PuTTY for Windows) and simply copy and paste the commands (except where you have to provide own information like IP addresses, hostnames, passwords,...). This helps to avoid typos.

The Perfect Setup - Fedora Core 3

Version 1.1
Author: Falko Timme <ft [at] falkotimme [dot] com>
Last edited: 10/13/2005

This is a detailed description about the steps to be taken to setup a Fedora Core 3 based server that offers all services needed by ISPs and hosters (web server (SSL-capable), mail server (with SMTP-AUTH and TLS!), DNS server, FTP server, MySQL server, POP3/IMAP, Quota, Firewall, etc.). In addition to that I will show how to use Debian's package manager apt on an rpm-based system because it takes care of package dependencies automagically which can save a lot of trouble.

I will use the following software:

  • Web Server: Apache 2.0.x
  • Mail Server: Postfix (easier to configure than sendmail; has a shorter history of security holes than sendmail)
  • DNS Server: BIND9
  • FTP Server: proftpd
  • POP3/IMAP servers
  • Webalizer for web site statistics

In the end you should have a system that works reliably and is ready for the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!

Requirements

To install such a system you will need the following:

1 The Base System

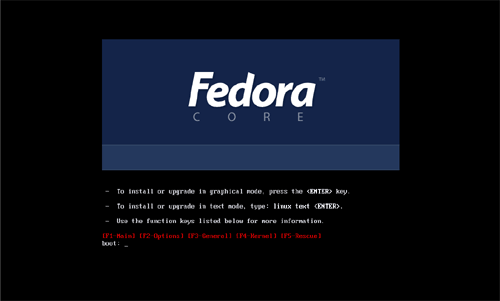

Boot from your Fedora Core 3 CD (CD 1) or DVD.

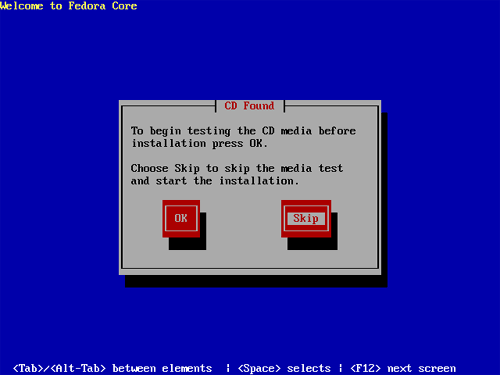

It can take a long time to test the installation media so we skip this test here:

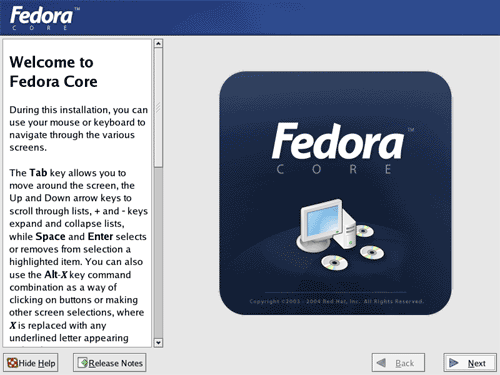

The welcome screen of the Fedora installer appears:

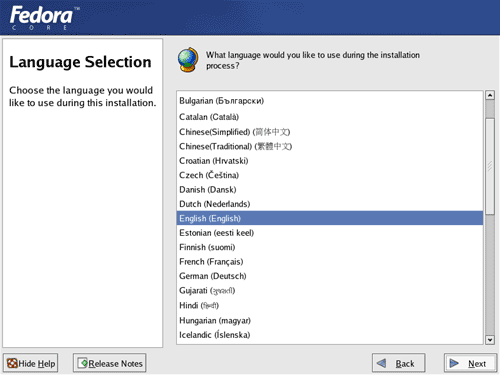

Choose your language next:

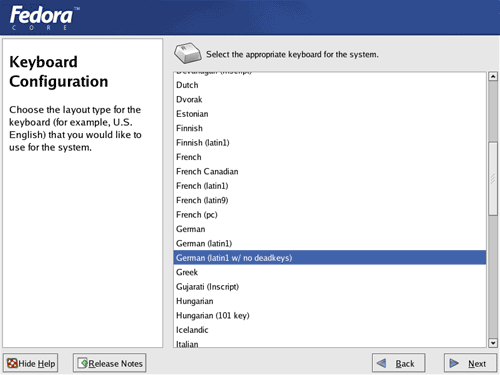

Select your keyboard layout:

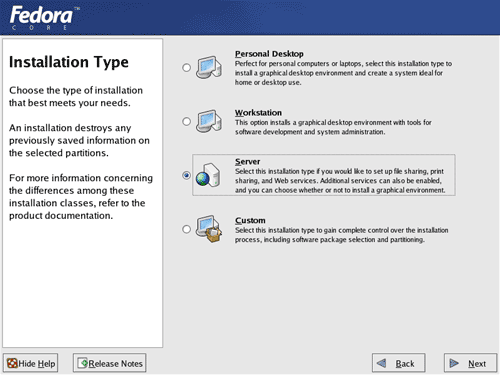

We want to install a server so we choose Server here:

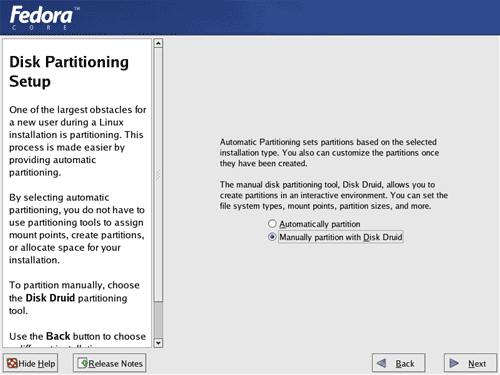

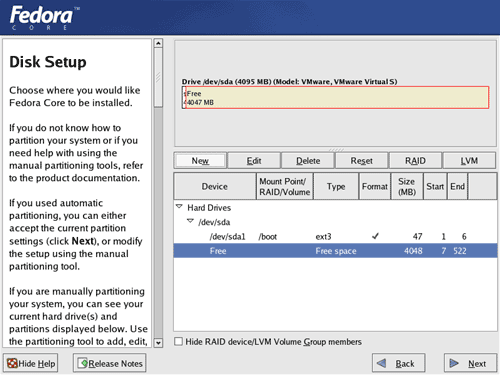

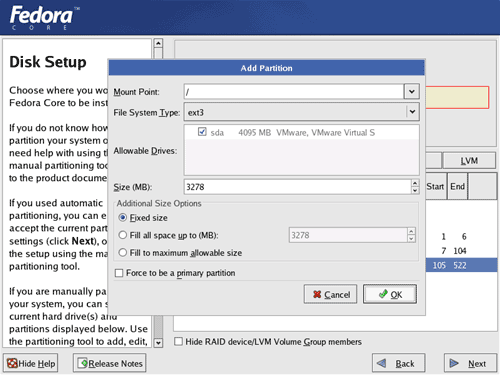

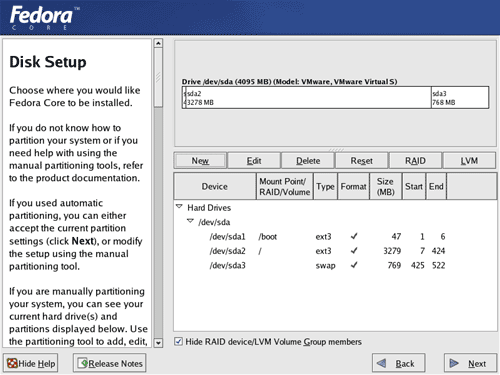

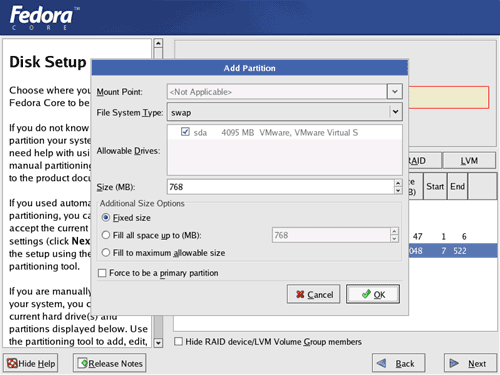

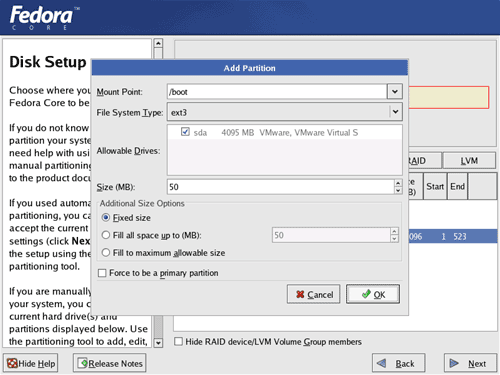

Now we have to partition our hard disk. You can choose to let the Fedora installer do the partitioning, or you can do it yourself. I want to create a small /boot partition (less than 100 MB) with the file system ext3, a swap partition and a huge / partition (again with ext3):

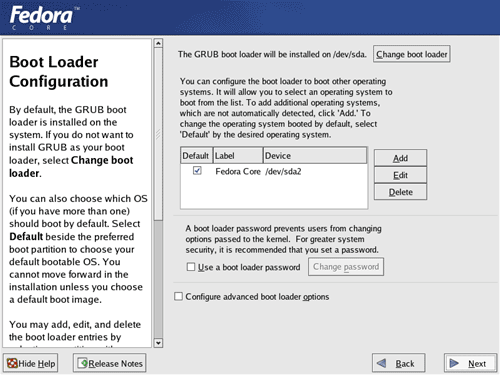

Now the boot loader GRUB will be installed. You can leave the default settings unchanged and click on Next:
