Logitech MX Revolution's Special Buttons On Fedora 7 - Page 2

Want to support HowtoForge? Become a subscriber!

Submitted by o.meyer (Contact Author) (Forums) on Mon, 2007-08-20 15:13. ::

4 Install Xbindkeys

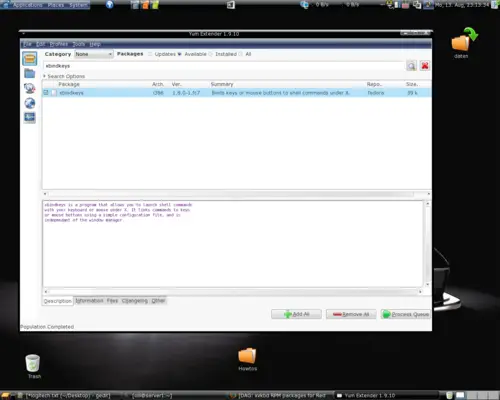

Get xbindkeys from the fedora repository. I use yumex as frontend for yum, you can use your favorite of course.

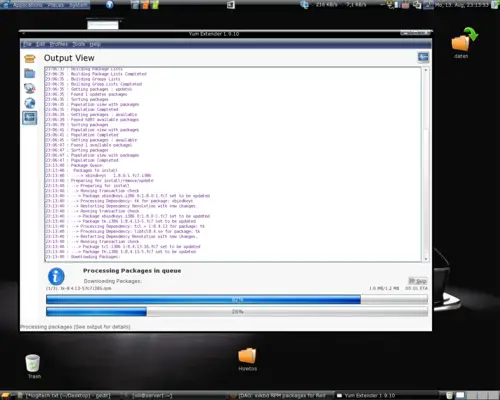

The packages are now being downloaded and installed:



5 Configure Xbindkeys

Open a terminal and initialize xbindkeys:

xbindkeys --defaults > $HOME/.xbindkeysrc

Now we can configure the .xbindkeysrc:

vi .xbindkeysrc

Insert the following content:

# Action back
"/usr/bin/xvkbd -xsendevent -text "\[Alt_L]\[Left]""
m:0x0 + b:8

# Action forward
"/usr/bin/xvkbd -xsendevent -text "\[Alt_L]\[Right]""
m:0x0 + b:9

# Zoom in
"/usr/bin/xvkbd -xsendevent -text "\C+""
m:0x0 + b:13

# Zoom out
"/usr/bin/xvkbd -xsendevent -text "\C-""
m:0x0 + b:15

# Close window
"/usr/bin/xvkbd -xsendevent -text "\Cw""
m:0x0 + b:17


As you see, each button-configuration consists of a xvkbd-event followed by the button-identity.
m:0x0 + b:1 for button 1, m:0x0 + b:2 for button 2 and so on.
The Configuration above is an example - edit it as you like.



6 Add Xbindkeys To Autostart

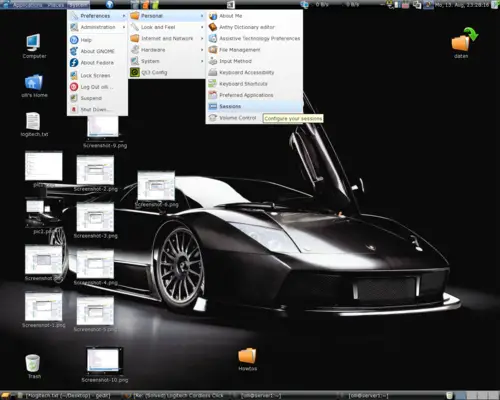

Go to: System - Preferences - Personal - Sessions:

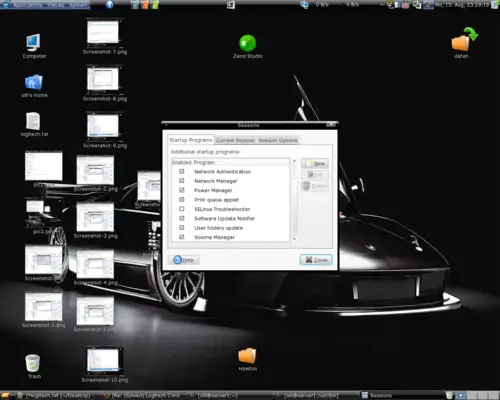

Click "New":

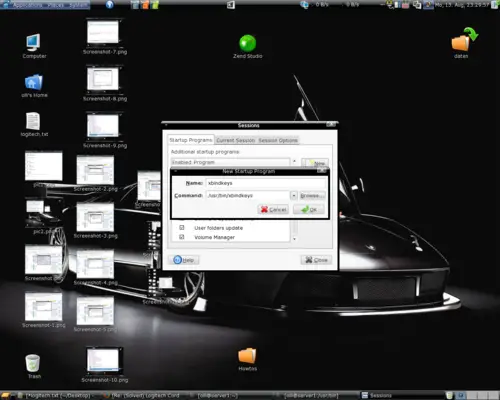

Add xbindkeys to autostart (Command = /usr/bin/xbindkeys):

Now you should log out and after that log in again to enable the new configuration.
