Intrusion Detection For PHP Applications With PHPIDS

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Last edited 06/04/2008

This tutorial explains how to set up PHPIDS on a web server with Apache2 and PHP5. PHPIDS (PHP-Intrusion Detection System) is a simple to use, well structured, fast and state-of-the-art security layer for your PHP based web application. The IDS neither strips, sanitizes nor filters any malicious input, it simply recognizes when an attacker tries to break your site and reacts in exactly the way you want it to. Based on a set of approved and heavily tested filter rules any attack is given a numerical impact rating which makes it easy to decide what kind of action should follow the hacking attempt. This could range from simple logging to sending out an emergency mail to the development team, displaying a warning message for the attacker or even ending the user’s session.

I do not issue any guarantee that this will work for you!



1 Preliminary Note

I have tested this on a Debian Etch LAMP system with Apache2 and PHP5 and the IP address 192.168.0.100. The Apache user and group on Debian Etch is www-data, so if you are on a different distribution, the Apache user and group might be different. The location of php.ini (/etc/php5/apache2/php.ini on Debian Etch) might differ as well.

I'm using a virtual host with the document root /var/www/web1/web in this example.



2 Installing PHPIDS

For security reasons, I want to install PHPIDS outside of the document root, so I create the directory /var/www/web1/phpids:

mkdir /var/www/web1/phpids

Then I install PHPIDS as follows (at the time of this writing the latest version was 0.4.7) - of all the contents of the phpids-0.4.7.tar.gz file, we only need the lib/ directory:

cd /tmp
wget http://php-ids.org/files/phpids-0.4.7.tar.gz
tar xvfz phpids-0.4.7.tar.gz
cd phpids-0.4.7
mv lib/ /var/www/web1/phpids/

Now I change to the directory /var/www/web1/phpids/lib/IDS...

cd /var/www/web1/phpids/lib/IDS

... and make the tmp/ directory (which will hold the PHPIDS log file) writable for the Apache user and group:

chown -R www-data:www-data tmp/

Next we configure the PHPIDS configuration file (Config.ini):

cd Config/
vi Config.ini

I'm using the default configuration here, all I did was to adjust the paths:

; PHPIDS Config.ini

; General configuration settings

; !!!DO NOT PLACE THIS FILE INSIDE THE WEB-ROOT IF DATABASE CONNECTION DATA WAS ADDED!!!

[General]

    filter_type     = xml
    filter_path     = /var/www/web1/phpids/lib/IDS/default_filter.xml
    tmp_path        = /var/www/web1/phpids/lib/IDS/tmp
    scan_keys       = false

    exceptions[]    = __utmz
    exceptions[]    = __utmc

; If you use the PHPIDS logger you can define specific configuration here

[Logging]

    ; file logging
    path            = /var/www/web1/phpids/lib/IDS/tmp/phpids_log.txt

    ; email logging

    ; note that enabling safemode you can prevent spam attempts,
    ; see documentation
    recipients[]    = test@test.com.invalid
    subject         = "PHPIDS detected an intrusion attempt!"
    header                      = "From: <PHPIDS> info@php-ids.org"
    safemode        = true
    allowed_rate    = 15

    ; database logging

    wrapper         = "mysql:host=localhost;port=3306;dbname=phpids"
    user            = phpids_user
    password        = 123456
    table           = intrusions

; If you would like to use other methods than file caching you can configure them here

[Caching]

    ; caching:      session|file|database|memcached|none
    caching         = file
    expiration_time = 600

    ; file cache
    path            = /var/www/web1/phpids/lib/IDS/tmp/default_filter.cache

    ; database cache
    wrapper         = "mysql:host=localhost;port=3306;dbname=phpids"
    user            = phpids_user
    password        = 123456
    table           = cache

    ; memcached
    ;host           = localhost
    ;port           = 11211
    ;key_prefix     = PHPIDS
    ;tmp_path       = /var/www/web1/phpids/lib/IDS/tmp/memcache.timestamp



3 Using PHPIDS

We will now create the file /var/www/web1/web/phpids.php which will call PHPIDS for us (we will later on prepend that file to all our PHP files so that our PHP files can make use of PHPIDS automatically):

vi /var/www/web1/web/phpids.php

<?php
set_include_path(
   get_include_path()
   . PATH_SEPARATOR
   . '/var/www/web1/phpids/lib'
  );

  require_once 'IDS/Init.php';
  $request = array(
      'REQUEST' => $_REQUEST,
      'GET' => $_GET,
      'POST' => $_POST,
      'COOKIE' => $_COOKIE
  );
  $init = IDS_Init::init('/var/www/web1/phpids/lib/IDS/Config/Config.ini');
  $ids = new IDS_Monitor($request, $init);
  $result = $ids->run();

  if (!$result->isEmpty()) {
   // Take a look at the result object
   echo $result;
   require_once 'IDS/Log/File.php';
   require_once 'IDS/Log/Composite.php';

   $compositeLog = new IDS_Log_Composite();
   $compositeLog->addLogger(IDS_Log_File::getInstance($init));
   $compositeLog->execute($result);
  }
?>

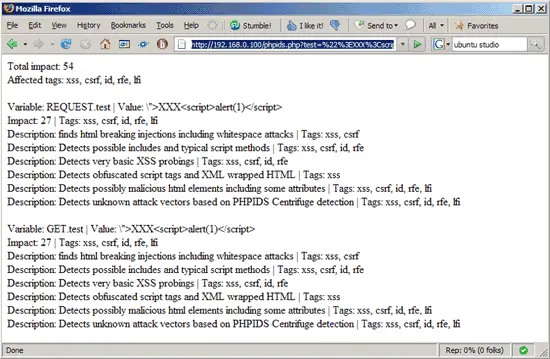

Now when you call that file in a browser, (e.g. http://192.168.0.100/phpids.php), you will see a blank page. But if you try to append some malicious parameters to the URL (e.g. http://192.168.0.100/phpids.php?test=%22%3EXXX%3Cscript%3Ealert(1)%3C/script%3E), PHPIDS will detect this and print its findings in the browser:

Now we have to find a way to make our PHP scripts use PHPIDS. Of course, you don't want to modify all your PHP scripts (you could have hundreds of them...). Fortunately, there's a better way: we can tell PHP to prepend a PHP script whenever a PHP script is called. For example, if we call the script info.php in a browser, PHP would first execute phpids.php and then info.php, and we don't even have to modify info.php.

We can do this by using PHP's auto_prepend_file parameter. We can either set this in our php.ini (this is a global setting which is valid for all PHP web sites on the server), or in an .htaccess file (this is a setting valid only for the web site in question):


php.ini

Open your php.ini (e.g. /etc/php5/apache2/php.ini), and set auto_prepend_file to /var/www/web1/web/phpids.php:

vi /etc/php5/apache2/php.ini

[...]
auto_prepend_file = /var/www/web1/web/phpids.php
[...]

Restart Apache afterwards:

/etc/init.d/apache2 restart



.htaccess

Instead of modifying php.ini (which is a global change, i.e., the change is valid for all web sites that use PHP on the server), you can instead use an .htaccess file (so the setting would be valid only for the web site for which you create the .htaccess file):

vi /var/www/web1/web/.htaccess

php_value auto_prepend_file /var/www/web1/web/phpids.php

Please make sure that the vhost for the web site in /var/www/web1/web contains something like this (otherwise the php_value line in the .htaccess file will be ignored) (if you have to modify the vhost, please don't forget to restart Apache):

<Directory /var/www/web1/web/>
AllowOverride All
</Directory>

Now we create a simple PHP file, /var/www/web1/web/info.php:

vi /var/www/web1/web/info.php

<?php
phpinfo();
?>

Call that file in a browser (http://192.168.0.100/info.php), and you should see the normal phpinfo() output.

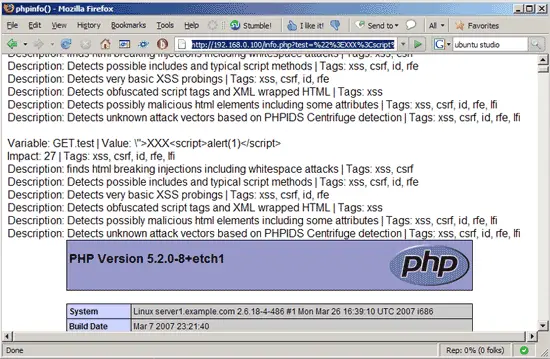

Now append some malicious parameters to the URL (e.g. http://192.168.0.100/info.php?test=%22%3EXXX%3Cscript%3Ealert(1)%3C/script%3E), and you should find a PHPIDS report before the phpinfo() output (because /var/www/web1/web/phpids.php was executed before /var/www/web1/web/info.php):

PHPIDS logs to /var/www/web1/phpids/lib/IDS/tmp/phpids_log.txt, so you should see something in the log now:

cat /var/www/web1/phpids/lib/IDS/tmp/phpids_log.txt

"192.168.0.200",2008-06-04T17:36:08+02:00,54,"xss csrf id rfe lfi","REQUEST.test=%5C%22%3EXXX%3Cscript%3Ealert%281%29%3C%2Fscript%3E GET.test=%5C%22%3EXXX%3Cscript%3Ealert%281%29%3C%2Fscript%3E",
"%2Finfo.php%3Ftest%3D%2522%253EXXX%253Cscript%253Ealert%281%29%253C%2Fscript%253E"

Now by observing that log you learn what hackers are trying to do to your PHP applications, and you can try to harden your applications.

To add another level of security, we can stop our PHP scripts from executing if PHPIDS find that they are under attack: we simply add something like die('<h1>Go away!</h1>'); to the if (!$result->isEmpty()) {} section of the /var/www/web1/web/phpids.php script:

vi /var/www/web1/web/phpids.php

<?php
set_include_path(
   get_include_path()
   . PATH_SEPARATOR
   . '/var/www/web1/phpids/lib'
  );

  require_once 'IDS/Init.php';
  $request = array(
      'REQUEST' => $_REQUEST,
      'GET' => $_GET,
      'POST' => $_POST,
      'COOKIE' => $_COOKIE
  );
  $init = IDS_Init::init('/var/www/web1/phpids/lib/IDS/Config/Config.ini');
  $ids = new IDS_Monitor($request, $init);
  $result = $ids->run();

  if (!$result->isEmpty()) {
   // Take a look at the result object
   echo $result;
   require_once 'IDS/Log/File.php';
   require_once 'IDS/Log/Composite.php';

   $compositeLog = new IDS_Log_Composite();
   $compositeLog->addLogger(IDS_Log_File::getInstance($init));
   $compositeLog->execute($result);

   die('<h1>Go away!</h1>');
  }
?>

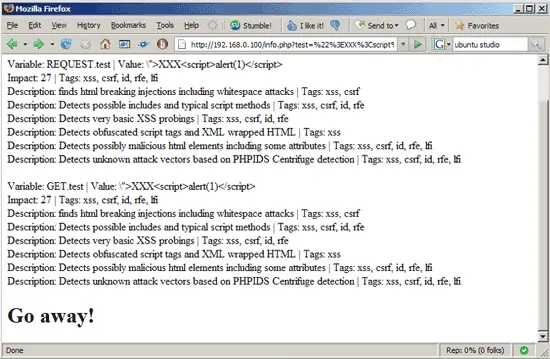

If there's no attack, the scripts are executed, but if PHPIDS finds an attack, it prevents the scripts from being executed and displays a message to the hackers:



4 Links


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by ana45 (not registered) on Fri, 2010-01-22 08:05.

After creating the file :

/var/www/web1/web/phpids.php

which is supposed to call PHPIDS, I try running the url

http://192.168.0.100/phpids.php

in my browser but I am returned with an

Error 404  : The requested URL /phpids.php was not found on this server.


Even when I type :

http://192.168.0.100/phpids.php?test=%22%3EXXX%3Cscript%3Ealert(1)%3C/script%3E

in the browser, I am returned with a page load error.

Why is this? Pls help me resolve this issue.

Submitted by Anonymous (not registered) on Thu, 2009-02-19 12:14.

Before using this great piece of software you NEED to have full utf-8 support on UR machine!http://gaarai.com/2009/01/31/unicode-support-on-centos-52-with-php-and-pcre/https://bugzilla.redhat.com/show_bug.cgi?id=457064

Submitted by SkIRmiS (registered user) on Mon, 2008-09-29 19:39.
And that about open basedir restriction? how to use auto_prepend_file when open basedir is on?
Submitted by Anonymous (not registered) on Mon, 2009-01-12 14:17.

very simple:

just add path to the IDS libraries into open_basedir (either place this into .htaccess, or into VirtualHost container of the website.conf file for apache).

php_admin_value open_basedir "/path/to/website:/path/to/phpids-0.5.4/lib"
