How To Install The Openbravo ERP On Debian Etch

Want to support HowtoForge? Become a subscriber!

Submitted by o.meyer (Contact Author) (Forums) on Sun, 2008-03-30 18:55. :: Debian

How To Install The Openbravo ERP On Debian Etch

Version 1.0
Author: Oliver Meyer <o [dot] meyer [at] projektfarm [dot] de>
Last edited 03/07/2008

This document describes how to set up Openbravo ERP (enterprise management system) on Debian Etch. Taken from the Openbravo page: "Openbravo is an open source ERP solution designed specifically for the SME (small to midsize firm). Developed in a web based environment, it includes many robust functionalities which are considered part of the extended ERP: procurement and warehouse management, project and service management, production management, and financial management."

I can't list all the features here - please have a look at http://www.openbravo.com/product/product-features/.

This howto is a practical guide without any warranty - it doesn't cover the theoretical backgrounds. There are many ways to set up such a system - this is the way I chose.



1 Preparation

1.1 Debian Backports

This repository provides Sun's JDK that we need for this setup.

vi /etc/apt/sources.list

Add the following lines.

# Debian Backports
deb http://www.backports.org/debian etch-backports main contrib non-free

Afterwards refresh apt ...

apt-get update

... and import the gpg-key.

apt-get install debian-backports-keyring



1.2 Needed Packages

Now let's install and configure the needed packages.

1.2.1 PostgreSQL

Install it via:

apt-get install postgresql-8.2

Afterwards we have to set the PostgreSQL admin password.

sed -i 's/ident sameuser$/trust/' /etc/postgresql/8.2/main/pg_hba.conf
/etc/init.d/postgresql-8.2 restart

Open a PostgreSQL shell.

psql -U postgres
alter role postgres with password '%new_PostgreSQL_admin_passowrd%';
\q

sed -i 's/trust$/md5/' /etc/postgresql/8.2/main/pg_hba.conf
/etc/init.d/postgresql-8.2 reload



1.2.2 Java JDK

Install it via:

apt-get install sun-java6-jdk

Afterwards make it systemwide available.

update-java-alternatives -s java-6-sun
echo 'JAVA_HOME="/usr/lib/jvm/java-6-sun"' | tee -a /etc/environment

After that log out and in again to take the changes effect.



1.2.3 Apache Tomcat

Install it via:

apt-get install tomcat5.5 tomcat5.5-admin tomcat5.5-webapps

Afterwards we have to configure it.

rm /var/log/tomcat5.5/catalina.out
vi /etc/init.d/tomcat5.5

Change:

TOMCAT5_SECURITY=yes

To:

TOMCAT5_SECURITY=no

Restart Tomcat.

/etc/init.d/tomcat5.5 restart

Now let's look if all went well.

netstat -tap | grep java

Tomcat should be listening on port 8180.

tcp6 0 0 *:8180 *:* LISTEN 3571/java

As a last resort make it systemwide available.

echo 'CATALINA_HOME="/usr/share/tomcat5.5"' | tee -a /etc/environment
echo 'CATALINA_BASE="/var/lib/tomcat5.5"' | tee -a /etc/environment
echo 'CATALINA_OPTS="-server -Xms384M -Xmx512M"' | tee -a /etc/environment

After that log out and in again to take the changes effect.



1.2.4 Apache Ant

Apache ant has already been installed as dependency at the step before - so only the configuration is left.

echo 'ANT_HOME="/usr/share/ant"' | tee -a /etc/environment

After that log out and in again to take the changes effect.



2 Openbravo

2.1 Get It

Please have a look at http://sourceforge.net/projects/openbravo/ to find out which is the latest version. When I was writing this howto it was version 2.35mp1.

cd /tmp/
wget http://mesh.dl.sourceforge.net/sourceforge/openbravo/OpenbravoERP-2.35-MP1-linux-installer.bin
chmod +x OpenbravoERP-2.35-MP1-linux-installer.bin



2.2 Installation

A text based installer will guide you through the installation.

./OpenbravoERP-2.35-MP1-linux-installer.bin

First press a few times "Enter" to read the single parts of the license agreement. Type in "yes" at the end if you agree with it.

Before the installation begins you'll be asked a few questions - answer them as follows.

  • Hit "Enter" to choose the default (/opt/OpenbravoERP) when you're asked for the installation directory.
  • Hit "Enter" to choose the default (/opt/OpenbravoERP/AppsOpenbravo/attach) when you're asked for the attachments directory.
  • Hit "Enter" to choose the default (Full (standard) installation) when you're asked for the installation type.
  • Hit "Enter" to choose the default (Full) when you're asked again for the installation type.
  • Choose PostgreSQL as database to use.
  • Hit "Enter" to choose the default (/usr/lib/jvm/java-6-sun) when you're asked for the java home directory.
  • Hit "Enter" to choose the default (/usr/share/ant) when you're asked for the Apache ant home directory.
  • Hit "Enter" to choose the default (/var/lib/tomcat5.5) when you're asked for the Tomcat installation directory.
  • Type in your web server's domain (e.g.: server1.example.com) when you're asked for it.
  • Enter "8180" when you're asked for the http port.
  • Hit "Enter" to choose the default (openbravo) when you're asked for the context name.
  • Enter "/usr/bin" when you're asked for the directory that contains the PostgreSQL binaries.
  • Hit "Enter" to choose the default (localhost) when you're asked for the database server parameters.
  • Hit "Enter" to choose the default (4532) when you're asked for PostgreSQL's listening port.
  • Hit "Enter" to choose the default (openbravo) when you're asked for the database name.
  • Next enter the PostgreSQL admin password (twice) that you created earlier at step 1.2.1.
  • Hit "Enter" to choose the default (tad) when you're asked for the openbravo database user.
  • Next type in a password (twice) for the new user.
  • Now type in "y" to start the installation - this will take a while...



2.3 Webinterface

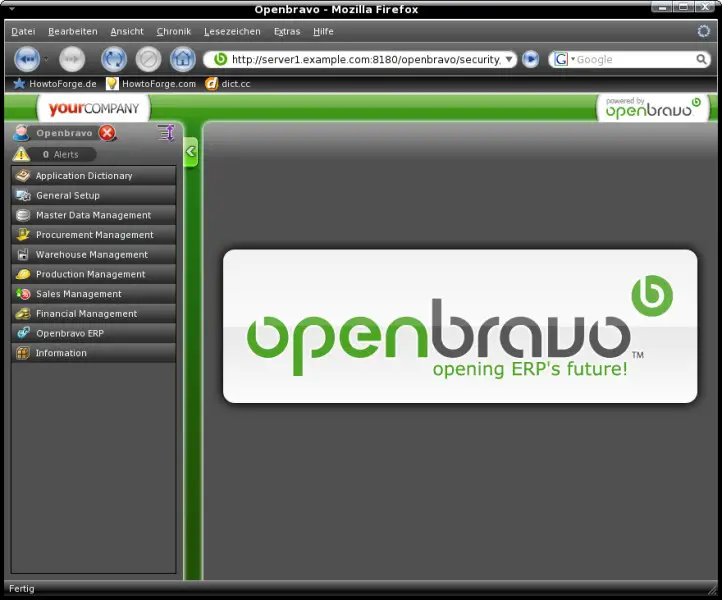

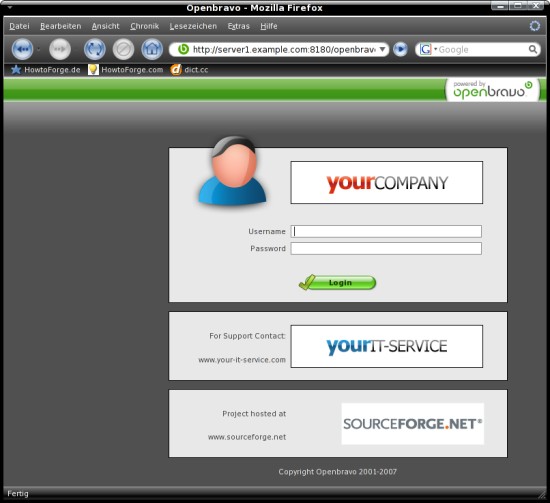

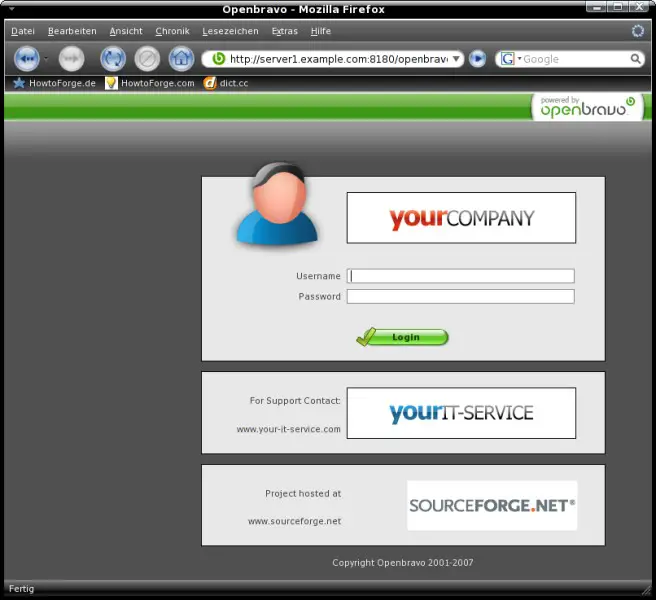

Now you can access Openbravo via http://%servername%:8180/openbravo . Log in with the username "Openbravo" and the password "openbravo".



3 Links


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by domatq (not registered) on Sun, 2009-02-08 15:43.

In order to fix this kind of startup message :

no JDK found - please set JAVA_HOME

or

Not starting Tomcat : No Java Development kit found



Just do the following :

edit your /etc/default/tomcat5.5  file

and uncomment the value

#JAVA_HOME=/usr/lib/jvm/java-6-sun

Of course don't forget to restart your tomcat



Thanks for this tutorial



Submitted by florin (not registered) on Tue, 2008-11-18 00:29.

Your tutorial is perfect .

Up to you, I did not succeed to start tomcat55 and I read many tutorials very sophisticated, with many modifications and additions code files.
After you have all worked perfectly.
Thank you very much!

Submitted by ianetche (registered user) on Tue, 2008-04-29 00:17.

Hi

Thanks for the tutorial - very helpful.

 I found that when it came to the point to:

    "Open a PostgreSQL shell."

    psql -U postgres

 it was helpful to change to postgres first.

e.g. su -m postgres

then:
    pgsl -U postgres
    alter ....
    \q

and then back with:

    su -

Just a thought anyway.

Best regards, Ian

Submitted by alvarod_silva (registered user) on Wed, 2008-04-16 00:43.

Hi,

How's everything? Hope still fine.......well, thanks for this tutorial and I think the all those read all this tutorials are very gratefull for a lot help you're giving at this time to Open Source Community...

 Well, my question is: Is that possible to install this software (OpenBravo) with MySql + Postfix + PHP + Perl + Apache 2? I took a look on all my stuff and at this time, didn't realize that possibility.

Again, thanks for your help

Submitted by Anonymous (not registered) on Tue, 2008-09-16 12:45.
No, is not possible, If you realize OB is wrote in java, and not php
Submitted by Ken M (not registered) on Thu, 2011-07-14 04:43.

java supports multiple database via JDBC and further there are numerous ORM abstraction layers like Hibernate and others that automatically handle different database flavors.

 According to the custom installation documentation, OpenBravo ERP only supports Oracle & PostgreSQL.

 While the OpenBravo POS does in fact support mysql (despite being a java program.)

Database installation

Once Openbravo POS is installed you should decide whether you want to run Openbravo POS on the built-in engine or on any of the other database engines supported. Openbravo POS supports five database engines: Apache DerbyMySQLPostgreSQLOracle and HSQLDB.
