Installing Nginx With PHP5 (And PHP-FPM) And MySQL Support (LEMP) On Ubuntu 13.04

Want to support HowtoForge? Become a subscriber!

Submitted by falko (Contact Author) (Forums) on Tue, 2013-07-02 18:31. :: Ubuntu | Web Server | MySQL | nginx | PHP

Installing Nginx With PHP5 (And PHP-FPM) And MySQL Support (LEMP) On Ubuntu 13.04

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Follow me on Twitter
Last edited 05/27/2013

Nginx (pronounced "engine x") is a free, open-source, high-performance HTTP server. Nginx is known for its stability, rich feature set, simple configuration, and low resource consumption. This tutorial shows how you can install Nginx on an Ubuntu 13.04 server with PHP5 support (through PHP-FPM) and MySQL support (LEMP = Linux + nginx (pronounced "engine x") + MySQL + PHP) .

I do not issue any guarantee that this will work for you!



1 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100. These settings might differ for you, so you have to replace them where appropriate.

I'm running all the steps in this tutorial with root privileges, so make sure you're logged in as root:

sudo su



2 Installing MySQL 5

In order to install MySQL, we run

apt-get install mysql-server mysql-client

You will be asked to provide a password for the MySQL root user - this password is valid for the user root@localhost as well as root@server1.example.com, so we don't have to specify a MySQL root password manually later on:

New password for the MySQL "root" user: <-- yourrootsqlpassword
Repeat password for the MySQL "root" user: <-- yourrootsqlpassword



3 Installing Nginx

Nginx is available as a package for Ubuntu 13.04 which we can install as follows:

apt-get install nginx

Start nginx afterwards:

/etc/init.d/nginx start

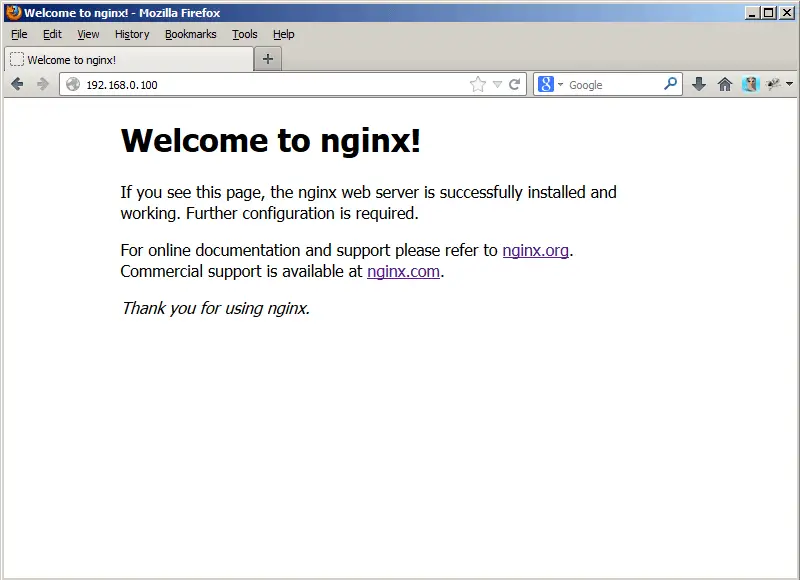

Type in your web server's IP address or hostname into a browser (e.g. http://192.168.0.100), and you should see the following page:

The default nginx document root on Ubuntu 13.04 is /usr/share/nginx/html.



4 Installing PHP5

We can make PHP5 work in nginx through PHP-FPM (PHP-FPM (FastCGI Process Manager) is an alternative PHP FastCGI implementation with some additional features useful for sites of any size, especially busier sites) which we install as follows:

apt-get install php5-fpm

PHP-FPM is a daemon process (with the init script /etc/init.d/php5-fpm) that runs a FastCGI server on the socket /var/run/php5-fpm.sock.



5 Configuring nginx

The nginx configuration is in /etc/nginx/nginx.conf which we open now:

vi /etc/nginx/nginx.conf

The configuration is easy to understand (you can learn more about it here: http://wiki.nginx.org/NginxFullExample and here: http://wiki.nginx.org/NginxFullExample2)

First (this is optional) adjust the number of worker processes and set the keepalive_timeout to a reasonable value:

[...]
worker_processes  4;
[...]
    keepalive_timeout   2;
[...]

The virtual hosts are defined in server {} containers. The default vhost is defined in the file /etc/nginx/sites-available/default - let's modify it as follows:

vi /etc/nginx/sites-available/default

[...]
server {
        listen 80;
        listen [::]:80 default_server ipv6only=on;

        root /usr/share/nginx/html;
        index index.php index.html index.htm;

        # Make site accessible from http://localhost/
        server_name _;

        location / {
                # First attempt to serve request as file, then
                # as directory, then fall back to displaying a 404.
                try_files $uri $uri/ /index.html;
                # Uncomment to enable naxsi on this location
                # include /etc/nginx/naxsi.rules
        }

        location /doc/ {
                alias /usr/share/doc/;
                autoindex on;
                allow 127.0.0.1;
                allow ::1;
                deny all;
        }

        # Only for nginx-naxsi used with nginx-naxsi-ui : process denied requests
        #location /RequestDenied {
        #       proxy_pass http://127.0.0.1:8080;
        #}

        #error_page 404 /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page 500 502 503 504 /50x.html;
        location = /50x.html {
                root /usr/share/nginx/html;
        }

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        location ~ \.php$ {
                try_files $uri =404;
                fastcgi_split_path_info ^(.+\.php)(/.+)$;
                # NOTE: You should have "cgi.fix_pathinfo = 0;" in php.ini

                # With php5-cgi alone:
                #fastcgi_pass 127.0.0.1:9000;
                # With php5-fpm:
                fastcgi_pass unix:/var/run/php5-fpm.sock;
                fastcgi_index index.php;
                include fastcgi_params;
        }

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        location ~ /\.ht {
                deny all;
        }
}
[...]

Uncomment both listen lines to make nginx listen on port 80 IPv4 and IPv6.

server_name _; makes this a default catchall vhost (of course, you can as well specify a hostname here like www.example.com).

I've added index.php to the index line. root /usr/share/nginx/html; means that the document root is the directory /usr/share/nginx/html.

The important part for PHP is the location ~ \.php$ {} stanza. Uncomment it to enable it. Please note that I've added the line try_files $uri =404; to prevent zero-day exploits (see http://wiki.nginx.org/Pitfalls#Passing_Uncontrolled_Requests_to_PHP and http://forum.nginx.org/read.php?2,88845,page=3).

Now save the file and reload nginx:

/etc/init.d/nginx reload

Next open /etc/php5/fpm/php.ini...

vi /etc/php5/fpm/php.ini

... and set cgi.fix_pathinfo=0:

[...]
; cgi.fix_pathinfo provides *real* PATH_INFO/PATH_TRANSLATED support for CGI.  PHP's
; previous behaviour was to set PATH_TRANSLATED to SCRIPT_FILENAME, and to not grok
; what PATH_INFO is.  For more information on PATH_INFO, see the cgi specs.  Setting
; this to 1 will cause PHP CGI to fix its paths to conform to the spec.  A setting
; of zero causes PHP to behave as before.  Default is 1.  You should fix your scripts
; to use SCRIPT_FILENAME rather than PATH_TRANSLATED.
; http://php.net/cgi.fix-pathinfo
cgi.fix_pathinfo=0
[...]

Reload PHP-FPM:

/etc/init.d/php5-fpm reload

Now create the following PHP file in the document root /usr/share/nginx/html:

vi /usr/share/nginx/html/info.php

<?php
phpinfo();
?>

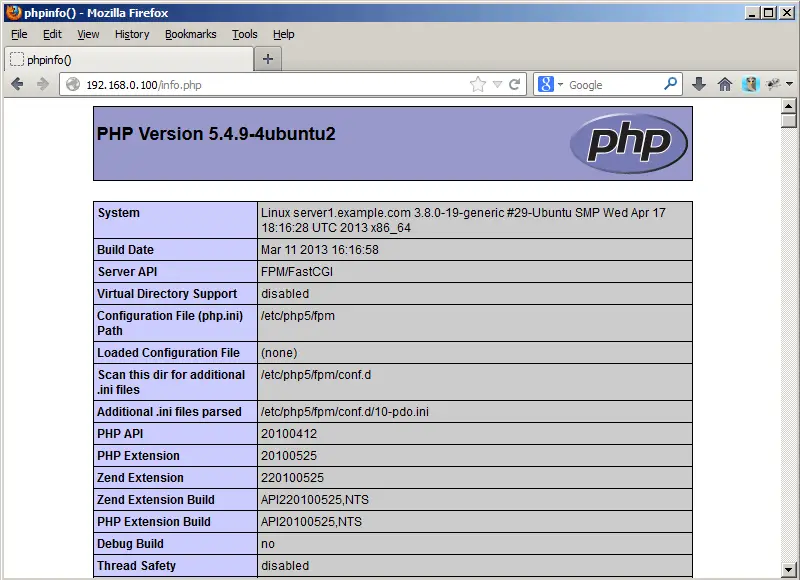

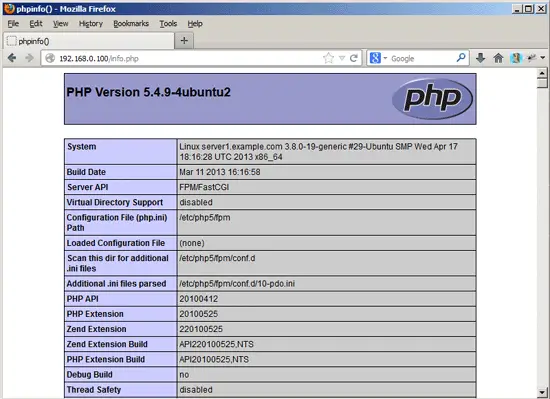

Now we call that file in a browser (e.g. http://192.168.0.100/info.php):

As you see, PHP5 is working, and it's working through FPM/FastCGI, as shown in the Server API line. If you scroll further down, you will see all modules that are already enabled in PHP5. MySQL is not listed there which means we don't have MySQL support in PHP5 yet.



6 Getting MySQL Support In PHP5

To get MySQL support in PHP, we can install the php5-mysql package. It's a good idea to install some other PHP5 modules as well as you might need them for your applications. You can search for available PHP5 modules like this:

apt-cache search php5

Pick the ones you need and install them like this:

apt-get install php5-mysql php5-curl php5-gd php5-intl php-pear php5-imagick php5-imap php5-mcrypt php5-memcache php5-ming php5-ps php5-pspell php5-recode php5-snmp php5-sqlite php5-tidy php5-xmlrpc php5-xsl

APC is a free and open PHP opcode cacher for caching and optimizing PHP intermediate code. It's similar to other PHP opcode cachers, such as eAccelerator and Xcache. It is strongly recommended to have one of these installed to speed up your PHP page.

APC can be installed as follows:

apt-get install php-apc

Now reload PHP-FPM:

/etc/init.d/php5-fpm reload

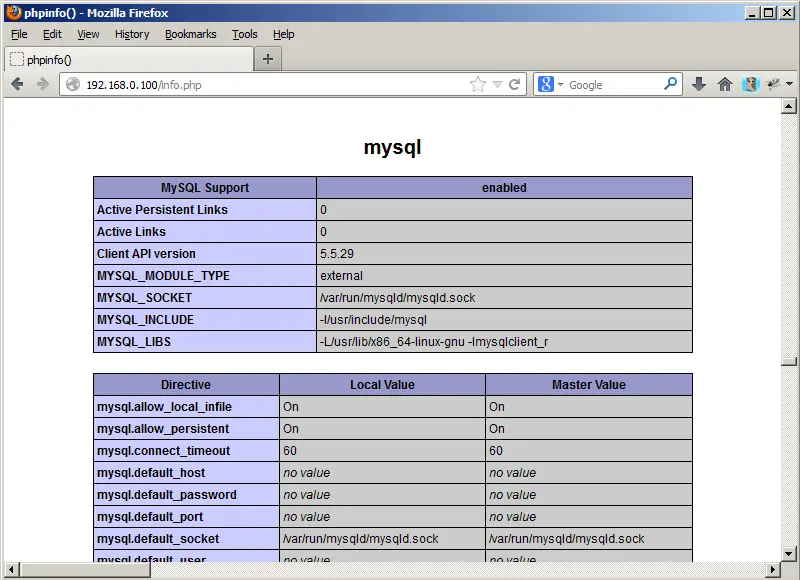

Now reload http://192.168.0.100/info.php in your browser and scroll down to the modules section again. You should now find lots of new modules there, including the MySQL module:



7 Making PHP-FPM Use A TCP Connection

By default PHP-FPM is listening on the socket /var/run/php5-fpm.sock. It is also possible to make PHP-FPM use a TCP connection. To do this, open /etc/php5/fpm/pool.d/www.conf...

vi /etc/php5/fpm/pool.d/www.conf

... and make the listen line look as follows:

[...]
;listen = /var/run/php5-fpm.sock
listen = 127.0.0.1:9000
[...]

This will make PHP-FPM listen on port 9000 on the IP 127.0.0.1 (localhost). Make sure you use a port that is not in use on your system.

Then reload PHP-FPM:

/etc/init.d/php5-fpm reload

Next go through your nginx configuration and all your vhosts and change the line fastcgi_pass unix:/var/run/php5-fpm.sock; to fastcgi_pass 127.0.0.1:9000;, e.g. like this:

vi /etc/nginx/sites-available/default

[...]
        location ~ \.php$ {
                try_files $uri =404;
                fastcgi_split_path_info ^(.+\.php)(/.+)$;
                # NOTE: You should have "cgi.fix_pathinfo = 0;" in php.ini

                # With php5-cgi alone:
                fastcgi_pass 127.0.0.1:9000;
                # With php5-fpm:
                #fastcgi_pass unix:/var/run/php5-fpm.sock;
                fastcgi_index index.php;
                include fastcgi_params;
        }
[...]

Finally reload nginx:

/etc/init.d/nginx reload



8 CGI/Perl Scripts

If you want to serve CGI/Perl scripts with nginx, please read this tutorial: Serving CGI Scripts With Nginx On Debian Squeeze/Ubuntu 11.04

The recommended way is to use fcgiwrap (chapter 4).



9 Links



About The Author

Falko Timme is the owner of nginx WebhostingTimme Hosting (ultra-fast nginx web hosting). He is the lead maintainer of HowtoForge (since 2005) and one of the core developers of ISPConfig (since 2000). He has also contributed to the O'Reilly book "Linux System Administration".
