Installing Nginx With PHP5 And MySQL Support On Ubuntu 8.10

Want to support HowtoForge? Become a subscriber!

Submitted by falko (Contact Author) (Forums) on Thu, 2009-01-08 17:21. :: Ubuntu | nginx

Installing Nginx With PHP5 And MySQL Support On Ubuntu 8.10

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Last edited 12/09/2008

Nginx (pronounced "engine x") is a free, open-source, high-performance HTTP server. Nginx is known for its stability, rich feature set, simple configuration, and low resource consumption. This tutorial shows how you can install Nginx on an Ubuntu 8.10 server with PHP5 support (through FastCGI) and MySQL support.

I do not issue any guarantee that this will work for you!



1 Preliminary Note

In this tutorial I use the hostname server1.example.com with the IP address 192.168.0.100. These settings might differ for you, so you have to replace them where appropriate.



2 Installing MySQL 5.0

In order to install MySQL, we run

apt-get install mysql-server mysql-client

You will be asked to provide a password for the MySQL root user - this password is valid for the user root@localhost as well as root@server1.example.com, so we don't have to specify a MySQL root password manually later on:

New password for the MySQL "root" user: <-- yourrootsqlpassword
Repeat password for the MySQL "root" user: <-- yourrootsqlpassword



3 Installing Nginx

Nginx is available as a package for Ubuntu 8.10 which we can install as follows:

apt-get install nginx

Start nginx afterwards:

/etc/init.d/nginx start

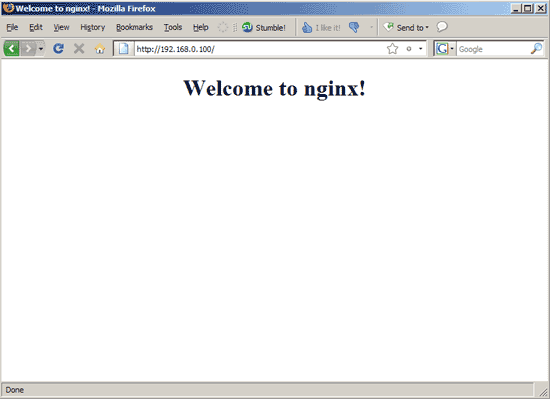

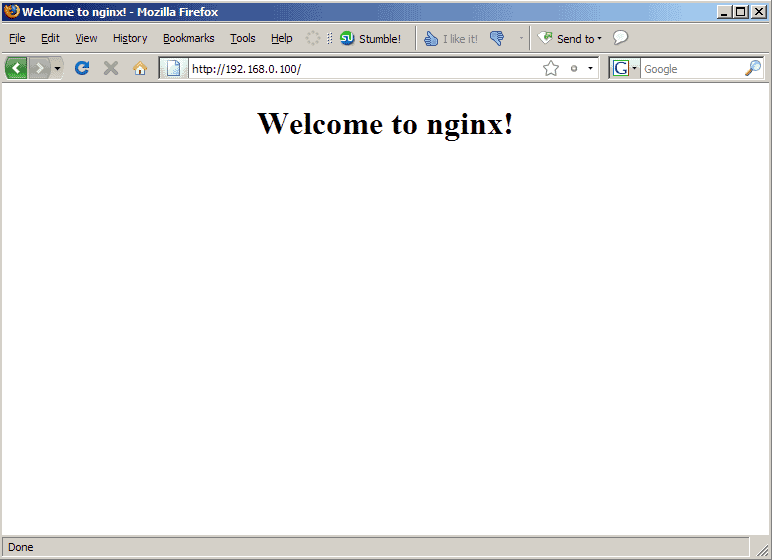

Type in your web server's IP address or hostname into a browser (e.g. http://192.168.0.100), and you should see the nginx welcome page:

To make nginx start at boot time, run

update-rc.d nginx defaults



4 Installing PHP5

We can make PHP5 work in nginx through FastCGI. Fortunately, Ubuntu provides a FastCGI-enabled PHP5 package which we install like this (together with some PHP5 modules like php5-mysql which you need if you want to use MySQL from your PHP scripts):

apt-get install php5-cgi php5-mysql php5-curl php5-gd php5-idn php-pear php5-imagick php5-imap php5-mcrypt php5-memcache php5-mhash php5-ming php5-pspell php5-recode php5-snmp php5-sqlite php5-tidy php5-xmlrpc php5-xsl

Then open /etc/php5/cgi/php.ini and add the line cgi.fix_pathinfo = 1 right at the end of the file:

vi /etc/php5/cgi/php.ini

[...]
cgi.fix_pathinfo = 1

There's no standalone FastCGI daemon package for Ubuntu, therefore we use the spawn-fcgi program from lighttpd. We install lighttpd as follows:

apt-get install lighttpd

You will see an error message saying that lighttpd couldn't start because port 80 is already in use. That's how it's supposed to be because nginx is already listening on port 80. Run

update-rc.d -f lighttpd remove

so that lighttpd will not start at boot time.

We've installed lighttpd because we need just one program that comes with the package, /usr/bin/spawn-fcgi, which we can use to start FastCGI processes. Take a look at

spawn-fcgi --help

to learn more about it.

To start a PHP FastCGI daemon listening on port 9000 on localhost and running as the user and group www-data, we run the following command:

/usr/bin/spawn-fcgi -a 127.0.0.1 -p 9000 -u www-data -g www-data -f /usr/bin/php5-cgi -P /var/run/fastcgi-php.pid

Of course, you don't want to type in that command manually whenever you boot the system, so to have the system execute the command automatically at boot time, open /etc/rc.local...

vi /etc/rc.local

... and add the command at the end of the file (before the exit line):

[...]
/usr/bin/spawn-fcgi -a 127.0.0.1 -p 9000 -u www-data -g www-data -f /usr/bin/php5-cgi -P /var/run/fastcgi-php.pid
[...]



5 Configuring nginx

The nginx configuration is in /etc/nginx/nginx.conf which we open now:

vi /etc/nginx/nginx.conf

The configuration is easy to understand (you can learn more about it here: http://wiki.codemongers.com/NginxFullExample and here: http://wiki.codemongers.com/NginxFullExample2)

First (this is optional) increase the number of worker processes and set the keepalive_timeout to a reasonable value:

[...]
worker_processes  5;
[...]
    keepalive_timeout  2;
[...]

The virtual hosts are defined in server {} containers. The default vhost is defined in the file /etc/nginx/sites-available/default - let's modify it as follows:

vi /etc/nginx/sites-available/default

[...]
server {
        listen   80;
        server_name  _;

        access_log  /var/log/nginx/localhost.access.log;

        location / {
                root   /var/www/nginx-default;
                index  index.php index.html index.htm;
        }

        location /doc {
                root   /usr/share;
                autoindex on;
                allow 127.0.0.1;
                deny all;
        }

        location /images {
                root   /usr/share;
                autoindex on;
        }

        #error_page  404  /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
                root   /var/www/nginx-default;
        }

        # proxy the PHP scripts to Apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
                #proxy_pass   http://127.0.0.1;
        #}

        # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
        #
        location ~ \.php$ {
                fastcgi_pass   127.0.0.1:9000;
                fastcgi_index  index.php;
                fastcgi_param  SCRIPT_FILENAME  /var/www/nginx-default$fastcgi_script_name;
                include        fastcgi_params;
        }

        # deny access to .htaccess files, if Apache's document root
        # concurs with nginx's one
        #
        location ~ /\.ht {
                deny  all;
        }
}
[...]

server_name _; makes this a default catchall vhost (of course, you can as well specify a hostname here like www.example.com).

In the location / part, I've added index.php to the index line. root /var/www/nginx-default; means that the document root is the directory /var/www/nginx-default.

The important part for PHP is the location ~ \.php$ {} stanza. Uncomment it to enable it. Please make sure that you change the fastcgi_param line to fastcgi_param SCRIPT_FILENAME /var/www/nginx-default$fastcgi_script_name; (replace /var/www/nginx-default with your vhost's document root) because otherwise the PHP interpreter won't find the PHP script that you call in your browser.

Make sure that there are some spaces between include and fastcgi_params; - in the default file this is written as one word which is a bug.

Now save the file and restart nginx:

/etc/init.d/nginx restart

Now create the following PHP file in the document root /var/www/nginx-default:

vi /var/www/nginx-default/info.php

<?php
phpinfo();
?>

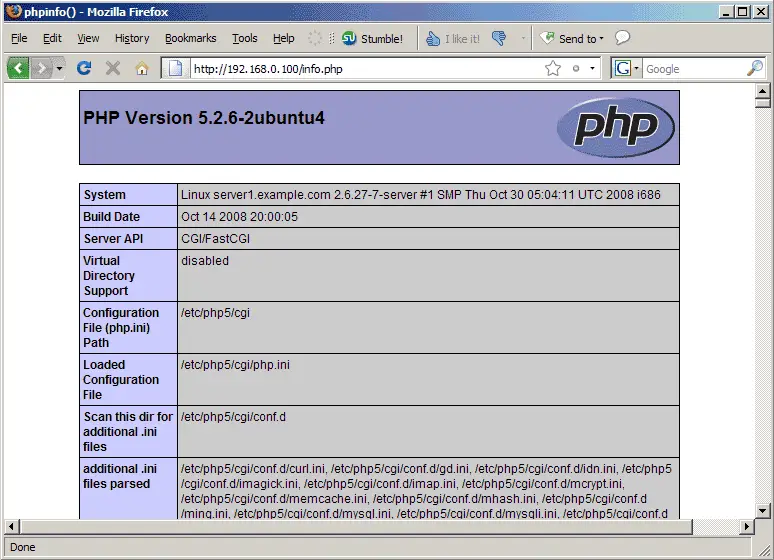

Now we call that file in a browser (e.g. http://192.168.0.100/info.php):

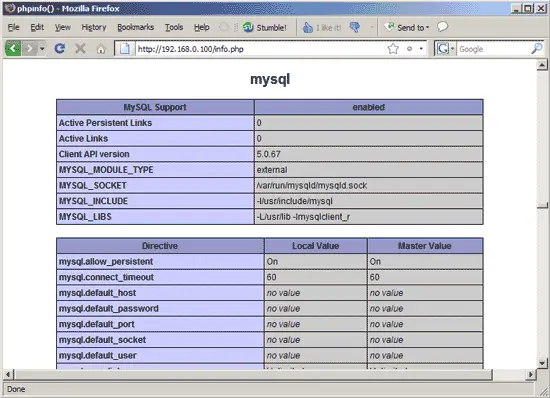

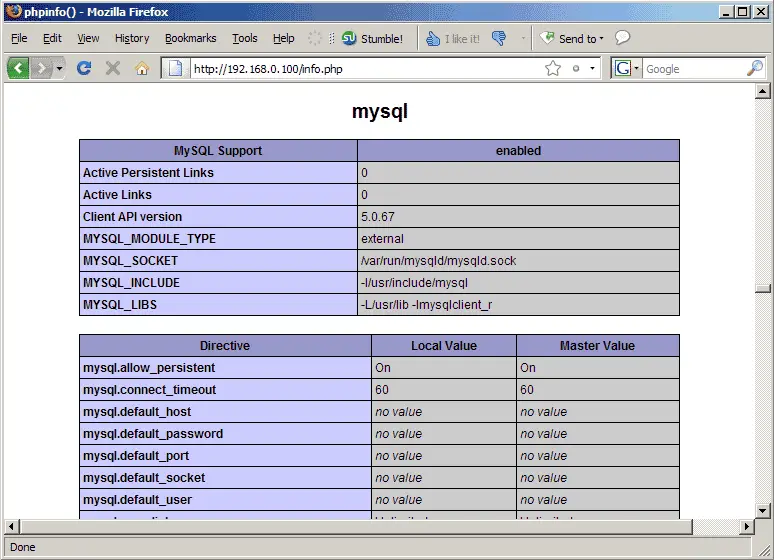

As you see, PHP5 is working, and it's working through FastCGI, as shown in the Server API line. If you scroll further down, you will see all modules that are already enabled in PHP5, including the MySQL module:



6 Links
