Importing iptables Configurations Into Firewall Builder

Author: Mike Horn <mike [at] netcitadel [dot] com>
http://www.fwbuilder.org

Firewall Builder is a firewall configuration and management GUI that supports configuring a wide range of firewalls from a single application. Supported firewalls include Linux iptables, BSD pf, Cisco ASA/PIX, Cisco router access lists and many more. The complete list of supported platforms along with downloadable binary packages and soure code can be found at http://www.fwbuilder.org.

Import of existing iptables configurations was greatly improved in the recently released Firewall Builder V4.2. Features like object de-duplication and expanded rules recognition make it even easier to get started using Firewall Builder to manage your iptables configurations.

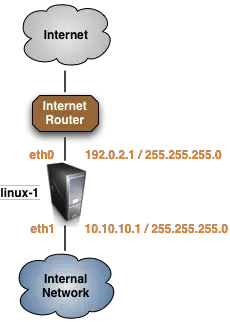

For this tutorial we are going to import a very basic iptables configuration from a firewall that matches the diagram shown below.

Firewall Builder imports iptables configs in the format of iptables-save. Script iptables-save is part of the standard iptables install and should be present on all Linux distribution. Usually this script is installed in /sbin/.

When you run this script, it dumps the current iptables configuration to stdout. It reads iptables rules directly form the kernel rather than from some file, so what it dumps is what is really working right now. To import this into Firewall Builder, run the script to save the configuration to a file:

iptables-save > linux-1.conf

As you can see in the output below, the example linux-1.conf iptables configuration is very simple with only a few filter rules and one nat rule.

# Completed on Mon Apr 11 21:23:33 2011
# Generated by iptables-save v1.4.4 on Mon Apr 11 21:23:33 2011
*filter
:INPUT DROP [145:17050]
:FORWARD DROP [0:0]
:OUTPUT DROP [1724:72408]
:LOGDROP - [0:0]
-A INPUT -m state --state RELATED,ESTABLISHED -j ACCEPT
-A INPUT -i eth1 -s 10.10.10.0/24 -d 10.10.10.1/32 -p tcp -m tcp --dport 22 -m state --state NEW -j ACCEPT
-A FORWARD -m state --state RELATED,ESTABLISHED -j ACCEPT
-A FORWARD -o eth0 -s 10.10.10.0/24 -p tcp -m tcp --dport 80 -m state --state NEW -j ACCEPT
-A FORWARD -o eth0 -s 10.10.10.0/24 -p tcp -m tcp --dport 443 -m state --state NEW -j ACCEPT
-A FORWARD -j LOGDROP
-A LOGDROP -j LOG
-A LOGDROP -j DROP
COMMIT
# Completed on Mon Apr 11 21:23:33 2011
# Generated by iptables-save v1.4.4 on Mon Apr 11 21:23:33 2011
*nat
:PREROUTING ACCEPT [165114:22904965]
:OUTPUT ACCEPT [20:1160]
:POSTROUTING ACCEPT [20:1160]
-A POSTROUTING -s 10.10.10.0/24 -o eth0 -j MASQUERADE
COMMIT
# Completed on Mon Apr 11 21:23:33 2011

If you are running Firewall Builder on a different system than the one that is running iptables copy the file linux-1.conf from the firewall to the system where Firewall Builder is running.

Launch the Import wizard by selecting the File -> Import Firewall menu item.

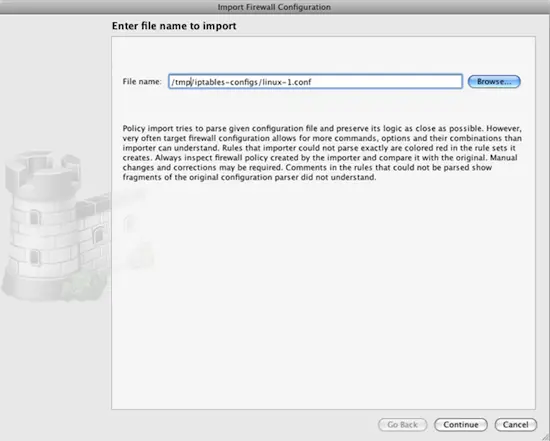

Click Browse to find the file named linux-1.conf.

Click the Continue button to move to the next step of the import process.

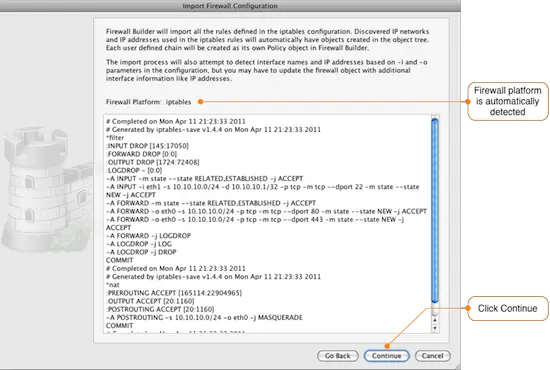

The next window shows a preview of the configuration file that will be imported and the type of firewall that Firewall Builder has detected it to be.

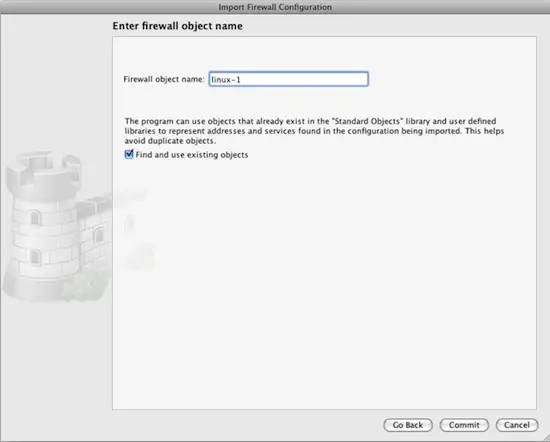

Next you need to enter a name for the firewall. This is the name that will be used in Firewall Builder to refer to the firewall after it is imported. When you click the Commit button the configuration data will be read.

By default, Firewall Builder attempts to detect if there are items, like IP addresses, used in the rules that match existing items in the object tree. If there is a match the existing item is used, if there is no match a new object is created. This feature can be disabled by unchecking the box next to "Find and use existing objects" which will result in objects being created for evry item used in the imported rules regardless of whether it already exists in the object tree or not.

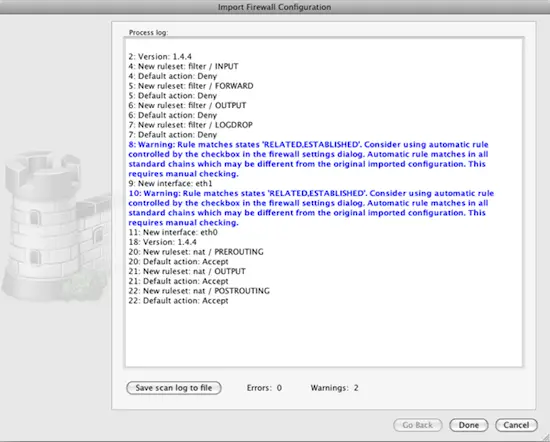

After the import is complete, Firewall Builder displays a log showing all the actions that were taken during the import. Warning messages are displayed in blue font and error messages are displayed in red.

The program tries to interpret the configuration file rule by rule and recreates the equivalent rule in Firewall Builder. Note that rules imported into Firewall Builder may not always be optimized since features like defining multiple source and/or destinations are supported by Firewall Builder, but not by iptables.

The progress window displays warning and error messages, if any, as well as some diagnostics that shows network and service objects created in the process.

As you can see from the import process log, Firewall Builder detected that there are rules in the iptables configuration that allow RELATED and ESTABLISHED traffic through the firewall. This behavior can be controlled by a setting in Firewall Builder, so a warning message is shown.

Click the Done button to complete the firewall import. Next we will go through some common post-import actions.
