Submitted by wintel2006 (Contact Author) (Forums) on Wed, 2011-05-11 16:27. ::

Step 2. Now download drbd 8.3.9 which matches the kernel built-in module, unzip it, and prepare the installation on both servers

cd ../

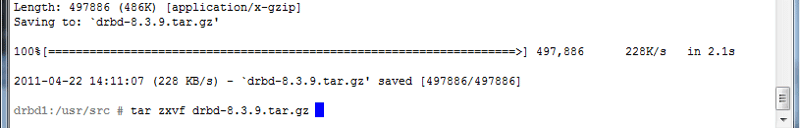

wget http://oss.linbit.com/drbd/8.3/drbd-8.3.9.tar.gz
tar zxvf drbd-8.3.9.tar.gz

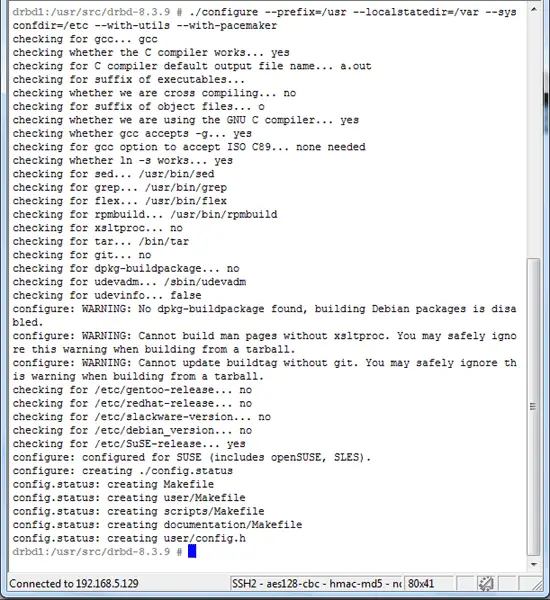

Now compile drbd (I need to enable pacemaker for heartbeat cluster purposes). See the following four screenshots please.

cd drbd-8.3.9/

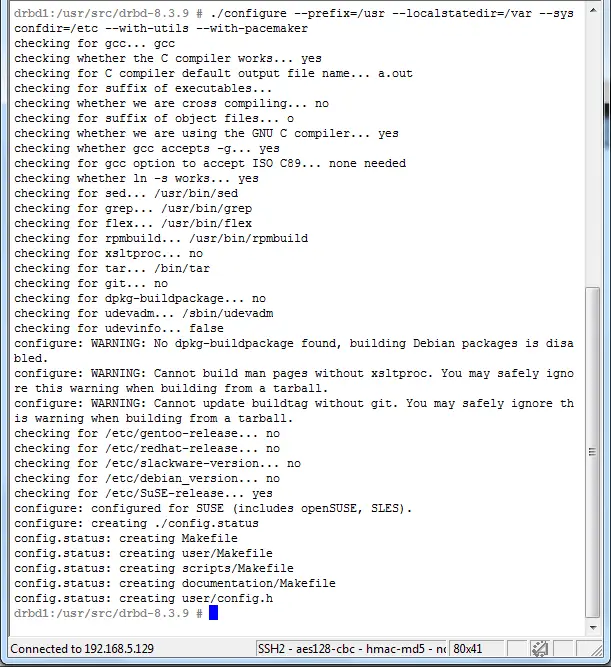

./configure --prefix=/usr --localstatedir=/var --sysconfdir=/etc --with-utils --with-pacemaker

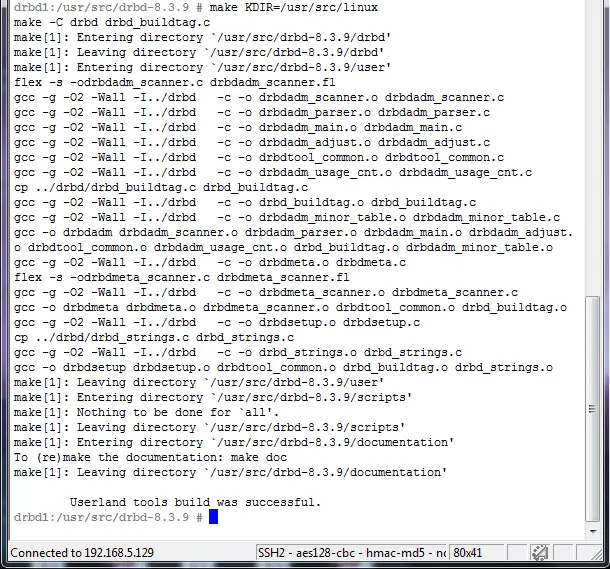

make KDIR=/usr/src/linux

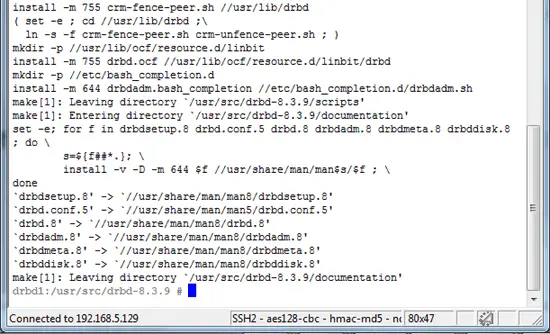

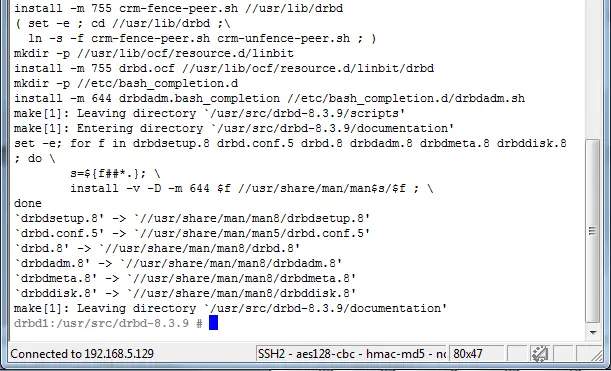

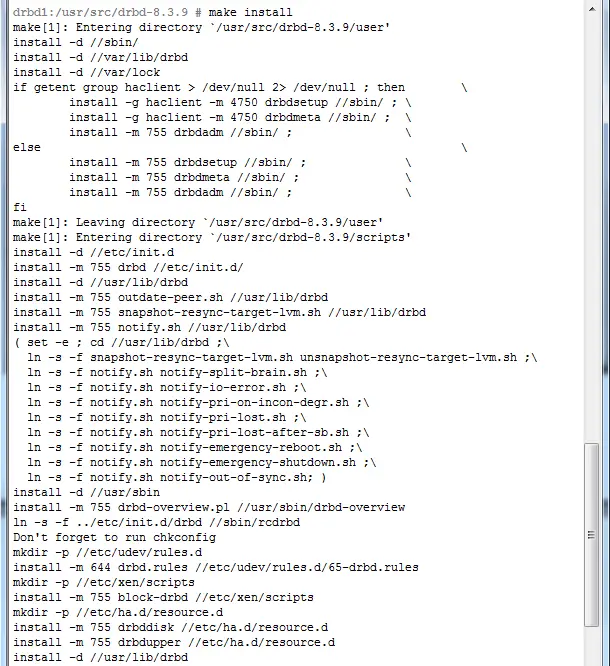

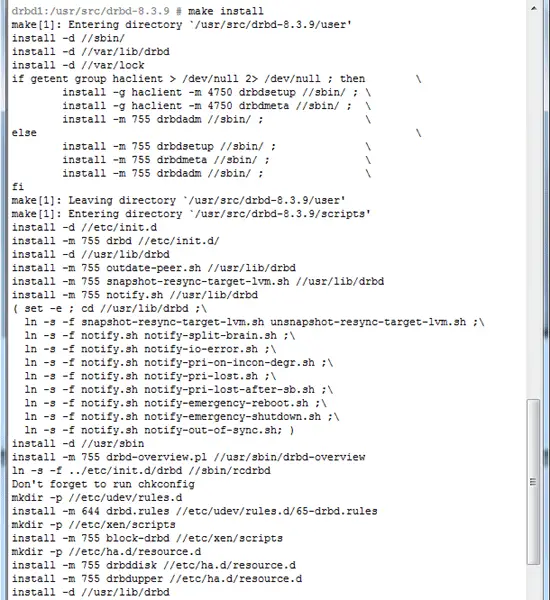

make install

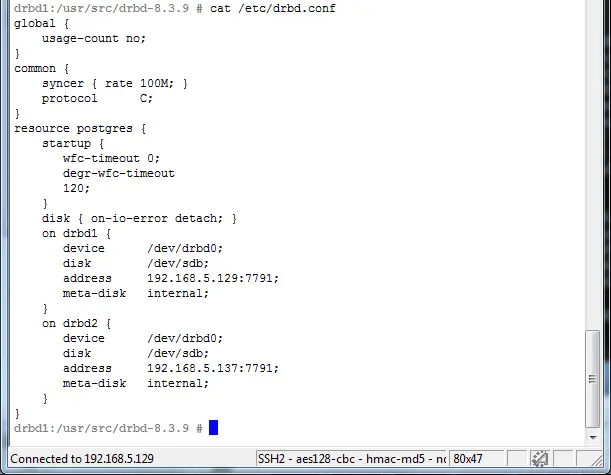

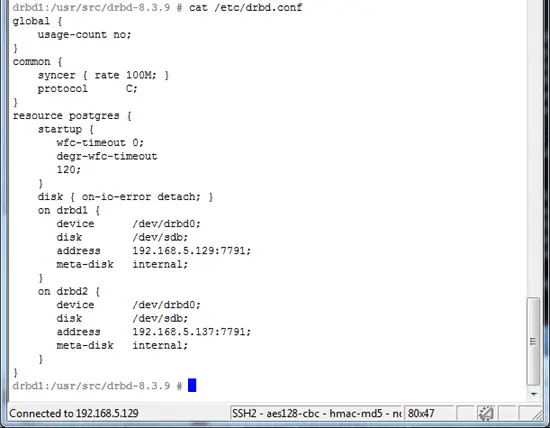

Now create the default /etc/drbd.conf configuration file, and this is my configuration file:

global {
    usage-count no;
}
common {
    syncer { rate 100M; }
    protocol      C;
}
resource postgres {
    startup {
       wfc-timeout 0;
       degr-wfc-timeout
       120;
    }
    disk { on-io-error detach; }
    on drbd1 {
       device      /dev/drbd0;
       disk        /dev/sdb;
       address     192.168.5.129:7791;
       meta-disk   internal;
    }
    on drbd2 {
       device      /dev/drbd0;
       disk        /dev/sdb;
       address     192.168.5.137:7791;
       meta-disk   internal;
    }
}

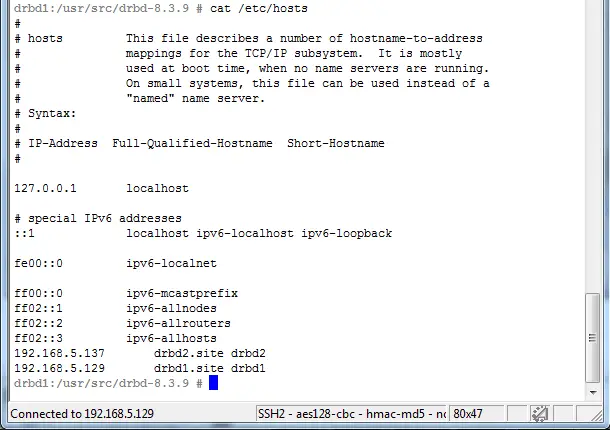

And here is the /etc/hosts file on drbd1:

192.168.5.137       drbd2.site drbd2
192.168.5.129       drbd1.site drbd1

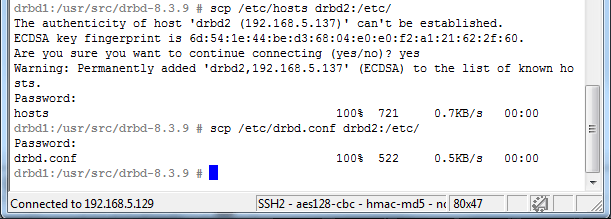

Step 3. Copy /etc/drbd.conf and /etc/hosts from server drbd1 to server drbd2

scp /etc/hosts drbd2:/etc
scp /etc/drbd.conf drbd2:/etc

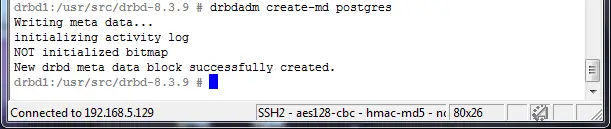

Step 4. Configure DRBD on both drbd1 and drbd2

drbdadm create-md postgres
modprobe drbd
drbdadm up postgres

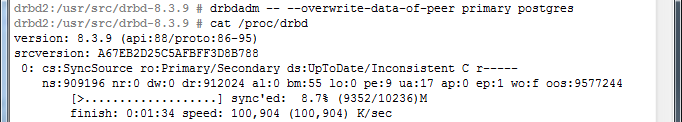

Step 5. Now activate the primary node on either server, drbd1 or drbd2 (NOT BOTH), and I choose drbd2:

drbdadm -- --overwrite-data-of-peer primary postgres

You could check the initialization process on both servers with:

cat /proc/drbd

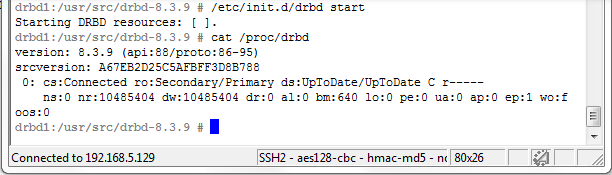

Step 6. Start drbd server on both servers

/etc/init.d/drbd start

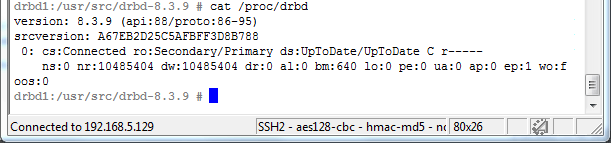

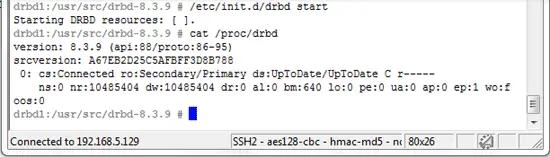

Check drbd status on server drbd1 (secondary/primary):

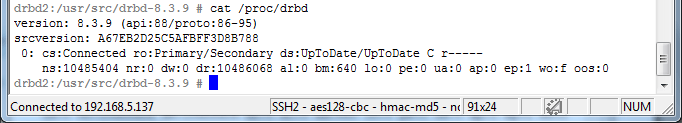

And check drbd status on server drbd2 (primary/secondary):

Bingo, it works now. From this point you can go ahead and test drbd, mysql/postgresql active/passive server. There are tons of documentations online talking about this topic.
