How To Build PHP 5.6-beta3 (PHP-FPM & FastCGI) With ionCube Loader, Zend OPcache And APCu For ISPConfig 3 (Debian Wheezy)

Want to support HowtoForge? Become a subscriber!

Submitted by howtoforge (Contact Author) (Forums) on Fri, 2014-05-30 09:22. :: Debian | Web Server | Apache | nginx | PHP

How To Build PHP 5.6-beta3 (PHP-FPM & FastCGI) With ionCube Loader, Zend OPcache And APCu For ISPConfig 3 (Debian Wheezy)

Version 1.0
Authors: Falko Timme, Srijan Kishore
Last edited 22/May/2014

Since ISPConfig 3.0.5, it is possible to use multiple PHP versions on one server and select the optimal PHP version for a website. This feature works with PHP-FPM (starting with PHP 5.3) and FastCGI (all PHP 5.x versions). This tutorial shows how to build PHP 5.5 as a PHP-FPM and a FastCGI version on a Debian Wheezy server. These PHP 5.6 builds include the ionCube Loader, Zend OPcache, and APCu.

I do not issue any guarantee that this will work for you!



1 Preliminary Note

I will install PHP 5.6.0beta3, the latest PHP 5.6.0beta3 version at the time of this writing. I will also show how to build some additional PHP extensions such as APCu, memcache, memcached, and ioncube.

Please note that PHP-FPM can be used on both Apache and nginx servers, while FastCGI is available only for Apache servers.

PHP-FPM and FastCGI are mutually exclusive in PHP 5.6.0beta3, that's why I show two ways of building PHP, one for PHP-FPM, one for FastCGI, however you can compile PHP twice to get both, one time with --enable-fpm and one time with --enable-cgi (make sure to use different base directories, such as /opt/php-5.6.0beta3 for PHP-FPM and /opt/phpfcgi-5.6.0beta3 for FastCGI).



2 Building PHP 5.6.0beta3 (PHP-FPM)

Download the PHP sources with wget from php.net and extract PHP 5.6.0beta3:

mkdir /opt/php-5.6.0beta3
mkdir /usr/local/src/php5-build
cd /usr/local/src/php5-build
wget http://downloads.php.net/tyrael/php-5.6.0beta3.tar.bz2
tar jxf php-5.6.0beta3.tar.bz2

cd php-5.6.0beta3/

Install the prerequisites for building PHP5:

apt-get install build-essential

apt-get build-dep php5

apt-get install libfcgi-dev libfcgi0ldbl libjpeg62-dbg libmcrypt-dev libssl-dev libc-client2007e libc-client2007e-dev

ln -s /usr/lib/libc-client.a /usr/lib/x86_64-linux-gnu/libc-client.a

(The last command is needed if you build PHP with --with-imap, because otherwise ./configure will stop with the following error:

checking for crypt in -lcrypt... yes
configure: error: Cannot find imap library (libc-client.a). Please check your c-client installation.
root@server1:/usr/local/src/php5-build/php-5.6.0beta3#

)

Configure and build PHP 5.6.0beta3 as follows (you can adjust the ./configure command to your needs, take a look at

./configure --help

to see all available options; if you use a different ./configure command, it is possible that additional libraries are required, or the build process will fail):

./configure \
--prefix=/opt/php-5.6.0beta3 \
--with-pdo-pgsql \
--with-zlib-dir \
--with-freetype-dir \
--enable-mbstring \
--with-libxml-dir=/usr \
--enable-soap \
--enable-calendar \
--with-curl \
--with-mcrypt \
--with-zlib \
--with-gd \
--with-pgsql \
--disable-rpath \
--enable-inline-optimization \
--with-bz2 \
--with-zlib \
--enable-sockets \
--enable-sysvsem \
--enable-sysvshm \
--enable-pcntl \
--enable-mbregex \
--enable-exif \
--with-mhash \
--enable-zip \
--with-pcre-regex \
--with-mysql \
--with-pdo-mysql \
--with-mysqli \
--with-jpeg-dir=/usr \
--with-png-dir=/usr \
--enable-gd-native-ttf \
--with-openssl \
--with-fpm-user=www-data \
--with-fpm-group=www-data \
--with-libdir=/lib/x86_64-linux-gnu \
--enable-ftp \
--with-imap \
--with-imap-ssl \
--with-kerberos \
--with-gettext \
--with-xmlrpc \
--enable-opcache \
--enable-fpm

The last switch (--enable-fpm) makes sure this PHP version will work with PHP-FPM.

make
make test
make install

Copy php.ini and php-fpm.conf to the correct locations:

cp /usr/local/src/php5-build/php-5.6.0beta3/php.ini-production /opt/php-5.6.0beta3/lib/php.ini

cp /opt/php-5.6.0beta3/etc/php-fpm.conf.default /opt/php-5.6.0beta3/etc/php-fpm.conf

Open /opt/php-5.6.0beta3/etc/php-fpm.conf and adjust the following settings - in the listen line you must use an unused port (e.g. 8999; port 9000 might be in use by Debian's default PHP-FPM already), and you must add the line include=/opt/php-5.6.0beta3/etc/pool.d/*.conf at the end:

vi /opt/php-5.6.0beta3/etc/php-fpm.conf

[...]
pid = run/php-fpm.pid
[...]
user = www-data
group = www-data
[...]
listen = 127.0.0.1:8999
[...]
include=/opt/php-5.6.0beta3/etc/pool.d/*.conf

Create the pool directory for PHP-FPM:

mkdir /opt/php-5.6.0beta3/etc/pool.d/

Next create an init script for PHP-FPM:

vi /etc/init.d/php-5.6.0-fpm

#! /bin/sh
### BEGIN INIT INFO
# Provides:          php-5.6.0-fpm
# Required-Start:    $all
# Required-Stop:     $all
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: starts php-5.6.0-fpm
# Description:       starts the PHP FastCGI Process Manager daemon
### END INIT INFO
php_fpm_BIN=/opt/php-5.6.0beta3/sbin/php-fpm
php_fpm_CONF=/opt/php-5.6.0beta3/etc/php-fpm.conf
php_fpm_PID=/opt/php-5.6.0beta3/var/run/php-fpm.pid
php_opts="--fpm-config $php_fpm_CONF"
wait_for_pid () {
        try=0
        while test $try -lt 35 ; do
                case "$1" in
                        'created')
                        if [ -f "$2" ] ; then
                                try=''
                                break
                        fi
                        ;;
                        'removed')
                        if [ ! -f "$2" ] ; then
                                try=''
                                break
                        fi
                        ;;
                esac
                echo -n .
                try=`expr $try + 1`
                sleep 1
        done
}
case "$1" in
        start)
                echo -n "Starting php-fpm "
                $php_fpm_BIN $php_opts
                if [ "$?" != 0 ] ; then
                        echo " failed"
                        exit 1
                fi
                wait_for_pid created $php_fpm_PID
                if [ -n "$try" ] ; then
                        echo " failed"
                        exit 1
                else
                        echo " done"
                fi
        ;;
        stop)
                echo -n "Gracefully shutting down php-fpm "
                if [ ! -r $php_fpm_PID ] ; then
                        echo "warning, no pid file found - php-fpm is not running ?"
                        exit 1
                fi
                kill -QUIT `cat $php_fpm_PID`
                wait_for_pid removed $php_fpm_PID
                if [ -n "$try" ] ; then
                        echo " failed. Use force-exit"
                        exit 1
                else
                        echo " done"
                       echo " done"
                fi
        ;;
        force-quit)
                echo -n "Terminating php-fpm "
                if [ ! -r $php_fpm_PID ] ; then
                        echo "warning, no pid file found - php-fpm is not running ?"
                        exit 1
                fi
                kill -TERM `cat $php_fpm_PID`
                wait_for_pid removed $php_fpm_PID
                if [ -n "$try" ] ; then
                        echo " failed"
                        exit 1
                else
                        echo " done"
                fi
        ;;
        restart)
                $0 stop
                $0 start
        ;;
        reload)
                echo -n "Reload service php-fpm "
                if [ ! -r $php_fpm_PID ] ; then
                        echo "warning, no pid file found - php-fpm is not running ?"
                        exit 1
                fi
                kill -USR2 `cat $php_fpm_PID`
                echo " done"
        ;;
        *)
                echo "Usage: $0 {start|stop|force-quit|restart|reload}"
                exit 1
        ;;
esac

Make the init script executable and create the system startup links:

chmod 755 /etc/init.d/php-5.6.0-fpm
insserv php-5.6.0-fpm

Finally start PHP-FPM:

/etc/init.d/php-5.6.0-fpm start

As long as there are no pools in /opt/php-5.6.0beta3/etc/pool.d, you will get this warning which you can ignore:

root@server1:~# /etc/init.d/php-5.6.0-fpm start
Starting php-fpm [22-May-2014 03:14:39] WARNING: Nothing matches the include pattern '/opt/php-5.6.0beta3/etc/pool.d/*.conf' from /opt/php-5.6.0beta3/etc/php-fpm.conf at line 529.
 done
root@server1:~#

To enable the Zend OPcache, open /opt/php-5.6.0beta3/lib/php.ini...

vi /opt/php-5.6.0beta3/lib/php.ini

... and add the following line at the end:

[...]
zend_extension=opcache.so

That's it - if you like, you can now install some additional modules like APCu, memcache, memcached, and ioncube.

Note: memcached is not supported yet in beta3

The APCu, memcache, and memcached modules can be installed through PEAR which we must install and initialize first:

apt-get -y install php-pear php5-dev

cd /opt/php-5.6.0beta3/etc/

pecl -C ./pear.conf update-channels

APCu can now be installed as follows:

pecl -C ./pear.conf install channel://pecl.php.net/apcu-4.0.4

Accept all default values. Afterwards, open /opt/php-5.6.0beta3/lib/php.ini...

vi /opt/php-5.6.0beta3/lib/php.ini

... and add the line extension=apcu.so at the end of the file (you can also configure some additional APCu settings):

[...]
extension=apcu.so
apc.enabled=1
apc.shm_size=128M
apc.ttl=0
apc.gc_ttl=600
apc.enable_cli=1
apc.mmap_file_mask=/tmp/apc.XXXXXX
;apc.mmap_file_mask=/dev/zero
;apc.shm_segments = 5

The memcache extension can be installed as follows:

pecl -C ./pear.conf install memcache

Open /opt/php-5.6.0beta3/lib/php.ini...

vi /opt/php-5.6.0beta3/lib/php.ini

... and add the line extension=memcache.so at the end of the file:

[...]
extension=memcache.so

Since January 3, the ionCube loader is available for PHP 5.5. The ionCube Loader can be installed as follows:

cd /tmp

Next download and unpack the correct ionCube Loader package for your architecture (x86_64 or x86).

For x86_64:

wget http://downloads2.ioncube.com/loader_downloads/ioncube_loaders_lin_x86-64.tar.gz
tar xfvz ioncube_loaders_lin_x86-64.tar.gz

For x86:

wget http://downloads2.ioncube.com/loader_downloads/ioncube_loaders_lin_x86.tar.gz
tar xfvz ioncube_loaders_lin_x86.tar.gz

Proceed as follows:

cp ioncube/ioncube_loader_lin_5.5.so /opt/php-5.6.0beta3/lib/php/extensions/no-debug-non-zts-20131226/ioncube.so
vi /opt/php-5.6.0beta3/lib/php.ini

Add the line zend_extension = /opt/php-5.6.0beta3/lib/php/extensions/no-debug-non-zts-20131226/ioncube.so right at the beginning of the file (before the [PHP] line):

zend_extension = /opt/php-5.6.0beta3/lib/php/extensions/no-debug-non-zts-20131226/ioncube.so
[PHP]
[...]

Reload PHP-FPM afterwards:

/etc/init.d/php-5.6.0-fpm reload

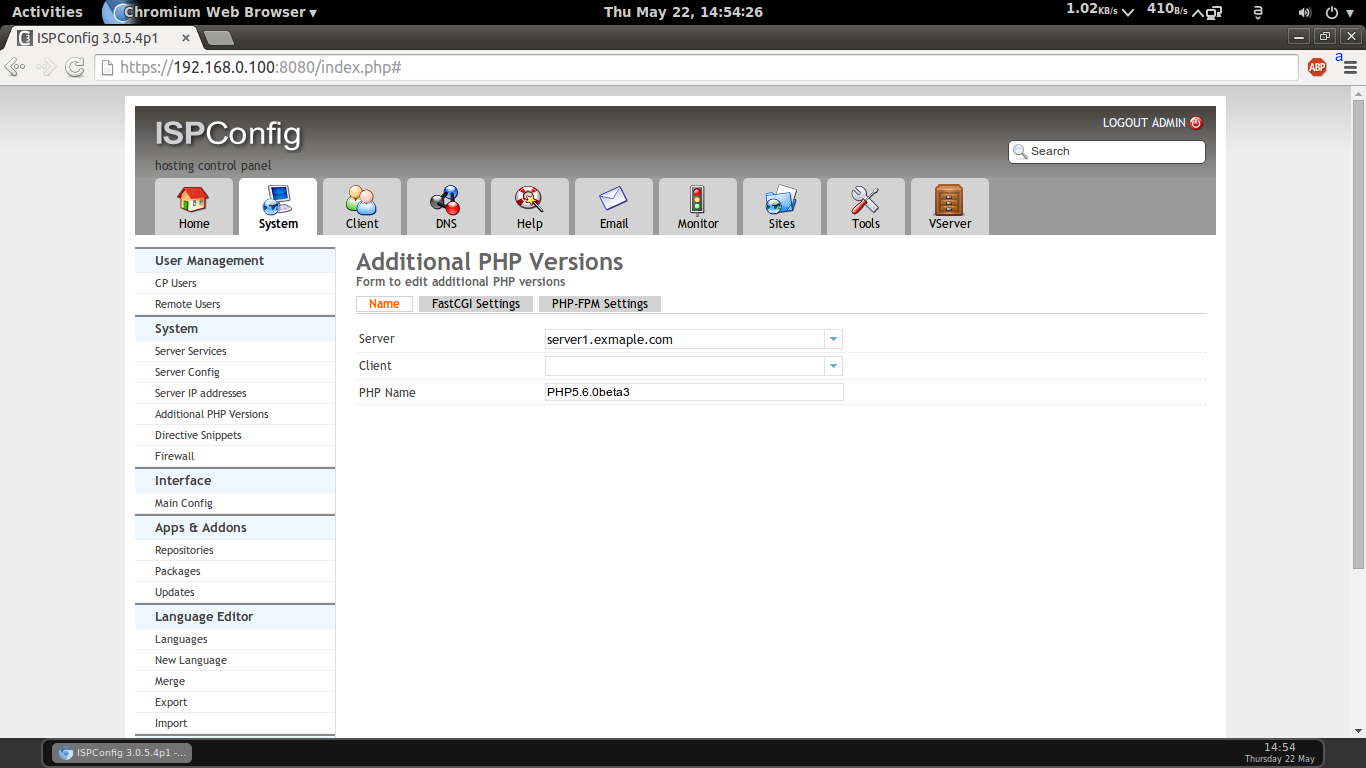

In ISPConfig 3.0.5, you can configure the new PHP version under System > Additional PHP Versions. On the Name tab, you just fill in a name for the PHP version (e.g. PHP 5.6.0beta3) - this PHP version will be listed under this name in the website settings in ISPConfig:

Click to enlarge

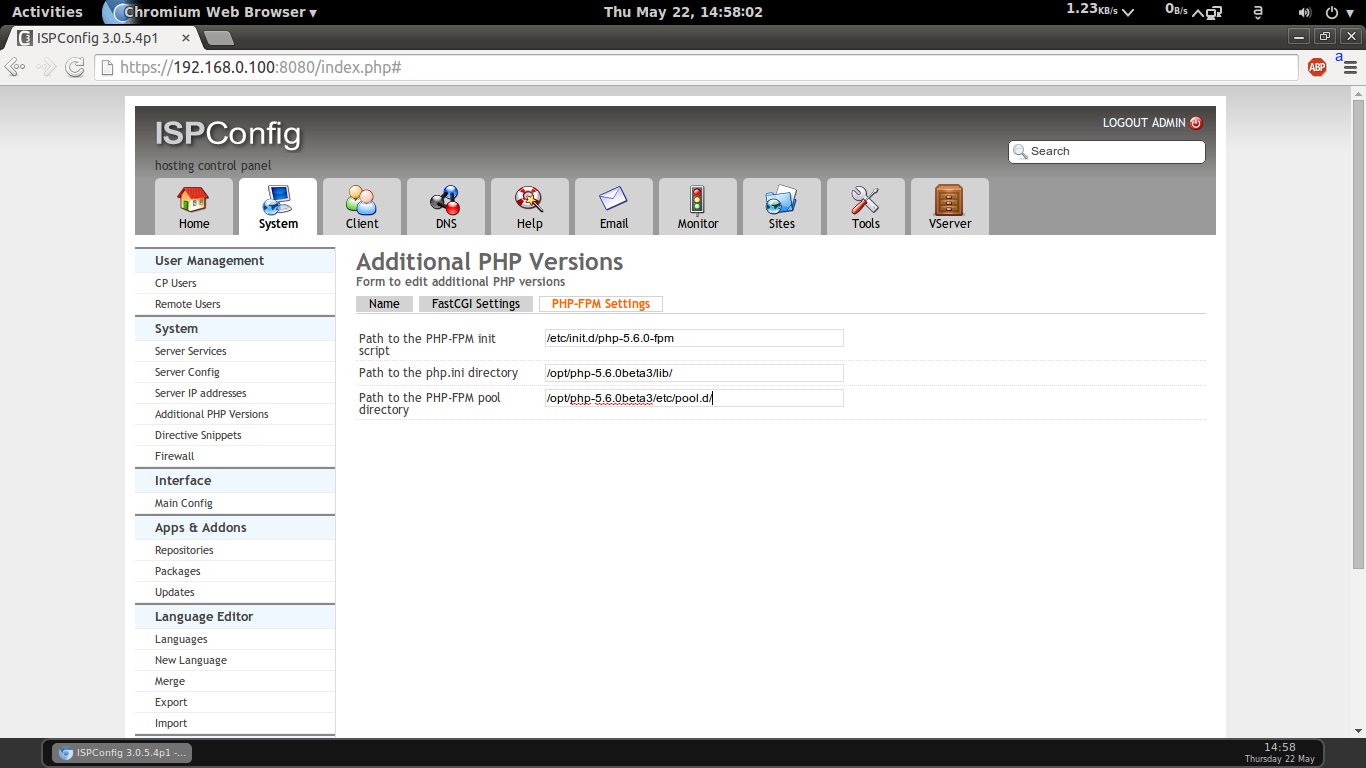

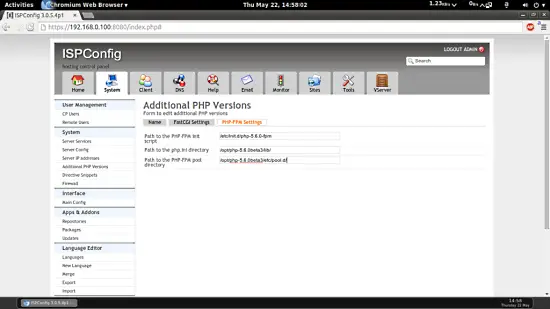

Go to the PHP-FPM Settings tab (the FastCGI Settings tab can be left empty) and fill out the fields as follows:

Click to enlarge
