Benchmark: Apache2 vs. Lighttpd (Static HTML Files)

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Last edited 09/16/2008

This benchmark shows how Apache2 (version 2.2.3) and lighttpd (version 1.4.13) perform compared to each other when delivering a static HTML file (about 50KB in size). This benchmark was created with the help of ab (Apache benchmark) on a VMware vm (Debian Etch); if you try this yourself, your numbers might differ (depending on your hardware), but the tendency should be the same.



Preliminary Note

I have tested this on a Debian Etch system with 512MB RAM inside a VMware vm on a system with an Intel(R) Pentium(R) M processor 1400MHz (yes, quite old, but as I said in the introduction, the tendency should be the same on other hardware).

Apache 2.2.3 mpm-prefork with default Debian configuration.

Lighttpd 1.4.13 with default Debian configuration.

The HTML file I've used to test is a copy of the HowtoForge frontpage with a size of 49128 bytes. I've saved it as test.html.

I've run the following commands ten times each and calculated the average requests per second that the web server could handle:

ab -n 100 -c 5 http://localhost/test.html

ab -n 1000 -c 5 http://localhost/test.html

ab -n 10000 -c 5 http://localhost/test.html

ab -n 100 -c 50 http://localhost/test.html

ab -n 1000 -c 50 http://localhost/test.html

ab -n 10000 -c 50 http://localhost/test.html

ab -n 100 -c 100 http://localhost/test.html

ab -n 1000 -c 100 http://localhost/test.html

ab -n 10000 -c 100 http://localhost/test.html

-n is the number of requests to perform for the benchmarking session; -c is the number of multiple requests to perform at a time.

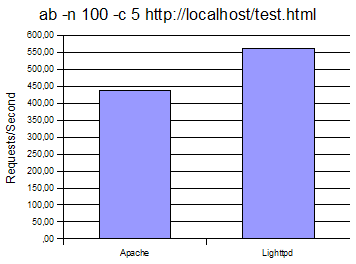

ab -n 100 -c 5 http://localhost/test.html

Apache: 437,58 requests/second

Lighttpd: 562,41 requests/second (+ 28,53%)

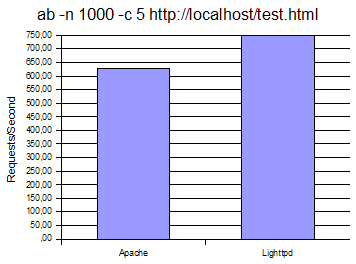

ab -n 1000 -c 5 http://localhost/test.html

Apache: 627,60 requests/second

Lighttpd: 749,15 requests/second (+ 19,37%)

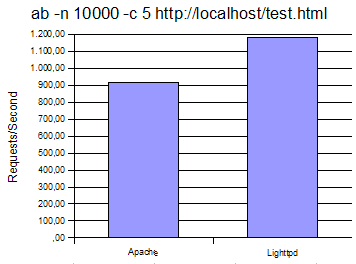

ab -n 10000 -c 5 http://localhost/test.html

Apache: 916,70 requests/second

Lighttpd: 1181,18 requests/second (+ 28,85%)


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by dim (not registered) on Mon, 2008-09-22 08:50.

You should use other tools for HTTP testing, 'ab' has a very limited scalability!

As workaround, you may start more 'ab' processes to reach higher workload, but using other tool anyway will give you a more realistic view...

Rgds,

-dim

Submitted by edenCC (registered user) on Fri, 2008-09-19 17:30.

I also did a benchmark among apache-2.63, lighttpd-1.4.19( PHP in FastCGI with eAccelerator), lighttpd-1.4.19( PHP in FastCGI without eAccelerator):

It's here: http://admon.org/uploads/doc/Apache-Lighttpd-with-FastCGI-Benchmark.html

Additionlly, three types of files are tested:

1, Dynamic PHP files with single command phpinfo();

2, Median size HTML file, 24KB

3, Large size JPG file, 188KB

Details is here

Submitted by Anonymous (not registered) on Mon, 2008-09-22 15:41.
You seem to have a problem in your test since all apache2 fields are filled with "apr_socket error" And I frankly would not believe that it is Apache2 is guilty that your test failed.
Submitted by edenCC (registered user) on Tue, 2008-09-23 04:13.

The apache is from the latest verion of WHM, without any twisting, and the concurrency request is 500, it's also too large to most of common websites. It's not a performance benchmark bwteen apache and lighttpd, but may proved the following two things:

- The default configured apache that provided by hosting providers is not a good choice, some twisting is needed.

- *Seems* that lighttpd with PHP running in FastCGI mode is a little better than working with some addtional memory management tools.(maybe wrong, need some further testings)

Thanks

-joseph
