The Perfect Server - Debian 10 (Nginx, BIND, Dovecot, ISPConfig 3.2)
This tutorial exists for these OS versions
- Debian 10 (Buster)
- Debian 9 (Stretch)
- Debian 8 (Jessie)
- Debian 7 (Wheezy)
- Debian 6 (Squeeze)
On this page
- 1 Preliminary Note
- 2 Install the SSH Server
- 3 Install a shell text editor (Optional)
- 4 Configure the Hostname
- 5 Update Your Debian Installation
- 6 Change the Default Shell
- 7 Synchronize the System Clock
- 8 Install Postfix, Dovecot, MySQL, rkhunter, and binutils
- 9 Install Amavisd-new, SpamAssassin, and ClamAV
- 10 Install Nginx, PHP (PHP-FPM), and Fcgiwrap
- 11 Install Let's Encrypt
- 12 Install Mailman
- 13 Install PureFTPd and Quota
- 14 Install BIND DNS Server
- 15 Install Webalizer, AWStats and GoAccess
- 16 Install Jailkit
- 17 Install Fail2ban and UFW Firewall
- 18 Install RoundCube
- 19 Install ISPConfig 3
- 20.1 ISPConfig 3 Manual
- 21 Virtual machine image download of this tutorial
- 22 Links
This tutorial shows how to prepare a Debian 10 server (with Nginx, BIND, Dovecot) for the installation of ISPConfig 3.2, and how to install ISPConfig 3.2. ISPConfig 3 is a web hosting control panel that allows you to configure the following services through a web browser: Apache or nginx web server, Postfix mail server, Courier or Dovecot IMAP/POP3 server, MySQL, BIND or MyDNS nameserver, PureFTPd, SpamAssassin, ClamAV, and many more. This setup covers Nginx web server, BIND as DNS Server, and Dovecot as IMAP / POP3 server.
1 Preliminary Note
In this tutorial, I use the hostname server1.example.com with the IP address 192.168.0.100 and the gateway 192.168.0.1. These settings might differ for you, so you have to replace them where appropriate. Before proceeding further you need to have a minimal installation of Debian 10. This might be a Debian minimal image from your hosting provider or you use the Minimal Debian Server tutorial to setup the base system.
All commands below are run as root user. Either log in as root user directly or log in as your normal user and then use the command
su -
to become root user on your server before you proceed. IMPORTANT: You must use 'su -' and not just 'su', otherwise your PATH variable is set wrong by Debian.
2 Install the SSH Server
If you did not install the OpenSSH server during the system installation, you can do it now:
apt-get -y install ssh openssh-server
From now on you can use an SSH client such as PuTTY and connect from your workstation to your Debian 10 server and follow the remaining steps from this tutorial.
3 Install a shell text editor (Optional)
I'll use the nano text editor in this tutorial. Some users prefer the classic vi editor, therefore I will install both editors here. The default vi program has some strange behavior on Debian and Ubuntu; to fix this, we install vim-nox:
apt-get -y install nano vim-nox
(You don't have to do this if you use a different text editor such as joe.)
4 Configure the Hostname
The hostname of your server should be a subdomain like "server1.example.com". Do not use a domain name without subdomain part like "example.com" as hostname as this will cause problems later with your mail setup. First, you should check the hostname in /etc/hosts and change it when necessary. The line should be: "IP Address - space - full hostname incl. domain - space - subdomain part". Edit /etc/hosts. Make it look like this:
nano /etc/hosts
127.0.0.1 localhost.localdomain localhost 192.168.0.100 server1.example.com server1 # The following lines are desirable for IPv6 capable hosts ::1 localhost ip6-localhost ip6-loopback ff02::1 ip6-allnodes ff02::2 ip6-allrouters
Then edit the /etc/hostname file:
nano /etc/hostname
It shall contain only the subdomain part, in our case:
server1
Finally, reboot the server to apply the change:
reboot
Log in again and check if the hostname is correct now with these commands:
hostname
hostname -f
The output shall be like this:
[email protected]:/tmp# hostname
server1
[email protected]:/tmp# hostname -f
server1.example.com
5 Update Your Debian Installation
First make sure that your /etc/apt/sources.list contains the buster/updates repository (this makes sure you always get the newest updates for the ClamAV virus scanner - this project publishes releases very often, and sometimes old versions stop working), and that the contrib and non-free repositories are enabled.
nano /etc/apt/sources.list
deb http://deb.debian.org/debian/ buster main contrib non-free
deb-src http://deb.debian.org/debian/ buster main contrib non-free
deb http://security.debian.org/debian-security buster/updates main contrib non-free
deb-src http://security.debian.org/debian-security buster/updates main contrib non-free
Run
apt-get update
to update the apt package database and
apt-get upgrade
to install the latest updates (if there are any).
6 Change the Default Shell
/bin/sh is a symlink to /bin/dash, however we need /bin/bash, not /bin/dash. Therefore we do this:
dpkg-reconfigure dash
Use dash as the default system shell (/bin/sh)? <-- No
If you don't do this, the ISPConfig installation will fail.
7 Synchronize the System Clock
It is a good idea to synchronize the system clock with an NTP (network time protocol) server over the Internet. Simply run
apt-get install ntp
and your system time will always be in sync.
8 Install Postfix, Dovecot, MySQL, rkhunter, and binutils
We can install Postfix, Dovecot, MySQL, rkhunter, and Binutils with a single command:
apt-get install postfix postfix-mysql postfix-doc mariadb-client mariadb-server openssl getmail4 rkhunter binutils dovecot-imapd dovecot-pop3d dovecot-mysql dovecot-sieve dovecot-lmtpd sudo curl
You will be asked the following questions:
General type of mail configuration: <-- Internet Site
System mail name: <-- server1.example.com
To secure the MariaDB / MySQL installation and to disable the test database, run this command:
mysql_secure_installation
We don't have to change the MariaDB root password as we just set a new one during installation. Answer the questions as follows:
Change the root password? [Y/n] <-- y
New password: <-- Enter a new database root password
Re-enter new password: <-- Repeat the database root password
Remove anonymous users? [Y/n] <-- y
Disallow root login remotely? [Y/n] <-- y
Remove test database and access to it? [Y/n] <-- y
Reload privilege tables now? [Y/n] <-- y
Next, open the TLS/SSL and submission ports in Postfix:
nano /etc/postfix/master.cf
Uncomment the submission and smtps sections as follows and add lines where necessary so that this section of the master.cf file looks exactly like the one below. IMPORTANT: Remove the # in front of the lines that start with smtps and submission too and not just from the -o lines after these lines!
[...]
submission inet n - y - - smtpd
-o syslog_name=postfix/submission
-o smtpd_tls_security_level=encrypt
-o smtpd_sasl_auth_enable=yes
-o smtpd_client_restrictions=permit_sasl_authenticated,reject
# -o smtpd_reject_unlisted_recipient=no
# -o smtpd_client_restrictions=$mua_client_restrictions
# -o smtpd_helo_restrictions=$mua_helo_restrictions
# -o smtpd_sender_restrictions=$mua_sender_restrictions
# -o smtpd_recipient_restrictions=
# -o smtpd_relay_restrictions=permit_sasl_authenticated,reject
# -o milter_macro_daemon_name=ORIGINATING
smtps inet n - y - - smtpd
-o syslog_name=postfix/smtps
-o smtpd_tls_wrappermode=yes
-o smtpd_sasl_auth_enable=yes
-o smtpd_client_restrictions=permit_sasl_authenticated,reject
# -o smtpd_reject_unlisted_recipient=no
# -o smtpd_client_restrictions=$mua_client_restrictions
# -o smtpd_helo_restrictions=$mua_helo_restrictions
# -o smtpd_sender_restrictions=$mua_sender_restrictions
# -o smtpd_recipient_restrictions=
# -o smtpd_relay_restrictions=permit_sasl_authenticated,reject
# -o milter_macro_daemon_name=ORIGINATING
[...]
Restart Postfix afterwards:
service postfix restart
We want MariaDB to listen on all interfaces, not just localhost, therefore we edit /etc/mysql/mariadb.conf.d/50-server.cnf and comment out the line bind-address = 127.0.0.1:
nano /etc/mysql/mariadb.conf.d/50-server.cnf
[...]
# Instead of skip-networking the default is now to listen only on # localhost which is more compatible and is not less secure. #bind-address = 127.0.0.1
[...]
Save the file. Then set the password authentication method in MariaDB to native so we can use PHPMyAdmin later to connect as root user:
echo "update mysql.user set plugin = 'mysql_native_password' where user='root';" | mysql -u root
Edit the file /etc/mysql/debian.cnf and set the MYSQL / MariaDB root password there twice in the rows that start with the word password.
nano /etc/mysql/debian.cnf
The MySQL root password that needs to be added is shown in red. In this example, the password is "howtoforge".
# Automatically generated for Debian scripts. DO NOT TOUCH!
[client]
host = localhost
user = root
password = howtoforge
socket = /var/run/mysqld/mysqld.sock
[mysql_upgrade]
host = localhost
user = root
password = howtoforge
socket = /var/run/mysqld/mysqld.sock
basedir = /usr
To prevent the error 'Error in accept: Too many open files' we will set higher open file limits for MariaDB now.
Open the file /etc/security/limits.conf with an editor:
nano /etc/security/limits.conf
and add these lines at the end of the file.
mysql soft nofile 65535
mysql hard nofile 65535
Next, create a new directory /etc/systemd/system/mysql.service.d/ with the mkdir command.
mkdir -p /etc/systemd/system/mysql.service.d/
and add a new file inside:
nano /etc/systemd/system/mysql.service.d/limits.conf
paste the following lines into that file:
[Service]
LimitNOFILE=infinity
Save the file and close the nano editor.
Then we reload systemd and restart MariaDB:
systemctl daemon-reload
systemctl restart mariadb
Ignore the warning: "Warning: The unit file, source configuration file or drop-ins of mariadb.service changed on disk. Run 'systemctl daemon-reload' to reload units.".
Install the dbconfig-common system:
apt-get install dbconfig-common dbconfig-mysql
There is currently a problem with the Debian dbconfig-common system which prevents the installation of RoundCube later, fix it by running this command:
sed -i -r 's/_dbc_nodb="yes" dbc_mysql_exec/_dbc_nodb="yes"; dbc_mysql_exec/g' /usr/share/dbconfig-common/internal/mysql
Now check that networking is enabled. Run
netstat -tap | grep mysql
The output should look like this:
[email protected]:~# netstat -tap | grep mysql
tcp6 0 0 [::]:mysql [::]:* LISTEN 4027/mysqld
[email protected]:~#
9 Install Amavisd-new, SpamAssassin, and ClamAV
To install amavisd-new, SpamAssassin, and ClamAV, we run:
apt-get install amavisd-new spamassassin clamav clamav-daemon unzip bzip2 arj nomarch lzop cabextract p7zip p7zip-full unrar lrzip apt-listchanges libnet-ldap-perl libauthen-sasl-perl clamav-docs daemon libio-string-perl libio-socket-ssl-perl libnet-ident-perl zip libnet-dns-perl libdbd-mysql-perl postgrey
The ISPConfig 3 setup uses amavisd which loads the SpamAssassin filter library internally, so we can stop SpamAssassin to free up some RAM:
systemctl stop spamassassin
systemctl disable spamassassin
10 Install Nginx, PHP (PHP-FPM), and Fcgiwrap
Nginx is available as a package for Debian which we can install as follows:
apt-get install nginx
If Apache2 is already installed on the system, stop it now...
systemctl stop apache2
The message "Failed to stop apache2.service: Unit apache2.service not loaded." is fine and does not indicate an error.
... and remove Apache's system startup links:
systemctl disable apache2
Start nginx afterwards:
systemctl start nginx
(If both Apache2 and nginx are installed, the ISPConfig 3 installer will ask you which one you want to use - answer nginx in this case. If only one of these both is installed, ISPConfig will do the necessary configuration automatically.)
We can make PHP 7.3 work in nginx through PHP-FPM (PHP-FPM (FastCGI Process Manager) is an alternative PHP FastCGI implementation with some additional features useful for sites of any size, especially busier sites) which we install as follows:
apt-get install php7.3-fpm
PHP-FPM is a daemon process that runs a FastCGI server on the socket /var/run/php/php7.3-fpm.sock.
To get MySQL support in PHP, we can install the php7.3-mysql package. It's a good idea to install some other PHP modules as well as you might need them for your applications. You can search for available PHP modules like this:
apt-cache search php7
Pick the ones you need and install them like this:
apt-get install php7.3 php7.3-common php7.3-gd php7.3-mysql php7.3-imap php7.3-cli php7.3-cgi php-pear mcrypt imagemagick libruby php7.3-curl php7.3-intl php7.3-pspell php7.3-recode php7.3-sqlite3 php7.3-tidy php7.3-xmlrpc php7.3-xsl memcached php-memcache php-imagick php-gettext php7.3-zip php7.3-mbstring memcached php7.3-soap php7.3-fpm php7.3-opcache php-apcu
Next open /etc/php/7.3/fpm/php.ini...
nano /etc/php/7.3/fpm/php.ini
... and set cgi.fix_pathinfo=0 and your timezone:
[...] cgi.fix_pathinfo=0 [...] date.timezone="Europe/Berlin" [...]
(You can find all available timezones in the /usr/share/zoneinfo directories and its subdirectories.)
Now reload PHP-FPM:
systemctl restart php7.3-fpm
To get CGI support in nginx, we install Fcgiwrap.
Fcgiwrap is a CGI wrapper that should work also for complex CGI scripts and can be used for shared hosting environments because it allows each vhost to use its own cgi-bin directory.
Install the fcgiwrap package:
apt-get install fcgiwrap
After the installation, the fcgiwrap daemon should already be started; its socket is /var/run/fcgiwrap.socket. If it is not running, you can use the fservice fcgiwrap script to start it.
That's it! Now when you create a nginx vhost, ISPConfig will take care of the correct vhost configuration.
10.1 Install phpMyAdmin
Since Debian 10, PHPMyAdmin is not available as .deb package anymore. Therefore we will install it from source.
Create folders for PHPMyadmin:
mkdir /usr/share/phpmyadmin
mkdir /etc/phpmyadmin
mkdir -p /var/lib/phpmyadmin/tmp
chown -R www-data:www-data /var/lib/phpmyadmin
touch /etc/phpmyadmin/htpasswd.setup
Go to the /tmp directory and download the PHPMyAdmin sources:
cd /tmp
wget https://files.phpmyadmin.net/phpMyAdmin/4.9.0.1/phpMyAdmin-4.9.0.1-all-languages.tar.gz
Unpack the downloaded archive file and move the files to the /usr/share/phpmyadmin folder and clean up the /tmp directory.
tar xfz phpMyAdmin-4.9.0.1-all-languages.tar.gz
mv phpMyAdmin-4.9.0.1-all-languages/* /usr/share/phpmyadmin/
rm phpMyAdmin-4.9.0.1-all-languages.tar.gz
rm -rf phpMyAdmin-4.9.0.1-all-languages
Create a new config file for PHPMyaAdmin based on the provided sample file:
cp /usr/share/phpmyadmin/config.sample.inc.php /usr/share/phpmyadmin/config.inc.php
Open the config file with nano editor:
nano /usr/share/phpmyadmin/config.inc.php
Set a secure password (blowfish secret) which must be 32 chars long:
$cfg['blowfish_secret'] = 'bD3e6wva9fnd93jVsb7SDgeiBCd452Dh'; /* YOU MUST FILL IN THIS FOR COOKIE AUTH! */
Don't use my example blowfish secret, set your own one!
Then add a line to set the directory which PHPMyAdmin shall use to store temporary files:
$cfg['TempDir'] = '/var/lib/phpmyadmin/tmp';
In the next step, we will configure the phpMyadmin configuration store (database).
Log into MariaDB as root user:
mysql -u root -p
In the MariaDB shell, create a new database for PHPMyAdmin:
MariaDB [(none)]> CREATE DATABASE phpmyadmin;
Then create a new user:
MariaDB [(none)]> CREATE USER 'pma'@'localhost' IDENTIFIED BY 'mypassword';
Replace the word mypassword with a secure password of your choice in the commands above and below, use the same password both times. Then grant the user access to this database and reload database permissions.
MariaDB [(none)]> GRANT ALL PRIVILEGES ON phpmyadmin.* TO 'pma'@'localhost' IDENTIFIED BY 'mypassword' WITH GRANT OPTION;
MariaDB [(none)]> FLUSH PRIVILEGES;
MariaDB [(none)]> EXIT
Finally, load the SQL tables into the database:
mysql -u root -p phpmyadmin < /usr/share/phpmyadmin/sql/create_tables.sql
Enter the MariaDB root password on request.
All we have to do now is to set the phpmyadmin user details in the configuration file. Open the file in nano editor again:
nano /usr/share/phpmyadmin/config.inc.php
Scroll down until you see the lines below and edit them:
/* User used to manipulate with storage */
$cfg['Servers'][$i]['controlhost'] = 'localhost';
$cfg['Servers'][$i]['controlport'] = '';
$cfg['Servers'][$i]['controluser'] = 'pma';
$cfg['Servers'][$i]['controlpass'] = 'mypassword';
/* Storage database and tables */
$cfg['Servers'][$i]['pmadb'] = 'phpmyadmin';
$cfg['Servers'][$i]['bookmarktable'] = 'pma__bookmark';
$cfg['Servers'][$i]['relation'] = 'pma__relation';
$cfg['Servers'][$i]['table_info'] = 'pma__table_info';
$cfg['Servers'][$i]['table_coords'] = 'pma__table_coords';
$cfg['Servers'][$i]['pdf_pages'] = 'pma__pdf_pages';
$cfg['Servers'][$i]['column_info'] = 'pma__column_info';
$cfg['Servers'][$i]['history'] = 'pma__history';
$cfg['Servers'][$i]['table_uiprefs'] = 'pma__table_uiprefs';
$cfg['Servers'][$i]['tracking'] = 'pma__tracking';
$cfg['Servers'][$i]['userconfig'] = 'pma__userconfig';
$cfg['Servers'][$i]['recent'] = 'pma__recent';
$cfg['Servers'][$i]['favorite'] = 'pma__favorite';
$cfg['Servers'][$i]['users'] = 'pma__users';
$cfg['Servers'][$i]['usergroups'] = 'pma__usergroups';
$cfg['Servers'][$i]['navigationhiding'] = 'pma__navigationhiding';
$cfg['Servers'][$i]['savedsearches'] = 'pma__savedsearches';
$cfg['Servers'][$i]['central_columns'] = 'pma__central_columns';
$cfg['Servers'][$i]['designer_settings'] = 'pma__designer_settings';
$cfg['Servers'][$i]['export_templates'] = 'pma__export_templates';
I've marked the lines in red which I've edited. Replace mypassword with the password that you've chosen for the phpmyadmin user. Note that the // in front of the lines have been removed as well!
After you have installed ISPConfig 3.2, you can access phpMyAdmin as follows:
The ISPConfig apps vhost on port 8081 for nginx comes with a phpMyAdmin configuration, so you can use http://server1.example.com:8081/phpmyadmin or http://server1.example.com:8081/phpMyAdmin to access phpMyAdmin.
If you want to use a /phpmyadmin or /phpMyAdmin alias that you can use from your websites, this is a bit more complicated than for Apache because nginx does not have global aliases (i.e., aliases that can be defined for all vhosts). Therefore you have to define these aliases for each vhost from which you want to access phpMyAdmin.
To do this, paste the following into the nginx Directives field on the Options tab of the web site in ISPConfig later:
location /phpmyadmin {
root /usr/share/;
index index.php index.html index.htm;
location ~ ^/phpmyadmin/(.+\.php)$ {
try_files $uri =404;
root /usr/share/;
fastcgi_pass unix:/var/run/php/php7.3-fpm.sock;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $request_filename;
include /etc/nginx/fastcgi_params;
fastcgi_param PATH_INFO $fastcgi_script_name;
fastcgi_buffer_size 128k;
fastcgi_buffers 256 4k;
fastcgi_busy_buffers_size 256k;
fastcgi_temp_file_write_size 256k;
fastcgi_intercept_errors on;
}
location ~* ^/phpmyadmin/(.+\.(jpg|jpeg|gif|css|png|js|ico|html|xml|txt))$ {
root /usr/share/;
}
}
location /phpMyAdmin {
rewrite ^/* /phpmyadmin last;
}
If you use https instead of http for your vhost, you should add the line fastcgi_param HTTPS on; to your phpMyAdmin configuration like this:
location /phpmyadmin {
root /usr/share/;
index index.php index.html index.htm;
location ~ ^/phpmyadmin/(.+\.php)$ {
try_files $uri =404;
root /usr/share/;
fastcgi_pass unix:/var/run/php/php7.3-fpm.sock;
fastcgi_param HTTPS on; # <-- add this line
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $request_filename;
include /etc/nginx/fastcgi_params;
fastcgi_param PATH_INFO $fastcgi_script_name;
fastcgi_buffer_size 128k;
fastcgi_buffers 256 4k;
fastcgi_busy_buffers_size 256k;
fastcgi_temp_file_write_size 256k;
fastcgi_intercept_errors on;
}
location ~* ^/phpmyadmin/(.+\.(jpg|jpeg|gif|css|png|js|ico|html|xml|txt))$ {
root /usr/share/;
}
}
location /phpMyAdmin {
rewrite ^/* /phpmyadmin last;
}
If you use both http and https for your vhost, you can use the $https variable. Go to the nginx Directives field again, and instead of fastcgi_param HTTPS on; you add the line fastcgi_param HTTPS $https; so that you can use phpMyAdmin for both http and https requests:
location /phpmyadmin {
root /usr/share/;
index index.php index.html index.htm;
location ~ ^/phpmyadmin/(.+\.php)$ {
try_files $uri =404;
root /usr/share/;
fastcgi_pass unix:/var/run/php/php7.3-fpm.sock;
fastcgi_param HTTPS $https; # <-- add this line
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $request_filename;
include /etc/nginx/fastcgi_params;
fastcgi_param PATH_INFO $fastcgi_script_name;
fastcgi_buffer_size 128k;
fastcgi_buffers 256 4k;
fastcgi_busy_buffers_size 256k;
fastcgi_temp_file_write_size 256k;
fastcgi_intercept_errors on;
}
location ~* ^/phpmyadmin/(.+\.(jpg|jpeg|gif|css|png|js|ico|html|xml|txt))$ {
root /usr/share/;
}
}
location /phpMyAdmin {
rewrite ^/* /phpmyadmin last;
}
11 Install Let's Encrypt
ISPConfig is using acme.sh now as Let's Encrypt client. Install acme.sh using the following command:
curl https://get.acme.sh | sh -s
12 Install Mailman
ISPConfig allows you to manage (create/modify/delete) Mailman mailing lists. If you want to make use of this feature, install Mailman as follows:
apt-get install mailman
Select at least one language, e.g.:
Languages to support: <-- en (English)
Missing site list <-- Ok
Before we can start Mailman, a first mailing list called mailman must be created:
newlist mailman
[email protected]:~# newlist mailman
Enter the email of the person running the list: <-- admin email address, e.g. [email protected]
Initial mailman password: <-- admin password for the mailman list
To finish creating your mailing list, you must edit your /etc/aliases (or
equivalent) file by adding the following lines, and possibly running the
`newaliases' program:
## mailman mailing list
mailman: "|/var/lib/mailman/mail/mailman post mailman"
mailman-admin: "|/var/lib/mailman/mail/mailman admin mailman"
mailman-bounces: "|/var/lib/mailman/mail/mailman bounces mailman"
mailman-confirm: "|/var/lib/mailman/mail/mailman confirm mailman"
mailman-join: "|/var/lib/mailman/mail/mailman join mailman"
mailman-leave: "|/var/lib/mailman/mail/mailman leave mailman"
mailman-owner: "|/var/lib/mailman/mail/mailman owner mailman"
mailman-request: "|/var/lib/mailman/mail/mailman request mailman"
mailman-subscribe: "|/var/lib/mailman/mail/mailman subscribe mailman"
mailman-unsubscribe: "|/var/lib/mailman/mail/mailman unsubscribe mailman"
Hit enter to notify mailman owner... <-- ENTER
[email protected]:~#
Open /etc/aliases afterwards...
nano /etc/aliases
... and add the following lines:
[...] ## mailman mailing list mailman: "|/var/lib/mailman/mail/mailman post mailman" mailman-admin: "|/var/lib/mailman/mail/mailman admin mailman" mailman-bounces: "|/var/lib/mailman/mail/mailman bounces mailman" mailman-confirm: "|/var/lib/mailman/mail/mailman confirm mailman" mailman-join: "|/var/lib/mailman/mail/mailman join mailman" mailman-leave: "|/var/lib/mailman/mail/mailman leave mailman" mailman-owner: "|/var/lib/mailman/mail/mailman owner mailman" mailman-request: "|/var/lib/mailman/mail/mailman request mailman" mailman-subscribe: "|/var/lib/mailman/mail/mailman subscribe mailman" mailman-unsubscribe: "|/var/lib/mailman/mail/mailman unsubscribe mailman"
Run
newaliases
afterwards and restart Postfix:
systemctl restart postfix
Then start the Mailman daemon:
systemctl restart mailman
After you have installed ISPConfig 3, you can access Mailman as follows:
The ISPConfig apps vhost on port 8081 for nginx comes with a Mailman configuration, so you can use http://server1.example.com:8081/cgi-bin/mailman/admin/<listname> or http://server1.example.com:8081/cgi-bin/mailman/listinfo/<listname> to access Mailman.
If you want to use Mailman from your web sites, this is a bit more complicated than for Apache because nginx does not have global aliases (i.e., aliases that can be defined for all vhosts). Therefore you have to define these aliases for each vhost from which you want to access Mailman.
To do this, paste the following into the nginx Directives field on the Options tab of the web site in ISPConfig:
location /cgi-bin/mailman {
root /usr/lib/;
fastcgi_split_path_info (^/cgi-bin/mailman/[^/]*)(.*)$;
include /etc/nginx/fastcgi_params;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
fastcgi_param PATH_INFO $fastcgi_path_info;
fastcgi_param PATH_TRANSLATED $document_root$fastcgi_path_info;
fastcgi_intercept_errors on;
fastcgi_pass unix:/var/run/fcgiwrap.socket;
}
location /images/mailman {
alias /usr/share/images/mailman;
}
location /pipermail {
alias /var/lib/mailman/archives/public;
autoindex on;
}
This defines the alias /cgi-bin/mailman/ for your vhost, which means you can access the Mailman admin interface for a list at http://<vhost>/cgi-bin/mailman/admin/<listname>, and the web page for users of a mailing list can be found at http://<vhost>/cgi-bin/mailman/listinfo/<listname>.
Under http://<vhost>/pipermail you can find the mailing list archives.
13 Install PureFTPd and Quota
PureFTPd and quota can be installed with the following command:
apt-get install pure-ftpd-common pure-ftpd-mysql quota quotatool
Edit the file /etc/default/pure-ftpd-common...
nano /etc/default/pure-ftpd-common
... and make sure that the start mode is set to standalone and set VIRTUALCHROOT=true:
[...] STANDALONE_OR_INETD=standalone [...] VIRTUALCHROOT=true [...]
Now we configure PureFTPd to allow FTP and TLS sessions. FTP is a very insecure protocol because all passwords and all data are transferred in clear text. By using TLS, the whole communication can be encrypted, thus making FTP much more secure.
If you want to allow FTP and TLS sessions, run
echo 1 > /etc/pure-ftpd/conf/TLS
In order to use TLS, we must create an SSL certificate. I create it in /etc/ssl/private/, therefore I create that directory first:
mkdir -p /etc/ssl/private/
Afterwards, we can generate the SSL certificate as follows:
openssl req -x509 -nodes -days 7300 -newkey rsa:2048 -keyout /etc/ssl/private/pure-ftpd.pem -out /etc/ssl/private/pure-ftpd.pem
Country Name (2 letter code) [AU]: <-- Enter your Country Name (e.g., "DE").
State or Province Name (full name) [Some-State]:<-- Enter your State or Province Name.
Locality Name (eg, city) []:<-- Enter your City.
Organization Name (eg, company) [Internet Widgits Pty Ltd]:<-- Enter your Organization Name (e.g., the name of your company).
Organizational Unit Name (eg, section) []:<-- Enter your Organizational Unit Name (e.g. "IT Department").
Common Name (eg, YOUR name) []:<-- Enter the Fully Qualified Domain Name of the system (e.g. "server1.example.com").
Email Address []:<-- Enter your Email Address.
Change the permissions of the SSL certificate:
chmod 600 /etc/ssl/private/pure-ftpd.pem
Then restart PureFTPd:
systemctl restart pure-ftpd-mysql
Edit /etc/fstab. Mine looks like this (I added ,usrjquota=quota.user,grpjquota=quota.group,jqfmt=vfsv0 to the partition with the mount point /):
nano /etc/fstab
# /etc/fstab: static file system information.
#
# Use 'blkid' to print the universally unique identifier for a
# device; this may be used with UUID= as a more robust way to name devices
# that works even if disks are added and removed. See fstab(5).
#
# <file system> <mount point> <type> <options> <dump> <pass>
# / was on /dev/sda1 during installation
UUID=45576b38-39e8-4994-b8c1-ea4870e2e614 / ext4 errors=remount-ro,usrjquota=quota.user,grpjquota=quota.group,jqfmt=vfsv0 0 1
# swap was on /dev/sda5 during installation
UUID=8bea0d1e-ec37-4b20-9976-4b7daaa3eb69 none swap sw 0 0
/dev/sr0 /media/cdrom0 udf,iso9660 user,noauto 0 0
To enable quota, run these commands:
mount -o remount /
quotacheck -avugm
quotaon -avug
14 Install BIND DNS Server
BIND can be installed as follows:
apt-get install bind9 dnsutils
If your server is a virtual machine, then it is highly recommended to install the haveged daemon to get a higher entropy for DNSSEC signing. You can install haveged on non-virtual servers as well, it should not hurt.
apt-get -y install haveged
systemctl enable haveged
systemctl start haveged
An explanation on that topic can be found here.
15 Install Webalizer, AWStats and GoAccess
Webalizer and AWStats can be installed as follows:
apt-get install webalizer awstats geoip-database libtimedate-perl libclass-dbi-mysql-perl
Open /etc/cron.d/awstats afterwards...
nano /etc/cron.d/awstats
... and comment out everything in that file:
#MAILTO=root #*/10 * * * * www-data [ -x /usr/share/awstats/tools/update.sh ] && /usr/share/awstats/tools/update.sh # Generate static reports: #10 03 * * * www-data [ -x /usr/share/awstats/tools/buildstatic.sh ] && /usr/share/awstats/tools/buildstatic.sh
Installing the latest GoAccess version directly from GoAccess repository:
echo "deb https://deb.goaccess.io/ $(lsb_release -cs) main" | sudo tee -a /etc/apt/sources.list.d/goaccess.list
wget -O - https://deb.goaccess.io/gnugpg.key | sudo apt-key --keyring /etc/apt/trusted.gpg.d/goaccess.gpg add -
apt-get update
apt-get install goaccess
16 Install Jailkit
Jailkit is needed only if you want to chroot SSH users. It can be installed as follows (important: Jailkit must be installed before ISPConfig - it cannot be installed afterwards!):
apt-get install build-essential autoconf automake libtool flex bison debhelper binutils
cd /tmp
wget http://olivier.sessink.nl/jailkit/jailkit-2.20.tar.gz
tar xvfz jailkit-2.20.tar.gz
cd jailkit-2.20
echo 5 > debian/compat
./debian/rules binary
You can now install the Jailkit .deb package as follows:
cd ..
dpkg -i jailkit_2.20-1_*.deb
rm -rf jailkit-2.20*
17 Install Fail2ban and UFW Firewall
This is optional but recommended, because the ISPConfig monitor tries to show the log:
apt-get install fail2ban
To make fail2ban monitor PureFTPd and Dovecot, create the file /etc/fail2ban/jail.local:
nano /etc/fail2ban/jail.local
[pure-ftpd]
enabled = true
port = ftp
filter = pure-ftpd
logpath = /var/log/syslog
maxretry = 3
[dovecot]
enabled = true
filter = dovecot
logpath = /var/log/mail.log
maxretry = 5
[postfix-sasl]
enabled = true
port = smtp
filter = postfix[mode=auth]
logpath = /var/log/mail.log
maxretry = 3
Restart fail2ban afterwards:
systemctl restart fail2ban
To install the UFW firewall, run this apt command:
apt-get install ufw
18 Install RoundCube
Install RoundCube with this command:
apt-get install roundcube roundcube-core roundcube-mysql roundcube-plugins
The installer will ask the following questions:
Configure database for roundcube with dbconfig.common? <-- yes
MySQL application password for roundcube: <-- press enter
Password of the databases administrative user: <-- enter the MySQL root password here.
Then edit the RoundCube /etc/roundcube/config.inc.php file and adjust a few settings:
nano /etc/roundcube/config.inc.php
Set the default_host to localhost and the smtp_server.
$config['default_host'] = 'localhost';
$config['smtp_server'] = 'localhost';
$config['smtp_port'] = 25;
ISPConfig has some configuration in the nginx apps vhost for squirrelmail which works for roundcube as well. We activate it with:
ln -s /usr/share/roundcube /usr/share/squirrelmail

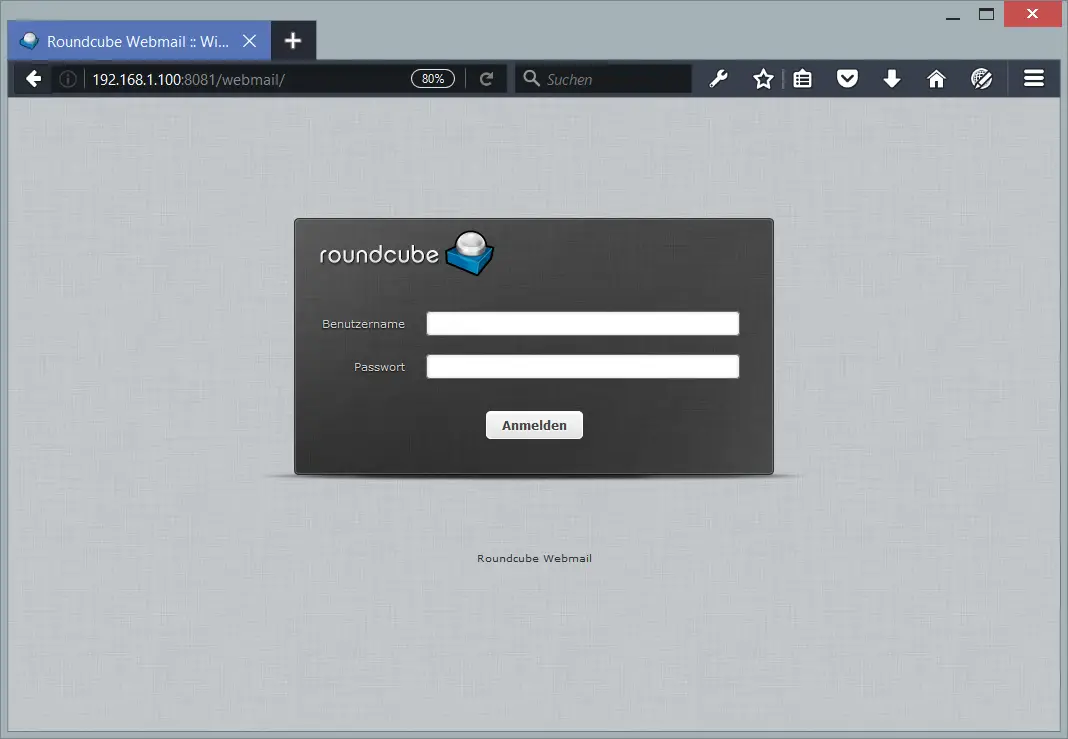

http://192.168.0.100:8081/webmail
http://server1.example.com:8081/webmail (after you have installed ISPConfig, see the next chapter)
19 Install ISPConfig 3
Before you start the ISPConfig installation, make sure that Apache is stopped (if it is installed - it is possible that some of your installed packages have installed Apache as a dependency without you knowing). If Apache2 is already installed on the system, stop it now...
systemctl stop apache2
... and remove Apache's system startup links:
update-rc.d -f apache2 remove
Make sure that nginx is running:
systemctl start nginx
(If you have both Apache and nginx installed, the installer asks you which one you want to use: Apache and nginx detected. Select server to use for ISPConfig: (apache,nginx) [apache]:
Type nginx. If only Apache or nginx are installed, this is automatically detected by the installer, and no question is asked.)
To install ISPConfig 3.2 from the latest released version, do this:
cd /tmp
wget http://www.ispconfig.org/downloads/ISPConfig-3-stable.tar.gz
tar xfz ISPConfig-3-stable.tar.gz
cd ispconfig3_install/install/
The next step is to run
php -q install.php
This will start the ISPConfig 3 installer. The installer will configure all services like Postfix, Nginx, Dovecot, etc. for you.
# php -q install.php
--------------------------------------------------------------------------------
_____ ___________ _____ __ _ ____
|_ _/ ___| ___ \ / __ \ / _(_) /__ \
| | \ `--.| |_/ / | / \/ ___ _ __ | |_ _ __ _ _/ /
| | `--. \ __/ | | / _ \| '_ \| _| |/ _` | |_ |
_| |_/\__/ / | | \__/\ (_) | | | | | | | (_| | ___\ \
\___/\____/\_| \____/\___/|_| |_|_| |_|\__, | \____/
__/ |
|___/
--------------------------------------------------------------------------------
>> Initial configuration
Operating System: Debian 10.0 (Buster) or compatible
Following will be a few questions for primary configuration so be careful.
Default values are in [brackets] and can be accepted with <ENTER>.
Tap in "quit" (without the quotes) to stop the installer.
Select language (en,de) [en]: <-- Hit Enter
Installation mode (standard,expert) [standard]: <-- Hit Enter
Full qualified hostname (FQDN) of the server, eg server1.domain.tld [server1.canomi.com]: <-- Hit Enter
MySQL server hostname [localhost]: <-- Hit Enter
MySQL server port [3306]: <-- Hit Enter
MySQL root username [root]: <-- Hit Enter
MySQL root password []: <-- Enter your MySQL root password
MySQL database to create [dbispconfig]: <-- Hit Enter
MySQL charset [utf8]: <-- Hit Enter
Apache and nginx detected. Select server to use for ISPConfig: (apache,nginx) [apache]: <-- nginx
Configuring Postgrey
Configuring Postfix
Generating a 4096 bit RSA private key
.......................................................................++
........................................................................................................................................++
writing new private key to 'smtpd.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]: <-- Enter 2 letter country code
State or Province Name (full name) [Some-State]: <-- Enter the name of the state
Locality Name (eg, city) []: <-- Enter your city
Organization Name (eg, company) [Internet Widgits Pty Ltd]: <-- Enter company name or press enter
Organizational Unit Name (eg, section) []: <-- Hit Enter
Common Name (e.g. server FQDN or YOUR name) []: <-- Enter the server hostname, in my case: server1.example.com
Email Address []: <-- Hit Enter
Configuring Mailman
Configuring Dovecot
Configuring Spamassassin
Configuring Amavisd
Configuring Getmail
Configuring BIND
Configuring Jailkit
Configuring Pureftpd
Configuring Nginx
Configuring vlogger
[INFO] service Metronome XMPP Server not detected
Configuring UFW Firewall
Configuring Fail2ban
[INFO] service OpenVZ not detected
Configuring Apps vhost
Installing ISPConfig
ISPConfig Port [8080]:
Admin password [admin]: <-- Enter desired ISPConfig admin user password here
Do you want a secure (SSL) connection to the ISPConfig web interface (y,n) [y]: <-- Hit Enter
Generating RSA private key, 4096 bit long modulus
.......................++
................................................................................................................................++
e is 65537 (0x10001)
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]: <-- Enter 2 letter country code
State or Province Name (full name) [Some-State]: <-- Enter the name of the state
Locality Name (eg, city) []: <-- Enter your city
Organization Name (eg, company) [Internet Widgits Pty Ltd]: <-- Enter company name or press enter
Organizational Unit Name (eg, section) []: <-- Hit Enter
Common Name (e.g. server FQDN or YOUR name) []: <-- Enter the server hostname, in my case: server1.example.com
Email Address []: <-- Hit Enter
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []: <-- Hit Enter
An optional company name []: <-- Hit Enter
writing RSA key
Configuring DBServer
Installing ISPConfig crontab
no crontab for root
no crontab for getmail
Detect IP addresses
Restarting services ...
Installation completed.
The installer automatically configures all underlying services, so no manual configuration is needed.

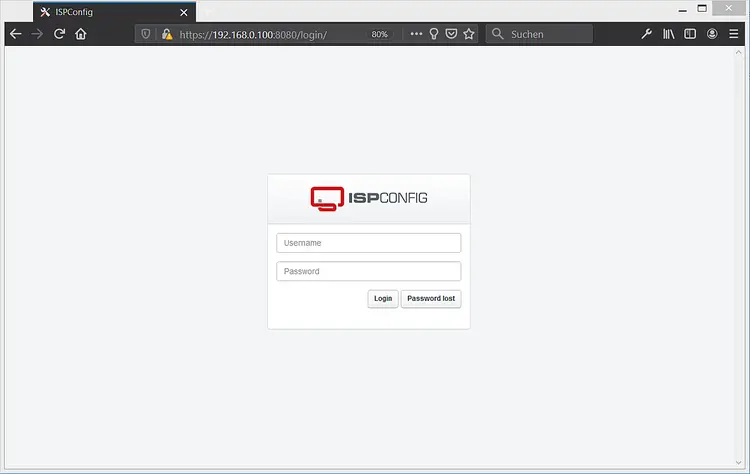

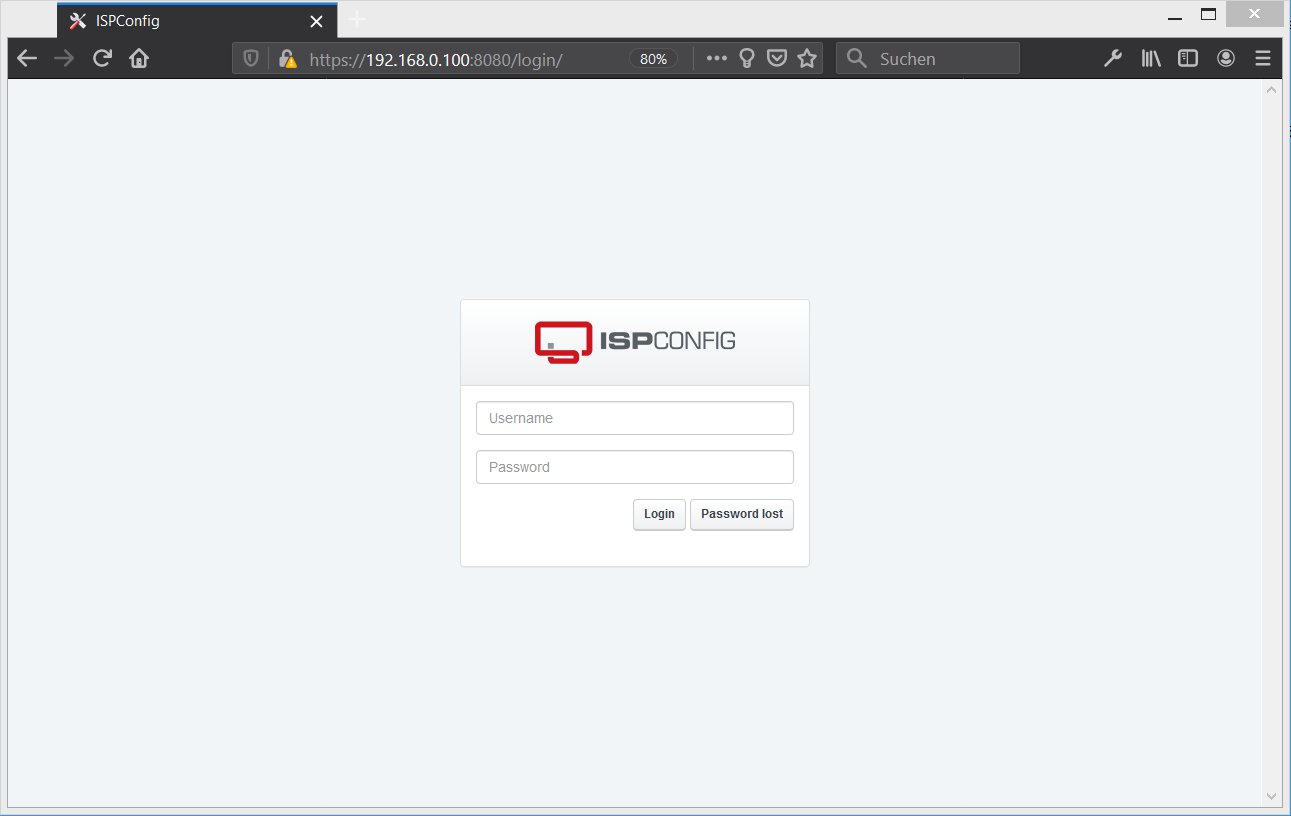

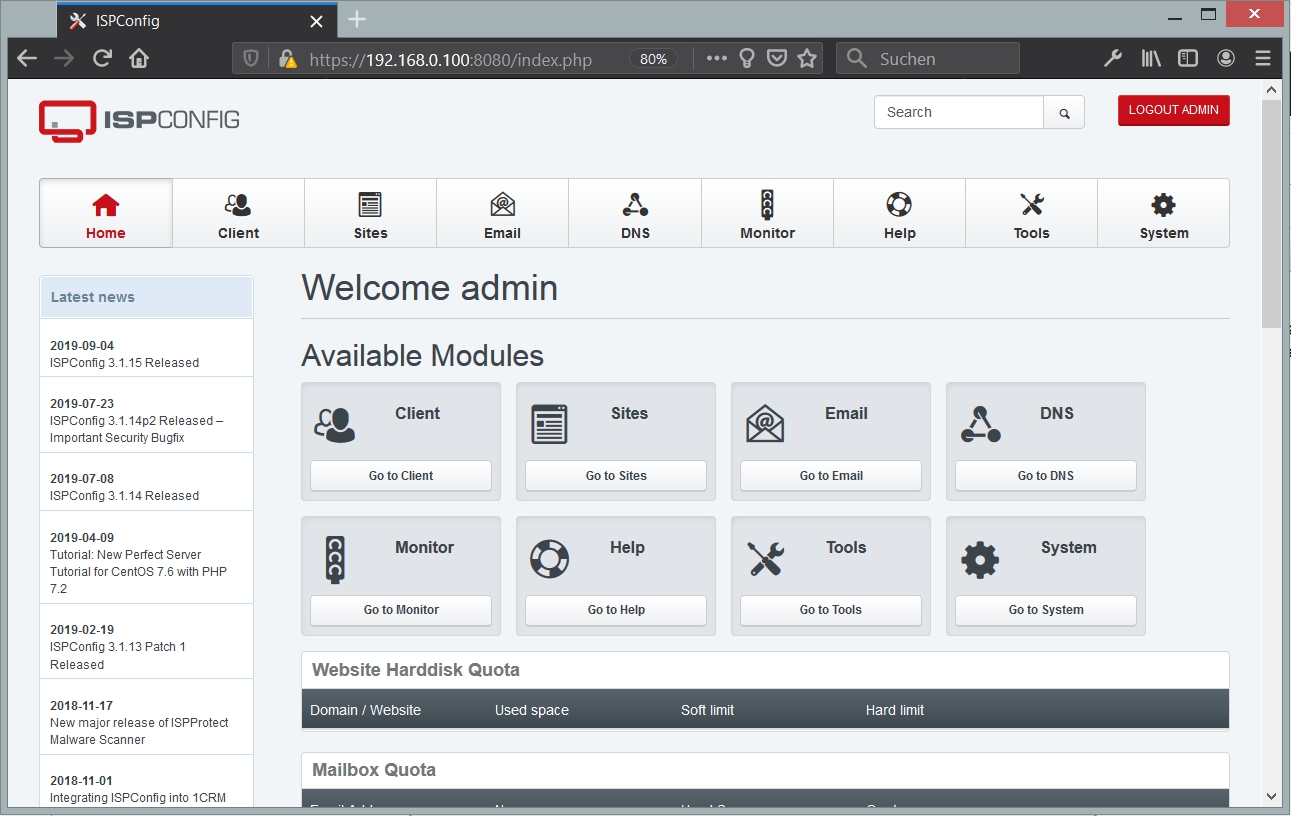

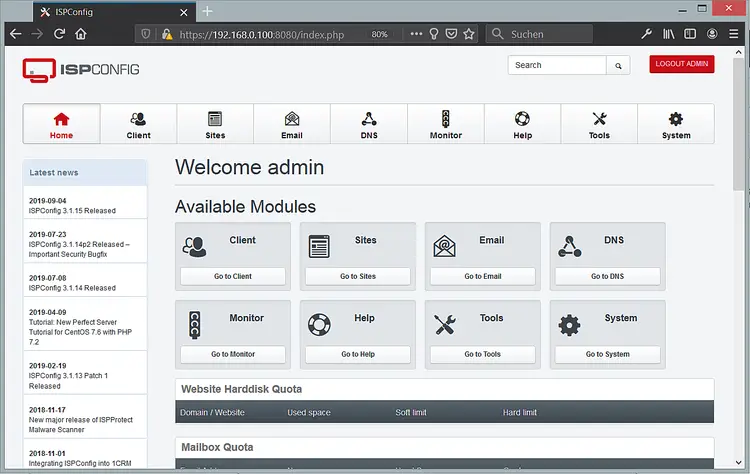

Afterward you can access ISPConfig 3 under http(s)://server1.example.com:8080/ or http(s)://192.168.1.100:8080/ ( http or https depends on what you chose during installation). Log in with the username admin and the password admin (you should change the default password after your first login):
Finally, we fix some permissions of the RoundCube installation.
chown root:ispapps /etc/roundcube/debian-db.php chmod 640 /etc/roundcube/debian-db.php chown root:ispapps /etc/roundcube/config.inc.php chmod 640 /etc/roundcube/config.inc.php chown -R ispapps:adm /var/log/roundcube chmod -R 750 /var/log/roundcube chown -R ispapps:ispapps /var/lib/roundcube/temp chmod -R 750 /var/lib/roundcube/temp
The system is now ready to be used.
There exist some plugins to integrate RoundCube Webmail with ISPConfig, have a look here for the ISPConfig RoundCube plugin installation instructions.
20.1 ISPConfig 3 Manual
In order to learn how to use ISPConfig 3, I strongly recommend downloading the ISPConfig 3 Manual.
On more than 300 pages, it covers the concept behind ISPConfig (admin, resellers, clients), explains how to install and update ISPConfig 3, includes a reference for all forms and form fields in ISPConfig together with examples of valid inputs, and provides tutorials for the most common tasks in ISPConfig 3. It also lines out how to make your server more secure and comes with a troubleshooting section at the end.
21 Virtual machine image download of this tutorial
This tutorial is available as ready to use virtual machine image in ovf/ova format that is compatible with VMWare and Virtualbox. The virtual machine image uses the following login details:
SSH / Shell Login
Username: administrator
Password: howtoforge
Username: root
Password: howtoforge
ISPConfig Login
Username: admin
Password: howtoforge
MySQL Login
Username: root
Password: howtoforge
The IP of the VM is 192.168.0.100, it can be changed in the file /etc/network/interfaces. Please change all the above passwords to secure the virtual machine.
22 Links
- Debian: http://www.debian.org/
- ISPConfig: http://www.ispconfig.org/
