4 Creating A Virtual Machine

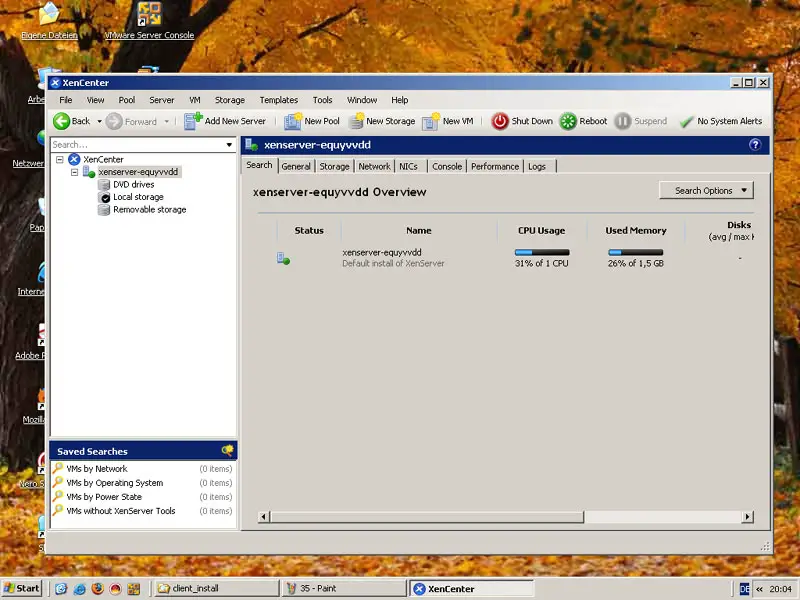

This is a short example how you can create a virtual machine with XenCenter. Click on New VM:

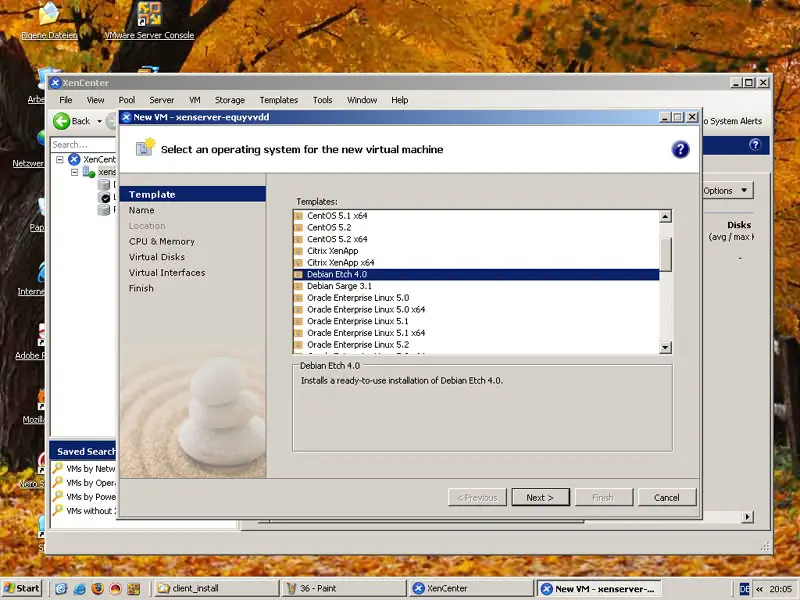

The New VM wizard comes up. Select the guest operating system (e.g. Debian Etch):

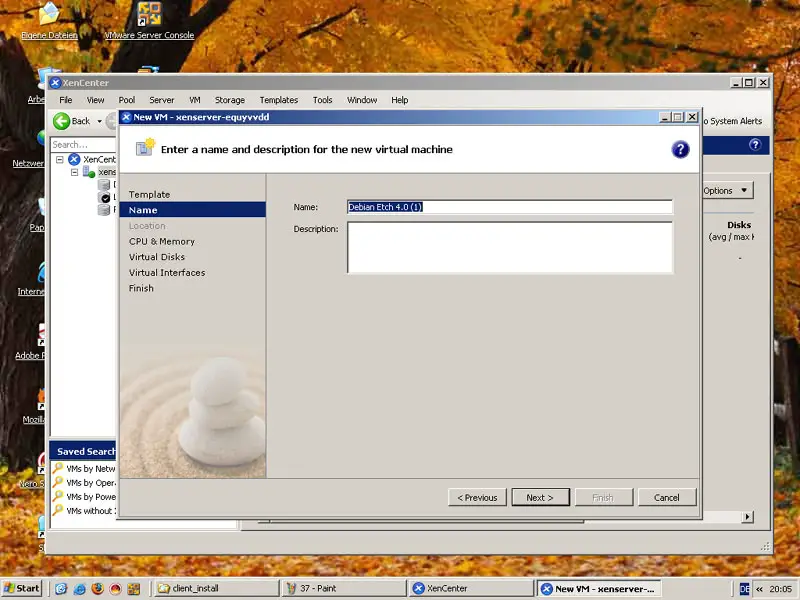

Enter a name and description (optional) for the VM:

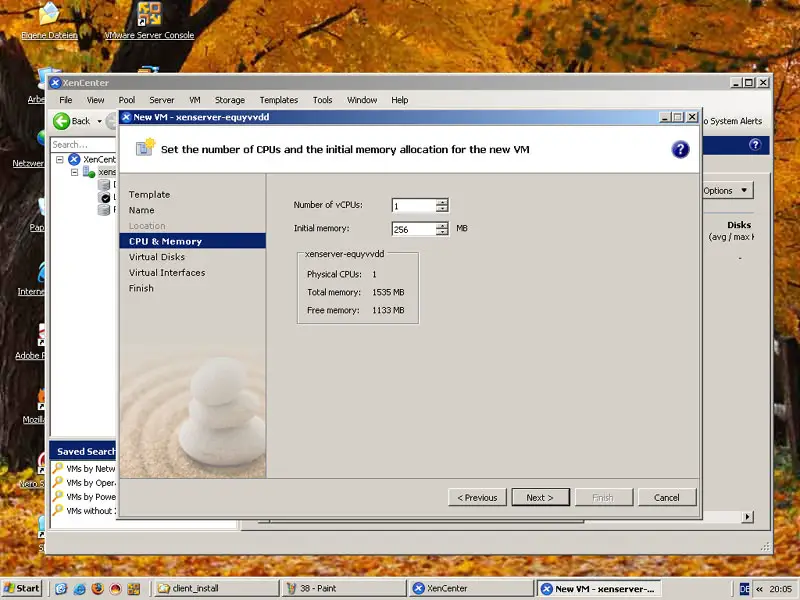

Specify the number of virtual CPUs and the amount of memory for the VM:

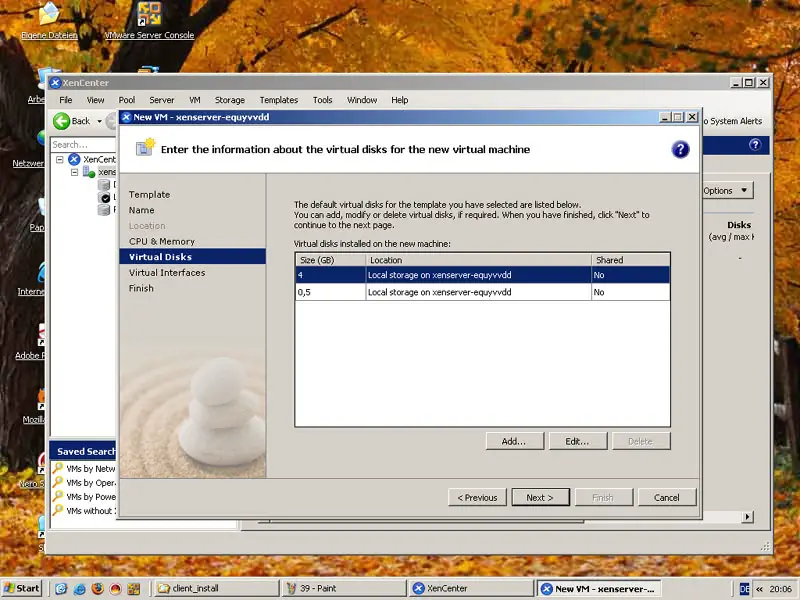

Specify the virtual disks for the VM:

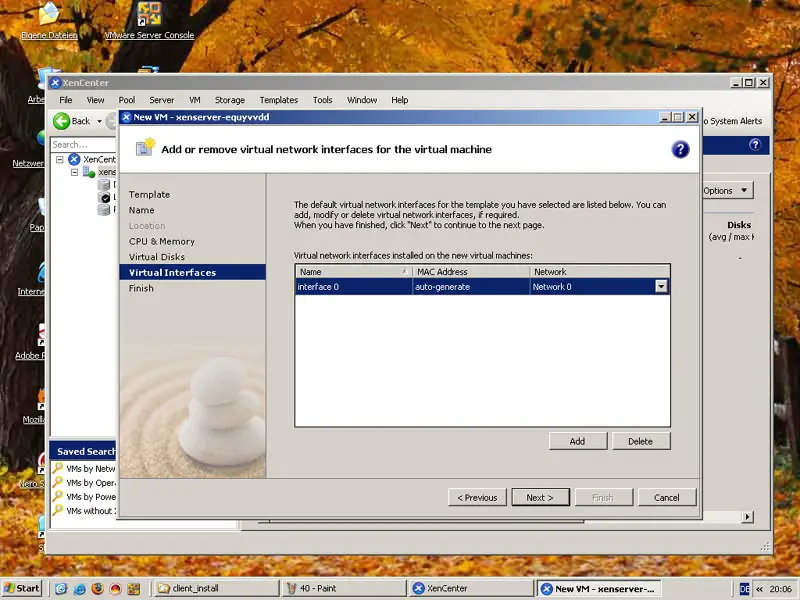

On the next page you can add or remove virtual network interfaces. Normally the default settings are ok:

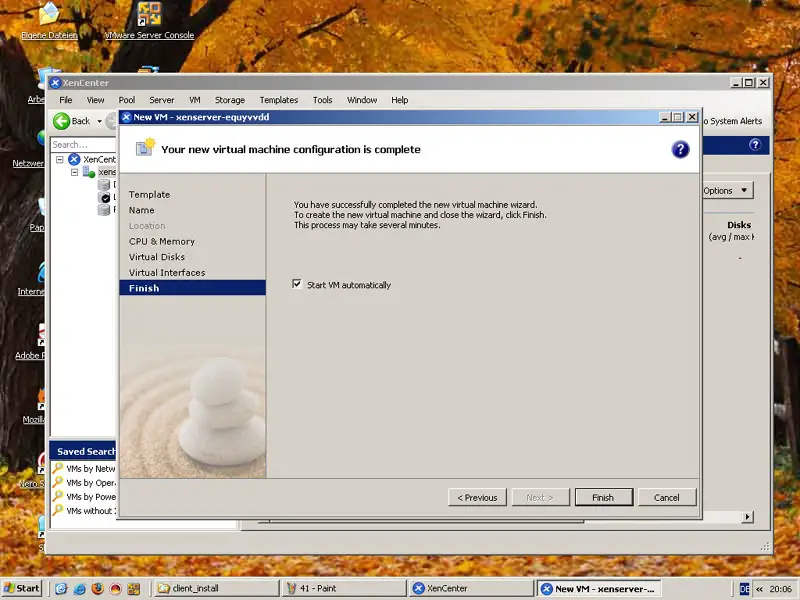

Finally click on Finish. The VM will then be created on the XenServer host...

... and you can see a progress bar for the creation process in the lower right corner. The creation can take a few minutes, so please be patient.

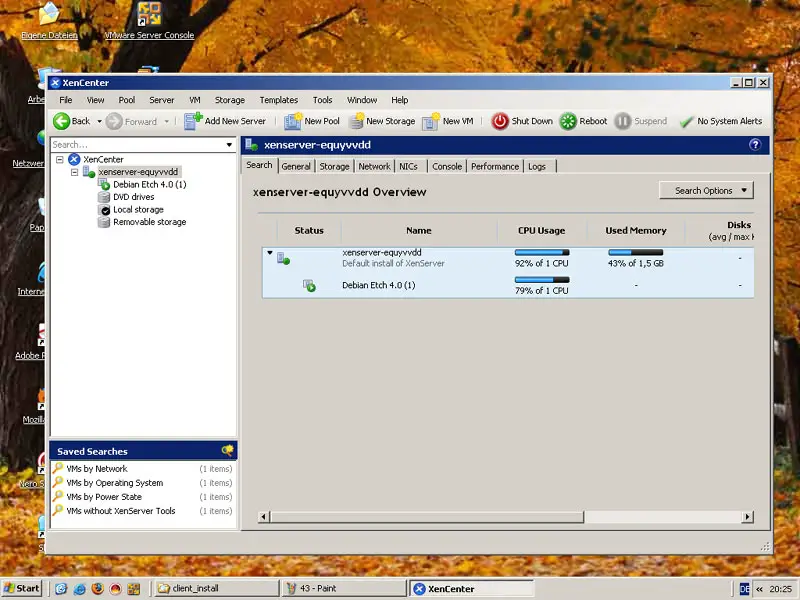

Afterwards, the VM will boot automatically if you have chosen so at the end of the New VM wizard:

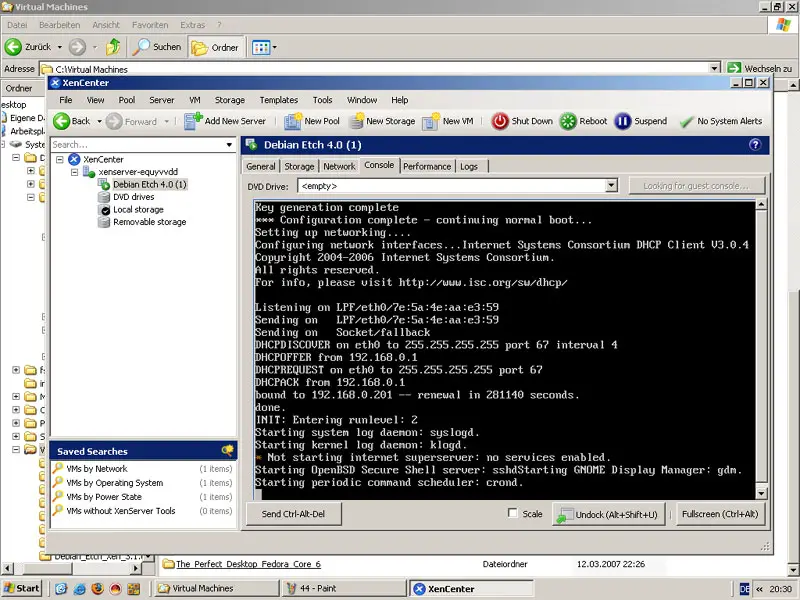

You should switch to the Console tab. At the end of the first boot process, you will be asked a few question in the console so that the VM gets configured to your likings:

Afterwards you can start using your first XenServer VM!
