4 Connecting To A VM From A Remote Desktop

4.1 Windows XP

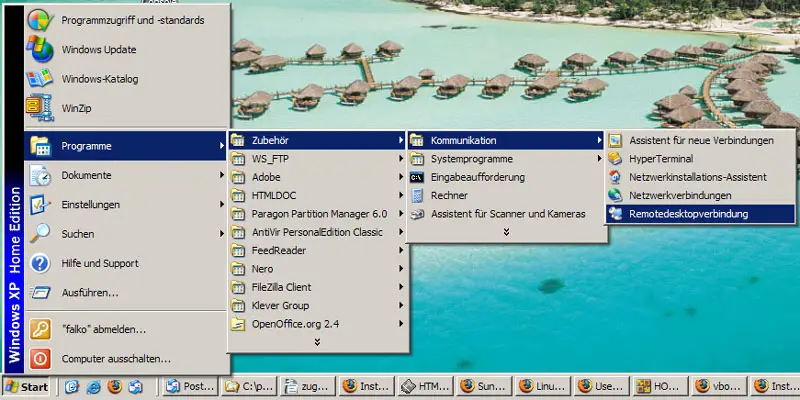

You can use the built-in Remote Desktop Connection utility to connect to the VM:

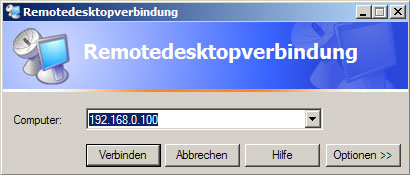

Type in the hostname or IP address of the host (not the guest!):

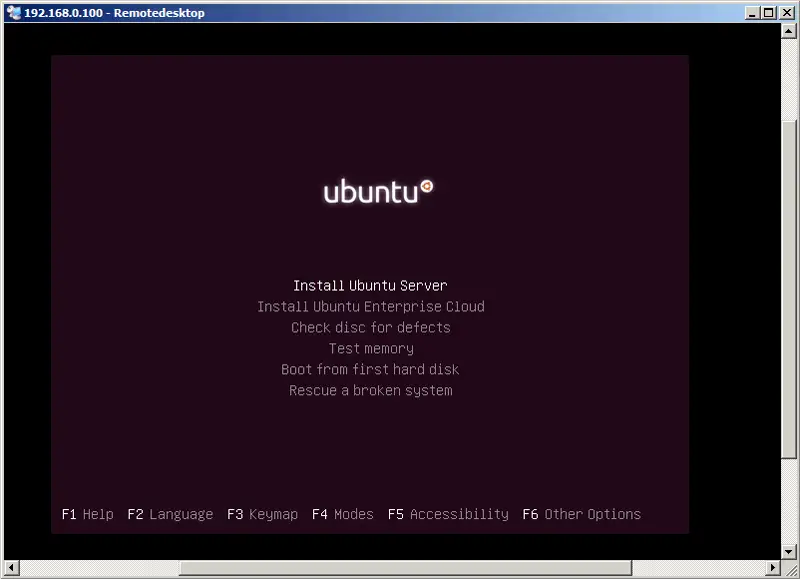

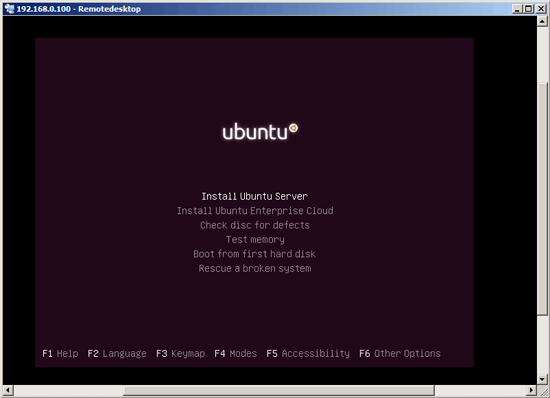

And voilà, you should be connected to the VM:



4.2 Linux

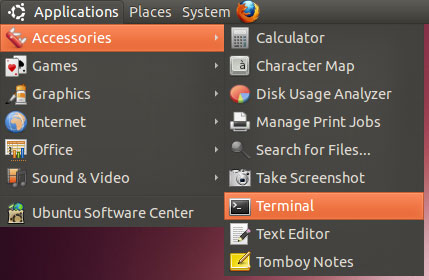

On Linux desktops, you can use the rdesktop command to connect to the VM. Open a terminal (on Ubuntu, for example, it's under Applications > Accessories > Terminal)...

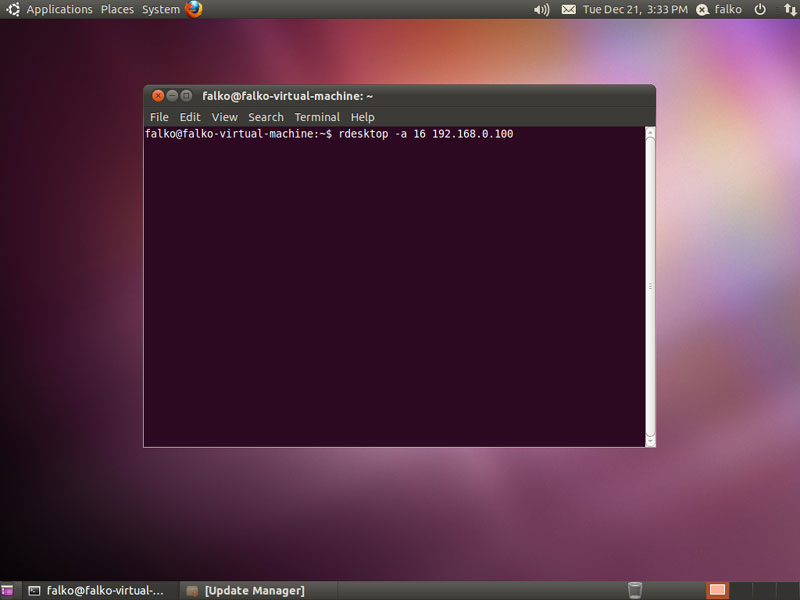

... and type in the following command:

rdesktop -a 16 192.168.0.100

(192.168.0.100 is the host IP address, not the one of the guest - replace it with your own IP address or hostname; -a 16 means 16 bit colour depth.)

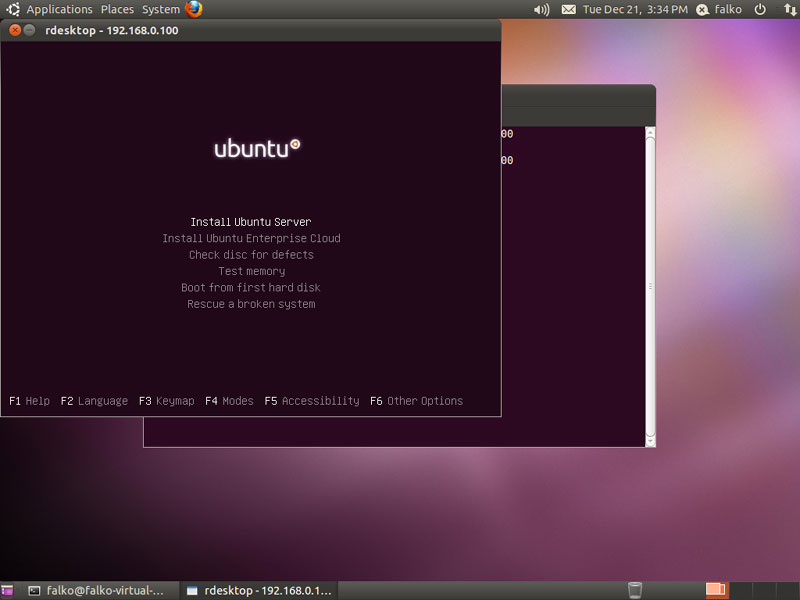

And voilà, you should be connected to the VM:



4.3 If The Remote Desktop Connection Doesn't Work...

If the remote desktop connection doesn't work, you've probably missed the step where I install the VirtualBox extension pack in chapter 2. Please install the extension pack now, stop your virtual machine (see chapter 3.3), and modify your virtual machine to accept remote desktop connections:

VBoxManage modifyvm "Ubuntu 10.10 Server" --vrde on

(If the extension pack is already installed when you create your virtual machine, remote desktop connections are automatically enabled.)

Then start your virtual machine again.



5 Links

up

Copyright © 2010 Falko Timme
All Rights Reserved.
add comment | view as pdf view as pdf | print: this | all page(s)
Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
sudo VBoxManage extpack
Submitted by Jarod Liu (not registered) on Wed, 2011-01-19 03:57.
sudo VBoxManage extpack install Oracle_VM_VirtualBox_Extension_Pack-4.0.2-69518.vbox-extpack
VBoxManage modifyvm "WinXP" --vrde on
VBoxHeadless --startvm "WinXP"
Oracle VM VirtualBox Headless Interface 4.0.2
(C) 2008-2011 Oracle Corporation
All rights reserved.
VRDE server failed to start.
VRDE server is inactive.
I've no idea what's wrong. please give me some hint to hunt the problem.
reply | view as pdf view as pdf
Re: sudo VBoxManage extpack
Submitted by gary_gb (registered user) on Wed, 2011-01-26 23:42.

Hi,

Had exactly the same error come up myself just now.

It seems that if VirtualBox is running more than one VM it must be given a specified port.

If nothing is set, by default the port of the first VM host fired up will be TCP port 3389.

e.g. to set a VM to use port 3390

VBoxManage modifyvm "VM name" --vrdeport 3390

Then fire up the VM as normal:

 VBoxHeadless --startvm "VM name" &
Oracle VM VirtualBox Headless Interface 4.0.2
(C) 2008-2011 Oracle Corporation
All rights reserved.

VRDE server is listening on port 3390.

Other VM's will need a different port.

HTH, as there were hardly any results when googling that error.

reply | view as pdf view as pdf
for rdp you have to install
Submitted by schtebo (not registered) on Mon, 2011-01-10 21:39.

for rdp you have to install extension pack in virtualbox 4.0.

VBoxManage extpack install Oracle_VM_VirtualBox_Extension_Pack-4.0.0-69151.vbox-extpack

reply | view as pdf view as pdf
Problem is that you need to login and start the VM manually.
Submitted by Anonymous (not registered) on Mon, 2011-01-10 18:50.
VM in Headless servers would be useful when we can start and shutdown the VM as part of the OS. The need to log-in into the host (even SSH) make this more like an application rather than a service. (I have seen some hacks to start the VM along with the system but that was not straight forward. Shutting down VM along with the host might be even more complex.). Hopefully in a future version VBox will start and shutdown along with (some of) the Virtual machines automatically (like apache).
reply | view as pdf view as pdf
Re: Problem is that you need to login and start the VM manually.
Submitted by Anonymous (not registered) on Fri, 2011-01-14 19:31.

It's a simple bash script away! Take any of the scripts in /etc/init.d and modify it to launch and stop vbox. Mine suspends the VM at host shutdown, but I added an option to gracefully shutdown the guest.

reply | view as pdf view as pdf
Remote SSH Connection
Submitted by Alexius Diakogiannis (not registered) on Wed, 2011-01-05 11:11.

Hi, great job but there is a problem

 If you wish to use  VBox as a vmware alternative then your main problem is that when you will connect to the host machine through ssh and start the VM's, these will stop working as soon as you close your SSH connection (at least in Ubuntu 9.10 that I did my last test). That is because the proccess that is initiated is binded to my SSH sessio. Is there a work around on that to make it a true vmware alternative?

reply | view as pdf view as pdf
Re: Remote SSH Connection
Submitted by ubuntugeek2010 (registered user) on Mon, 2011-01-10 07:16.

Actually you can get around that issue by using nohup together with & on VBoxHeadless

 e.g.

 nohup VBoxHeadless --startvm "vmname" --vrdp=config &

 Even when your ssh session has ended the VBoxHeadless process will carry on. If you want to start the VM when it boots you can include the above code in a .sh file and change the permissions as 775. Then using crontab -e and enter the following

@reboot /home/janantha/vboxkickstart.sh



reply | view as pdf view as pdf
Re: Re: Remote SSH Connection
Submitted by K_light (not registered) on Sun, 2011-04-10 00:41.
I tried your method ubuntugeek2010 but mine won't run at boot :(
reply | view as pdf view as pdf
