6 Configuring Apache

To make Apache work with PHP-FPM, we need the following configuration:

        <IfModule mod_fastcgi.c>
                DirectoryIndex index.html index.shtml index.cgi index.php
                AddHandler php5-fcgi .php
                Action php5-fcgi /php5-fcgi
                Alias /php5-fcgi /usr/lib/cgi-bin/php5-fcgi
                FastCgiExternalServer /usr/lib/cgi-bin/php5-fcgi -host 127.0.0.1:9000 -pass-header Authorization
        </IfModule>

(To learn more about the FastCgiExternalServer directive, take a look at http://www.fastcgi.com/mod_fastcgi/docs/mod_fastcgi.html#FastCgiExternalServer.)

You can put it in the global Apache configuration (so it's enabled for all vhosts), for example in /etc/httpd/conf.d/fastcgi.conf, or you can place it in each vhost that should use PHP-FPM. I want to use PHP-FPM with all vhosts so I open /etc/httpd/conf.d/fastcgi.conf...

vi /etc/httpd/conf.d/fastcgi.conf

... and put the following section at the end:

[...]
        <IfModule mod_fastcgi.c>
                DirectoryIndex index.html index.shtml index.cgi index.php
                AddHandler php5-fcgi .php
                Action php5-fcgi /php5-fcgi
                Alias /php5-fcgi /usr/lib/cgi-bin/php5-fcgi
                FastCgiExternalServer /usr/lib/cgi-bin/php5-fcgi -host 127.0.0.1:9000 -pass-header Authorization
        </IfModule>

The /usr/lib/cgi-bin/ directory must exist, so we create it as follows:

mkdir /usr/lib/cgi-bin/

Restart Apache afterwards:

/etc/init.d/httpd restart

Now create the following PHP file in the document root /var/www/html of the default Apache vhost:

vi /var/www/html/info.php

<?php
phpinfo();
?>

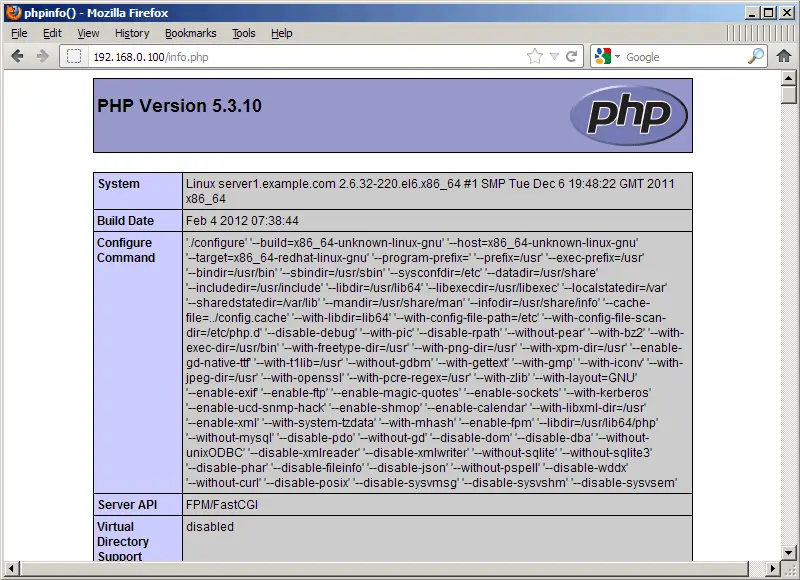

Now we call that file in a browser (e.g. http://192.168.0.100/info.php):

As you see, PHP5 is working, and it's working through FPM/FastCGI, as shown in the Server API line. If you scroll further down, you will see all modules that are already enabled in PHP5. MySQL is not listed there which means we don't have MySQL support in PHP5 yet.



7 Getting MySQL Support In PHP5

To get MySQL support in PHP, we can install the php-mysql package. It's a good idea to install some other PHP5 modules as well as you might need them for your applications. You can search for available PHP5 modules like this:

yum search php

Pick the ones you need and install them like this:

yum install php-mysql php-gd php-imap php-ldap php-mbstring php-odbc php-pear php-xml php-xmlrpc

Now reload PHP-FPM:

/etc/init.d/php-fpm reload

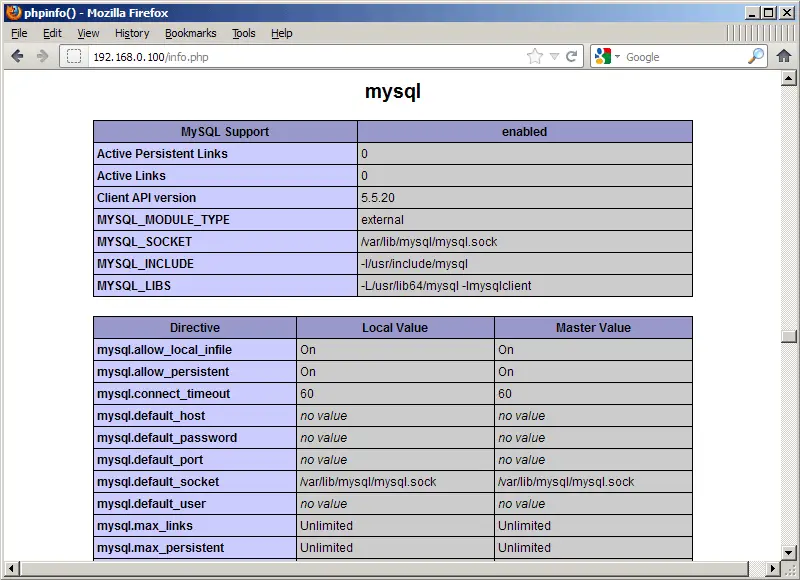

Now reload http://192.168.0.100/info.php in your browser and scroll down to the modules section again. You should now find lots of new modules there, including the MySQL module:



8 phpMyAdmin

phpMyAdmin is a web interface through which you can manage your MySQL databases. It's a good idea to install it:

yum install phpmyadmin

Now we configure phpMyAdmin. We change the Apache configuration so that phpMyAdmin allows connections not just from localhost (by commenting out the <Directory "/usr/share/phpmyadmin"> stanza):

vi /etc/httpd/conf.d/phpmyadmin.conf

#
#  Web application to manage MySQL
#

#<Directory "/usr/share/phpmyadmin">
#  Order Deny,Allow
#  Deny from all
#  Allow from 127.0.0.1
#</Directory>

Alias /phpmyadmin /usr/share/phpmyadmin
Alias /phpMyAdmin /usr/share/phpmyadmin
Alias /mysqladmin /usr/share/phpmyadmin

Next we change the authentication in phpMyAdmin from cookie to http:

vi /usr/share/phpmyadmin/config.inc.php

[...]
/* Authentication type */
$cfg['Servers'][$i]['auth_type'] = 'http';
[...]

Restart Apache:

/etc/init.d/httpd restart

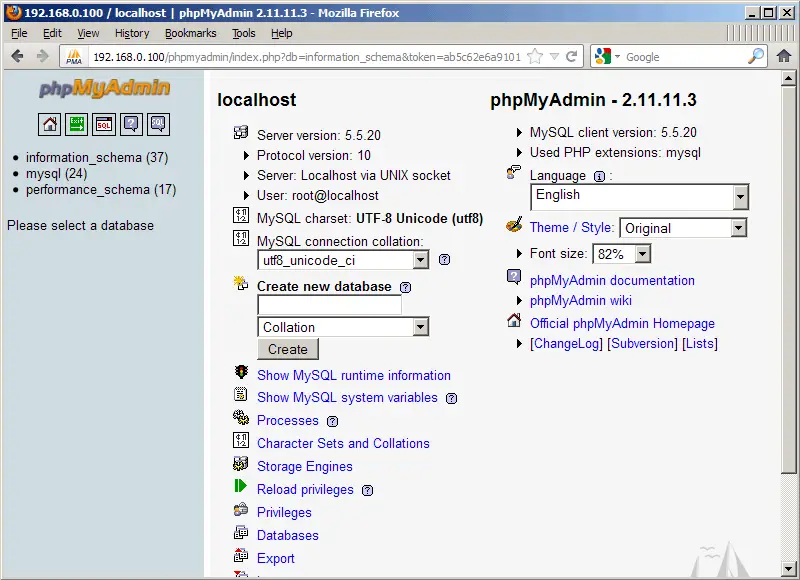

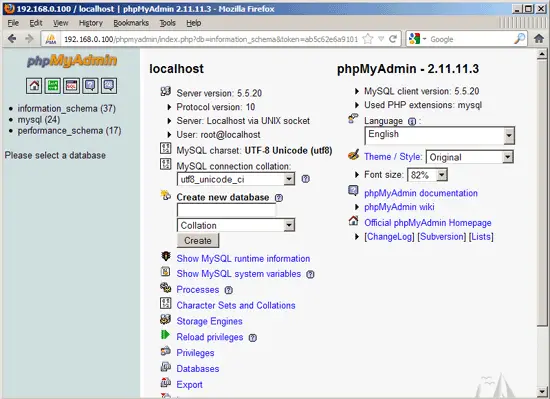

Afterwards, you can access phpMyAdmin under http://192.168.0.100/phpmyadmin/:



9 Making PHP-FPM Use A Unix Socket

By default PHP-FPM is listening on port 9000 on 127.0.0.1. It is also possible to make PHP-FPM use a Unix socket which avoids the TCP overhead. To do this, open /etc/php-fpm.d/www.conf...

vi /etc/php-fpm.d/www.conf

... and make the listen line look as follows:

[...]
;listen = 127.0.0.1:9000
listen = /tmp/php5-fpm.sock
[...]

Then reload PHP-FPM:

/etc/init.d/php-fpm reload

Next go through your Apache configuration and all your vhosts and change the lineFastCgiExternalServer /usr/lib/cgi-bin/php5-fcgi -host 127.0.0.1:9000 -pass-header Authorization to FastCgiExternalServer /usr/lib/cgi-bin/php5-fcgi -socket /tmp/php5-fpm.sock -pass-header Authorization, e.g. like this:

vi /etc/httpd/conf.d/fastcgi.conf

[...]
        <IfModule mod_fastcgi.c>
                DirectoryIndex index.html index.shtml index.cgi index.php
                AddHandler php5-fcgi .php
                Action php5-fcgi /php5-fcgi
                Alias /php5-fcgi /usr/lib/cgi-bin/php5-fcgi
                FastCgiExternalServer /usr/lib/cgi-bin/php5-fcgi -socket /tmp/php5-fpm.sock -pass-header Authorization
        </IfModule>

Finally reload Apache:

/etc/init.d/httpd reload



10 Links
