Using iRedMail And OpenVPN For Virtual Email Hosting And VPN Services (CentOS 5.4)

Want to support HowtoForge? Become a subscriber!

Submitted by eddiechen (Contact Author) (Forums) on Wed, 2010-04-14 16:59. :: CentOS

Using iRedMail And OpenVPN For Virtual Email Hosting And VPN Services, With Central Authentication Against OpenLDAP (CentOS 5.4)

iRedMail is a shell script that lets you quickly deploy a full-featured mail solution in less than 2 minutes. iRedMail supports both OpenLDAP and MySQL as backends for storing virtual domains and users.

This tutorial shows you how to integrate OpenVPN into iredmail's ldap backend on CentOS 5.x, Let openvpn auth OpenLDAP,passwords will be stored in ldap and you can change the password though webmail.

This tutorial is based on CentOS 5.4, so I suggest set up a minimum CentOS 5.4 system, install iredmail 0.6 and choose openldap as the backend, as shown in these tutorials:



1 Install OpenVPN

Use the EPEL yum repository to install OpenVPN.

rpm -Uhv http://download.fedora.redhat.com/pub/epel/5/i386/epel-release-5-3.noarch.rpm # <-- For i386
rpm -Uhv http://download.fedora.redhat.com/pub/epel/5/x86_64/epel-release-5-3.noarch.rpm # <-- For x86_64

Install OpenVPN and ldap support:

yum install openvpn openvpn-auth-ldap
chkconfig openvpn on

Install dnsmasq - to forward DNS traffic through the VPN you will need to install the dnsmasq package:

yum install dnsmasq
/etc/init.d/dnsmasq start
chkconfig dnsmasq on



2 easy-rsa

The OpenVPN package provides a set of encryption-related tools called "easy-rsa". These scripts are located by default in the /usr/share/doc/openvpn/examples/easy-rsa/ directory. However, in order to function properly, these scripts should be located in the /etc/openvpn directory. We also need to copy the Openvpn config example file to /etc/openvpn.

cp -R /usr/share/openvpn/easy-rsa/ /etc/openvpn



Configure Public Key Infrastructure Variables

Before we can generate the public key infrastructure for OpenVPN we must configure a few variables that the easy-rsa scripts will use to generate the scripts. These variables are set near the end of the /etc/openvpn/easy-rsa/2.0/vars file. Here is an example of the relevant values:

Edit /etc/openvpn/easy-rsa/2.0/vars:

export KEY_COUNTRY="CN"
export KEY_PROVINCE="BJ"
export KEY_CITY="BeiJing"
export KEY_ORG="iredmail"
export KEY_EMAIL="www@example.com"



Initialize the Public Key Infrastructure (PKI)

Issue the following commands in sequence to internalize the certificate authority and the public key infrastructure:

cd /etc/openvpn/easy-rsa/2.0/
chmod +rwx *
source ./vars
./clean-all
./pkitool --initca



Generate Certificates

With the certificate authority generated you can generate the private key for the server. This script will also prompt you for additional information. By default, the Common Name for this key will be "server". You can change these values in cases where it makes sense to use alternate values. To accomplish this, issue the following command:

./pkitool --server server



Generate Diffie Hellman Parameters Link

The "Diffie Hellman Parameters" govern the method of key exchange and authentication used by the OpenVPN server. Issue the following command to generate these parameters:

./build-dh



Relocate Secure Keys

The keys and certificates for the server need to be relocated to the /etc/openvpn directory so the OpenVPN server process can access them. These files are:

  • ca.crt
  • ca.key
  • dh1024.pem
  • server.crt
  • server.key

cp keys/{ca.crt,ca.key,server.crt,server.key,dh1024.pem} /etc/openvpn/

These files no need leave your server. Maintaining integrity and control over these files is of the utmost importance to the integrity of your server. If you ever need to move or back up these keys, ensure that they're encrypted and secured.



3 Configure OpenVPN support LDAP auth

Find cn=vmail password

The vmail password was randomly created during iredmail install. You can find the password in /etc/postfix/ldap_virtual_mailbox_domains.cf:

cat /etc/postfix/ldap_virtual_mailbox_domains.cf

bind_dn         = cn=vmail,dc=example,dc=com
bind_pw         = InYTi8qGjamTb6Me2ESwbb6rxQUs5y #cn=vmail password



Configure LDAP auth in /etc/openvpn/auth/ldap.conf

# LDAP server URL
URL             ldap://localhost
# Bind DN (If your LDAP server doesn't support anonymous binds)
BindDN                cn=vmail,dc=example,dc=com
# Bind Password cn=vmail password
Password      InYTi8qGjamTb6Me2ESwbb6rxQUs5y
# Network timeout (in seconds)
Timeout         15


# Base DN
BaseDN          "o=domains,dc=example,dc=com"
# User Search Filter
SearchFilter    "(&(objectClass=mailUser)(accountStatus=active)(enabledService=vpn))"

# Require Group Membership
RequireGroup    false



4 Configuring OpenVPN

We'll now need to configure our server file. There is an example file in /usr/share/doc/openvpn-2.1.1/examples/sample-config-files. Issue the following sequence of commands to retrieve the example configuration files and move them to the required directories:

cp /usr/share/doc/openvpn-2.1.1/sample-config-files/server.conf /etc/openvpn/

Now edit /etc/openvpn/server.conf:

push "redirect-gateway def1"
push "dhcp-option DNS 10.8.0.1"
plugin /usr/lib/openvpn/plugin/lib/openvpn-auth-ldap.so /etc/openvpn/auth/ldap.conf
client-cert-not-required



5 Enable VPN service for mail user

Use phpLDAPadmin or other tools to add sample LDAP attributes and values for existing mail users.

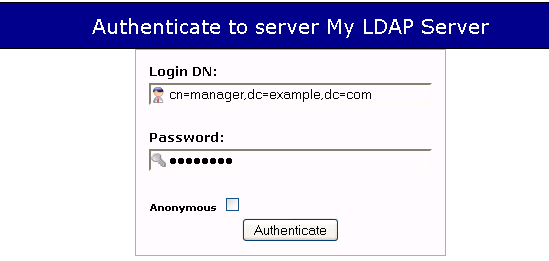

Log into phpLDAPadmin:

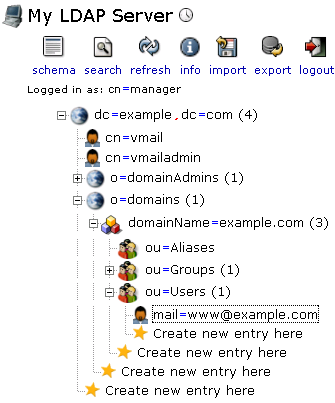

Find the existing mail user www@example.com:

Enable the VPN service for the user www@example.com:
