MySQL

apt-get install mysql-server mysql-client libmysqlclient12-dev

mysqladmin -u root password yourrootsqlpassword
mysqladmin -h server1.example.com -u root password yourrootsqlpassword

When you run netstat -tap you should now see a line like this:

tcp        0      0 localhost.localdo:mysql *:*                     LISTEN     2449/mysqld

which means that MySQL is accessible on port 3306. You can go to the next section (Postfix). If you do not see this line, edit /etc/mysql/my.cnf and comment out skip-networking:

# skip-networking

If you had to edit /etc/mysql/my.cnf you have to restart MySQL:

/etc/init.d/mysql restart

Postfix

In order to install Postfix with SMTP-AUTH and TLS do the following steps:

apt-get install postfix postfix-tls libsasl2 sasl2-bin libsasl2-modules libdb3-util procmail (1 line!)
dpkg-reconfigure postfix


<- Internet Site
<- NONE
<- server1.example.com
<- server1.example.com, localhost.example.com, localhost
<- No
<- 127.0.0.0/8
<- 0
<- +

postconf -e 'smtpd_sasl_local_domain ='
postconf -e 'smtpd_sasl_auth_enable = yes'
postconf -e 'smtpd_sasl_security_options = noanonymous'
postconf -e 'broken_sasl_auth_clients = yes'
postconf -e 'smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination'
postconf -e 'inet_interfaces = all'
echo 'pwcheck_method: saslauthd' >> /etc/postfix/sasl/smtpd.conf
echo 'mech_list: plain login' >> /etc/postfix/sasl/smtpd.conf

mkdir /etc/postfix/ssl
cd /etc/postfix/ssl/
openssl genrsa -des3 -rand /etc/hosts -out smtpd.key 1024
chmod 600 smtpd.key
openssl req -new -key smtpd.key -out smtpd.csr
openssl x509 -req -days 3650 -in smtpd.csr -signkey smtpd.key -out smtpd.crt
openssl rsa -in smtpd.key -out smtpd.key.unencrypted
mv -f smtpd.key.unencrypted smtpd.key
openssl req -new -x509 -extensions v3_ca -keyout cakey.pem -out cacert.pem -days 3650

postconf -e 'smtpd_tls_auth_only = no'
postconf -e 'smtp_use_tls = yes'
postconf -e 'smtpd_use_tls = yes'
postconf -e 'smtp_tls_note_starttls_offer = yes'
postconf -e 'smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key'
postconf -e 'smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt'
postconf -e 'smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem'
postconf -e 'smtpd_tls_loglevel = 1'
postconf -e 'smtpd_tls_received_header = yes'
postconf -e 'smtpd_tls_session_cache_timeout = 3600s'
postconf -e 'tls_random_source = dev:/dev/urandom'
postconf -e 'myhostname = server1.example.com'

The file /etc/postfix/main.cf should now look like this:

# See /usr/share/postfix/main.cf.dist for a commented, more complete version

smtpd_banner = $myhostname ESMTP $mail_name (Ubuntu)
biff = no

# appending .domain is the MUA's job.
append_dot_mydomain = no

# Uncomment the next line to generate "delayed mail" warnings
#delay_warning_time = 4h

myhostname = server1.example.com
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases
myorigin = /etc/mailname
mydestination = server1.example.com, localhost.example.com, localhost
relayhost =
mynetworks = 127.0.0.0/8
mailbox_size_limit = 0
recipient_delimiter = +
inet_interfaces = all
mailbox_command =
smtpd_sasl_local_domain =
smtpd_sasl_auth_enable = yes
smtpd_sasl_security_options = noanonymous
broken_sasl_auth_clients = yes
smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination
smtpd_tls_auth_only = no
smtp_use_tls = yes
smtpd_use_tls = yes
smtp_tls_note_starttls_offer = yes
smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key
smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt
smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem
smtpd_tls_loglevel = 1
smtpd_tls_received_header = yes
smtpd_tls_session_cache_timeout = 3600s
tls_random_source = dev:/dev/urandom

/etc/init.d/postfix restart

Authentication will be done by saslauthd. We have to change a few things to make it work properly. Because Postfix runs chrooted in /var/spool/postfix we have to do the following:

mkdir -p /var/spool/postfix/var/run/saslauthd
rm -fr /var/run/saslauthd

Now we have to edit /etc/default/saslauthd in order to activate saslauthd. Remove # in front of START=yes and add the line PARAMS="-m /var/spool/postfix/var/run/saslauthd":

# This needs to be uncommented before saslauthd will be run automatically
START=yes

PARAMS="-m /var/spool/postfix/var/run/saslauthd"

# You must specify the authentication mechanisms you wish to use.
# This defaults to "pam" for PAM support, but may also include
# "shadow" or "sasldb", like this:
# MECHANISMS="pam shadow"

MECHANISMS="pam"

Finally we have to edit /etc/init.d/saslauthd. Change the line

dir=`dpkg-statoverride --list $PWDIR`

to

#dir=`dpkg-statoverride --list $PWDIR`

Then change the variables PWDIR and PIDFILE and add the variable dir at the beginning of the file:

PWDIR="/var/spool/postfix/var/run/${NAME}"
PIDFILE="${PWDIR}/saslauthd.pid"
dir="root sasl 755 ${PWDIR}"

/etc/init.d/saslauthd should now look like this:

#!/bin/sh -e

NAME=saslauthd
DAEMON="/usr/sbin/${NAME}"
DESC="SASL Authentication Daemon"
DEFAULTS=/etc/default/saslauthd
PWDIR="/var/spool/postfix/var/run/${NAME}"
PIDFILE="${PWDIR}/saslauthd.pid"
dir="root sasl 755 ${PWDIR}"

createdir() {
# $1 = user
# $2 = group
# $3 = permissions (octal)
# $4 = path to directory
[ -d "$4" ] || mkdir -p "$4"
chown -c -h "$1:$2" "$4"
chmod -c "$3" "$4"
}

test -f "${DAEMON}" || exit 0

# Source defaults file; edit that file to configure this script.
if [ -e "${DEFAULTS}" ]; then
. "${DEFAULTS}"
fi

# If we're not to start the daemon, simply exit
if [ "${START}" != "yes" ]; then
exit 0
fi

# If we have no mechanisms defined
if [ "x${MECHANISMS}" = "x" ]; then
echo "You need to configure ${DEFAULTS} with mechanisms to be used"
exit 0
fi

# Add our mechanimsms with the necessary flag
PARAMS="${PARAMS} -a ${MECHANISMS}"

START="--start --quiet --pidfile ${PIDFILE} --startas ${DAEMON} --name ${NAME} -- ${PARAMS}"

# Consider our options
case "${1}" in
start)
echo -n "Starting ${DESC}: "
#dir=`dpkg-statoverride --list $PWDIR`
test -z "$dir" || createdir $dir
if start-stop-daemon ${START} >/dev/null 2>&1 ; then
echo "${NAME}."
else
if start-stop-daemon --test ${START} >/dev/null 2>&1; then
echo "(failed)."
exit 1
else
echo "${DAEMON} already running."
exit 0
fi
fi
;;
stop)
echo -n "Stopping ${DESC}: "
if start-stop-daemon --stop --quiet --pidfile "${PIDFILE}" \
--startas ${DAEMON} --retry 10 --name ${NAME} \
>/dev/null 2>&1 ; then
echo "${NAME}."
else
if start-stop-daemon --test ${START} >/dev/null 2>&1; then
echo "(not running)."
exit 0
else
echo "(failed)."
exit 1
fi
fi
;;
restart|force-reload)
$0 stop
exec $0 start
;;
*)
echo "Usage: /etc/init.d/${NAME} {start|stop|restart|force-reload}" >&2
exit 1
;;
esac

exit 0

Now start saslauthd:

/etc/init.d/saslauthd start

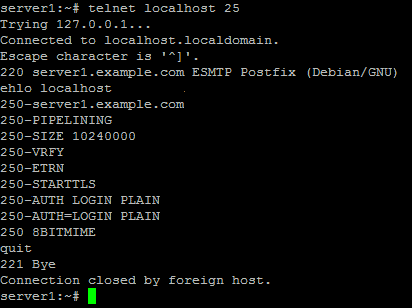

To see if SMTP-AUTH and TLS work properly now run the following command:

telnet localhost 25

After you have established the connection to your postfix mail server type

ehlo localhost

If you see the lines

250-STARTTLS

and

250-AUTH

everything is fine.

Type

quit

to return to the system's shell.

Courier-IMAP/Courier-POP3

Install Courier-IMAP/Courier-IMAP-SSL (for IMAPs on port 993) and Courier-POP3/Courier-POP3-SSL (for POP3s on port 995).

apt-get install courier-authdaemon courier-base courier-imap courier-imap-ssl courier-pop courier-pop-ssl courier-ssl gamin libgamin0 libglib2.0-0 (one line!)

<- No
<- OK

Then configure Postfix to deliver emails to a user's Maildir:

postconf -e 'home_mailbox = Maildir/'
postconf -e 'mailbox_command ='

/etc/init.d/postfix restart

Please go sure to enable Maildir under Management -> Settings -> EMail in the ISPConfig web interface.
