Submitted by falko (Contact Author) (Forums) on Wed, 2005-07-20 15:08. ::

Postfix With SMTP-AUTH And TLS

apt-get install cyrus-sasl cyrus-sasl-crammd5 cyrus-sasl-devel cyrus-sasl-digestmd5 cyrus-sasl-gssapi cyrus-sasl-otp cyrus-sasl-plain cyrus-sasl-saslauthd

chkconfig --add saslauthd
/etc/init.d/saslauthd start

mkdir /etc/postfix/ssl
cd /etc/postfix/ssl/
openssl genrsa -des3 -rand /etc/hosts -out smtpd.key 1024
chmod 600 smtpd.key
openssl req -new -key smtpd.key -out smtpd.csr
openssl x509 -req -days 3650 -in smtpd.csr -signkey smtpd.key -out smtpd.crt
openssl rsa -in smtpd.key -out smtpd.key.unencrypted
mv -f smtpd.key.unencrypted smtpd.key
openssl req -new -x509 -extensions v3_ca -keyout cakey.pem -out cacert.pem -days 3650

postconf -e 'mydomain = example.com'
postconf -e 'myhostname = server1.$mydomain'
postconf -e 'smtpd_sasl_local_domain ='
postconf -e 'smtpd_sasl_auth_enable = yes'
postconf -e 'smtpd_sasl_security_options = noanonymous'
postconf -e 'broken_sasl_auth_clients = yes'
postconf -e 'smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,check_relay_domains'
postconf -e 'inet_interfaces = all'
postconf -e 'alias_maps = hash:/etc/aliases'
postconf -e 'smtpd_tls_auth_only = no'
postconf -e 'smtp_use_tls = yes'
postconf -e 'smtpd_use_tls = yes'
postconf -e 'smtp_tls_note_starttls_offer = yes'
postconf -e 'smtpd_tls_key_file = /etc/postfix/ssl/smtpd.key'
postconf -e 'smtpd_tls_cert_file = /etc/postfix/ssl/smtpd.crt'
postconf -e 'smtpd_tls_CAfile = /etc/postfix/ssl/cacert.pem'
postconf -e 'smtpd_tls_loglevel = 1'
postconf -e 'smtpd_tls_received_header = yes'
postconf -e 'smtpd_tls_session_cache_timeout = 3600s'
postconf -e 'tls_random_source = dev:/dev/urandom'

Now restart Postfix:

/etc/init.d/postfix restart

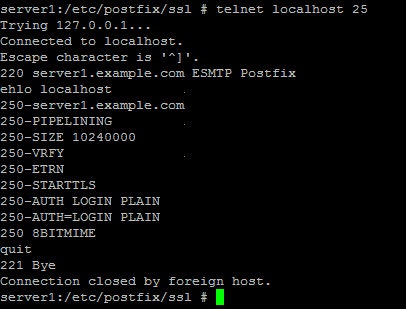

To see if SMTP-AUTH and TLS work properly now run the following command:

telnet localhost 25

After you have established the connection to your postfix mail server type

ehlo localhost

If you see the lines

250-STARTTLS

and

250-AUTH

everything is fine.

Type

quit

to return to the system's shell.


Courier-IMAP/Courier-POP3

I want to use a POP3/IMAP daemon that has Maildir support. That's why I use Courier-IMAP and Courier-POP3.

apt-get install courier-imap fam-server

/etc/init.d/courier-authdaemon start
/etc/init.d/courier-imap start
/etc/init.d/courier-imap-ssl start
/etc/init.d/courier-pop3 start
/etc/init.d/courier-pop3-ssl start
chkconfig --add courier-authdaemon
chkconfig --add courier-imap
chkconfig --add courier-imap-ssl
chkconfig --add courier-pop3
chkconfig --add courier-pop3-ssl

Then configure Postfix to deliver emails to a user's Maildir*:

postconf -e 'home_mailbox = Maildir/'
postconf -e 'mailbox_command ='

/etc/init.d/postfix restart

*Please note: You do not have to do this if you intend to use ISPConfig on your system as ISPConfig does the necessary configuration using procmail recipes. But please go sure to enable Maildir under Management -> Settings -> EMail in the ISPConfig web interface.


Apache/PHP5

apt-get install apache2 apache2-devel apache2-mod_perl apache2-mod_php5 apache2-prefork libapr0 perl-HTML-Parser perl-HTML-Tagset perl-Tie-IxHash perl-URI perl-libwww-perl php5 php5-devel

apt-get install php5-bcmath php5-bz2 php5-calendar php5-ctype php5-curl php5-dba php5-dbase php5-dbx php5-debuginfo php5-dio php5-dom php5-fam php5-filepro php5-ftp php5-gd php5-gettext php5-gmp php5-iconv php5-imap php5-ldap php5-mbstring php5-mcrypt php5-mhash php5-mysql php5-mysqli php5-ncurses php5-odbc php5-openssl php5-pcntl php5-pgsql php5-posix php5-readline php5-shmop php5-snmp php5-soap php5-sockets php5-sqlite php5-sysvsem php5-tokenizer php5-wddx php5-xmlrpc php5-xsl php5-yp php5-zlib php5-exif php5-fastcgi php5-pear php5-sysvmsg php5-sysvshm ImageMagick curl (1 line!)

chkconfig --add apache2

Edit /etc/mime.types. Comment out the following 2 lines:

# application/x-httpd-php                phtml pht php
# application/x-perl pl pm

Edit /etc/apache2/httpd.conf and change

DirectoryIndex index.html index.html.var

to

DirectoryIndex index.html index.htm index.shtml index.cgi index.php index.php5 index.php4 index.php3 index.pl index.html.var

Edit /etc/sysconfig/apache2 and add rewrite to the APACHE_MODULES line:

APACHE_MODULES="access actions alias auth [...] setenvif ssl suexec userdir php4 php5 rewrite"

Also add SSL to the APACHE_SERVER_FLAGS line:

APACHE_SERVER_FLAGS="SSL"

Then run

SuSEconfig
/etc/init.d/apache2 start


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by Anonymous (not registered) on Fri, 2006-04-21 00:27.

If you are having problem sending emails via smtp and are getting pam auth errors make sure you have a /etc/pam.d/smtp file, if not (like i did, for some reason) you can just copy the imap file and rename it smtp.
