The Perfect Server - Mandriva 2008 Free (Mandriva 2008.0)

Version 1.0
Author: Falko Timme <ft [at] falkotimme [dot] com>
Last edited 10/10/2007

This is a detailed description about how to set up a Mandriva 2008 Free (Mandriva 2008.0) server that offers all services needed by ISPs and hosters: Apache web server (SSL-capable), Postfix mail server with SMTP-AUTH and TLS, BIND DNS server, Proftpd FTP server, MySQL server, Courier POP3/IMAP, Quota, Firewall, etc. This tutorial is written for the 32-bit version of Mandriva 2008, but should apply to the 64-bit version with very little modifications as well.

I will use the following software:

  • Web Server: Apache 2
  • Mail Server: Postfix
  • DNS Server: BIND9
  • FTP Server: proftpd
  • POP3/IMAP server
  • Webalizer for web site statistics

In the end you should have a system that works reliably and is ready for the free webhosting control panel ISPConfig (i.e., ISPConfig runs on it out of the box).

I want to say first that this is not the only way of setting up such a system. There are many ways of achieving this goal but this is the way I take. I do not issue any guarantee that this will work for you!



1 Preliminary Note

In this example I will use the following settings for my system:

  • IP address: 192.168.0.100, gateway: 192.168.0.1
  • Host name: server1.example.com

Your settings will most likely differ, so you might have to adjust the instructions from this tutorial.



2 Requirements

To install such a system you will need the following:



3 The Base System

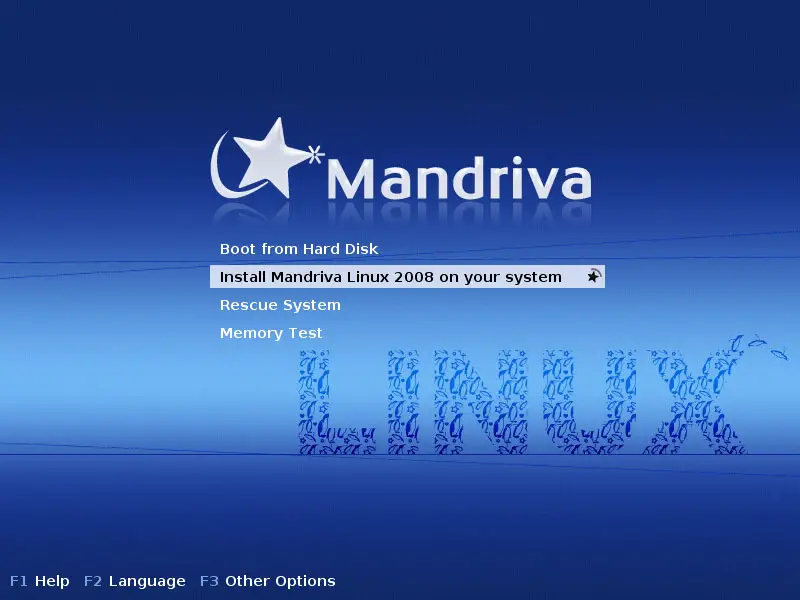

Boot from your Mandriva 2008 Free DVD. Select Install Mandriva Linux 2008 on your system and press Enter:

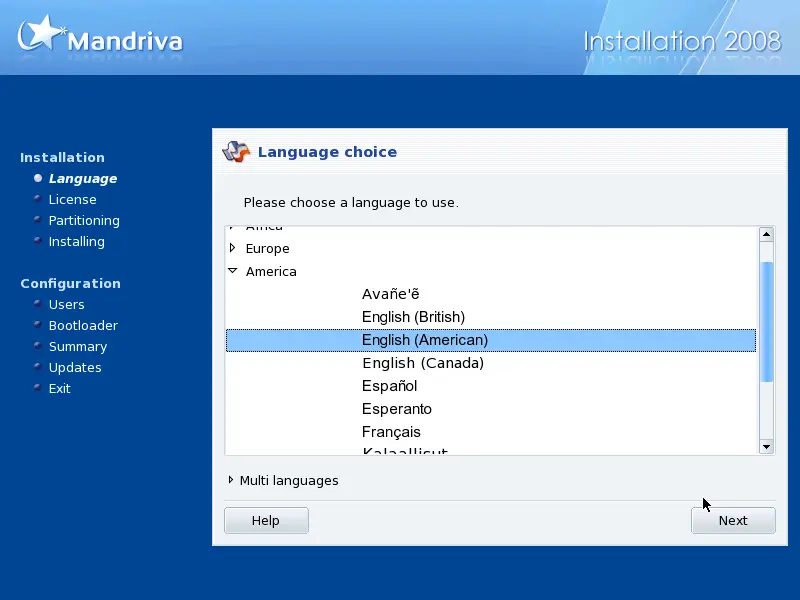

Choose your language next:

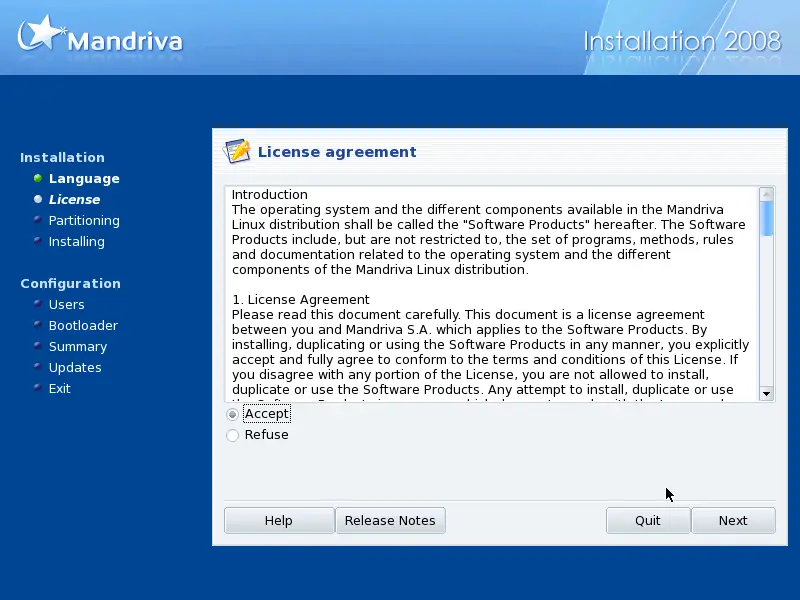

Accept the license and click on Next:

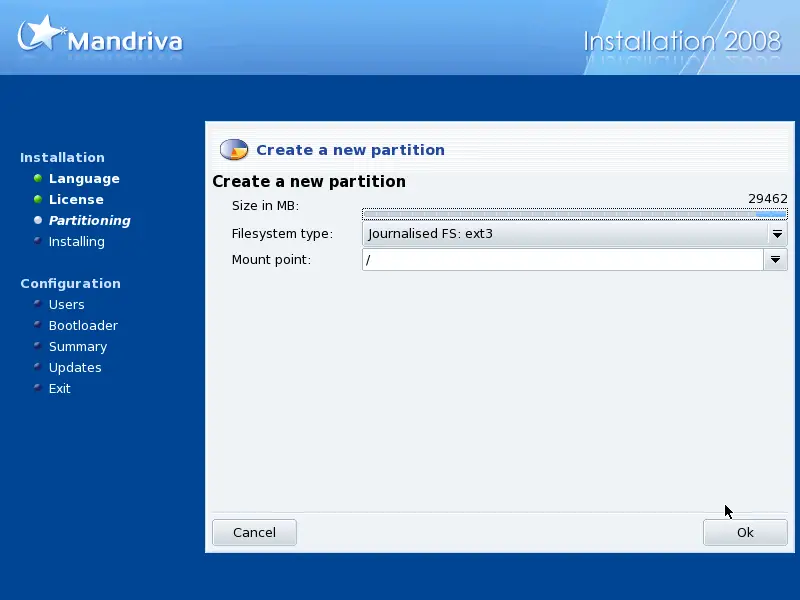

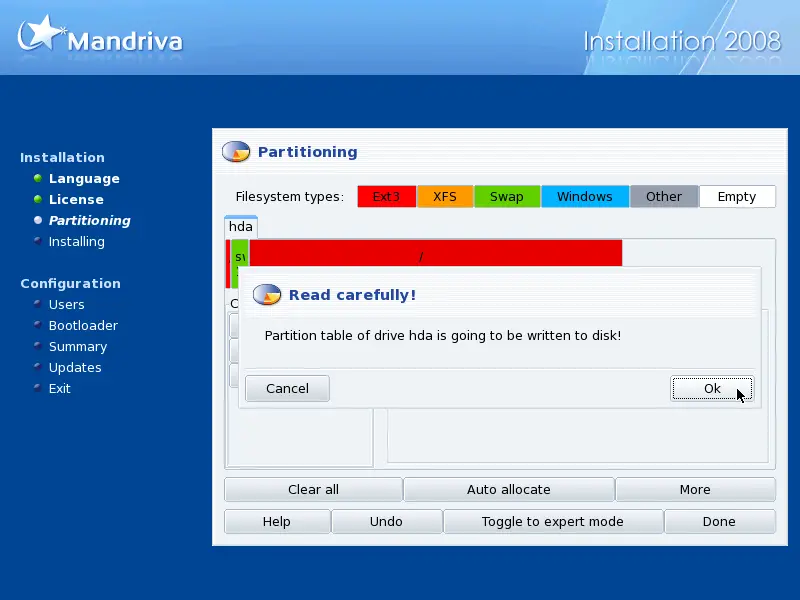

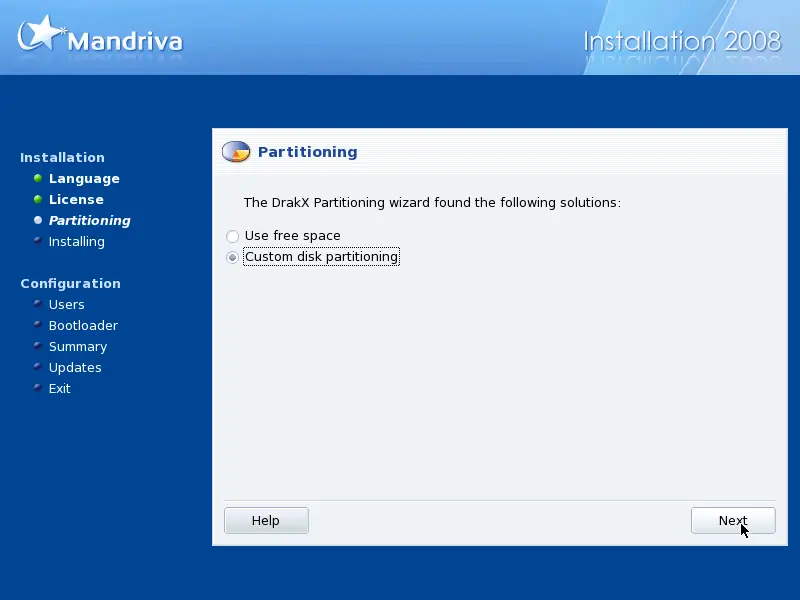

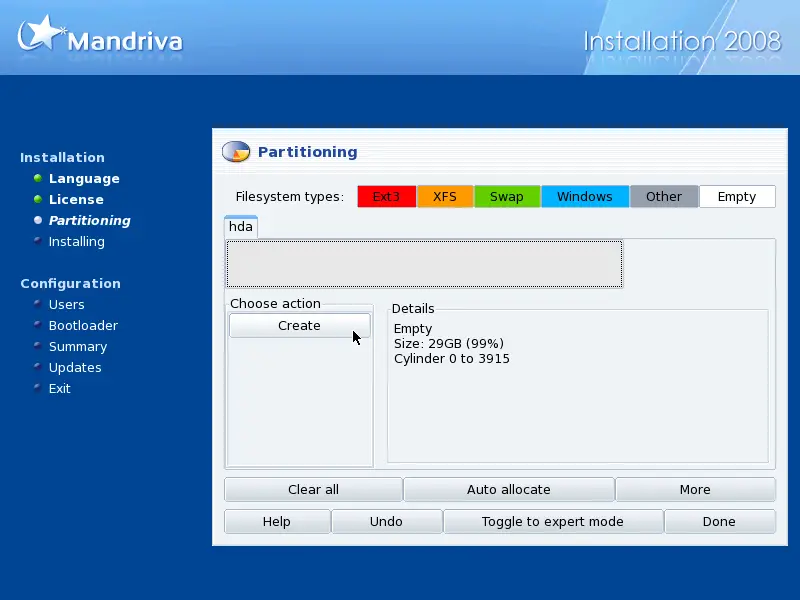

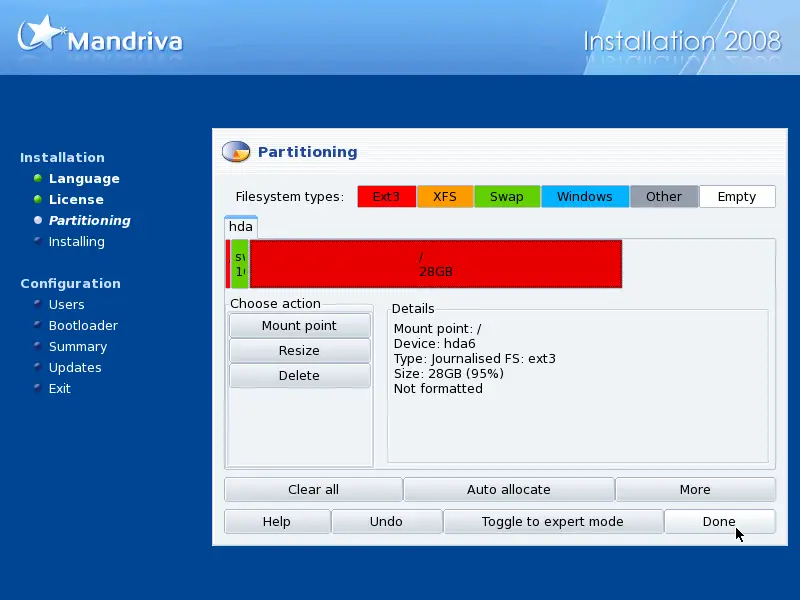

Now we have to partition our hard disk. You can choose to let the Mandriva installer do the partitioning, or you can do it yourself. I want to create a small /boot partition (about 150 MB) with the file system ext3, a swap partition and a huge / partition (again with ext3):

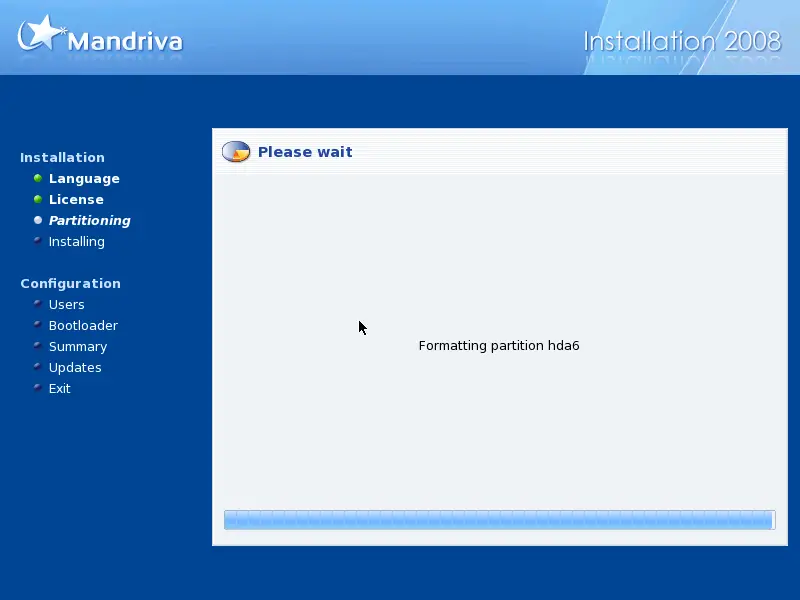

Afterwards, the new partitions are being formatted:

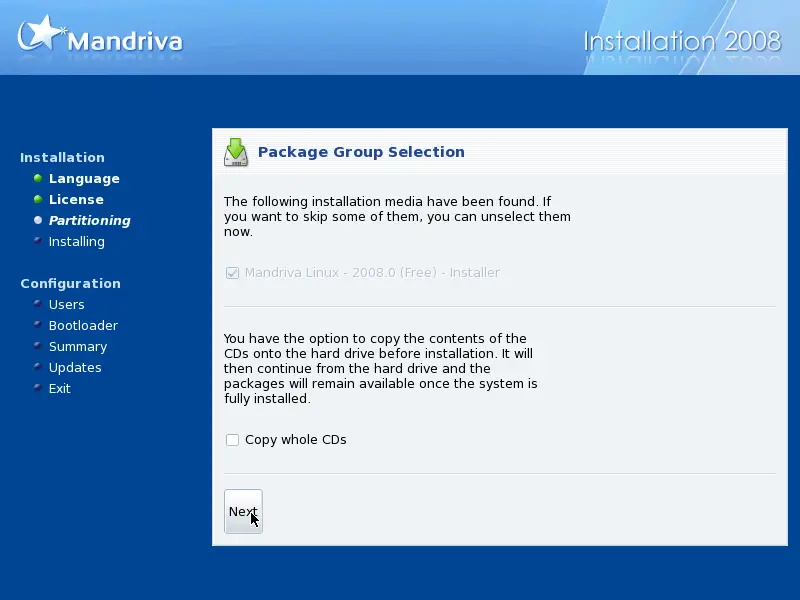

Click on Next on the following screen:
