Submitted by falko (Contact Author) (Forums) on Thu, 2013-03-14 18:37. ::

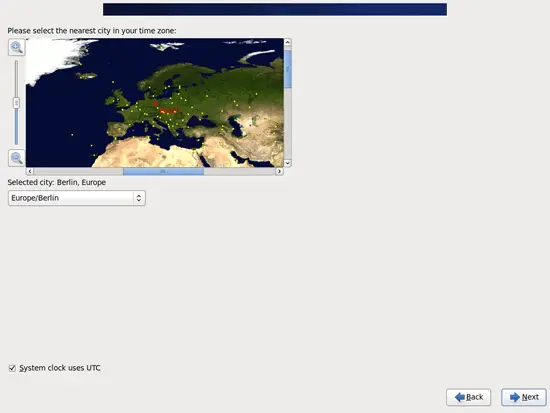

Choose your time zone:

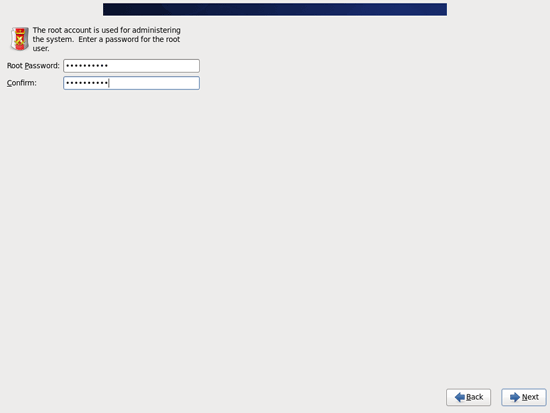

Give root a password:

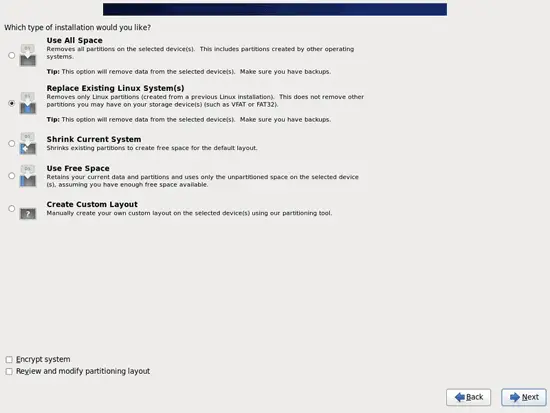

Next we do the partitioning. Select Replace Existing Linux System(s). This will give you a small /boot partition and a large / partition which is fine for our purposes:

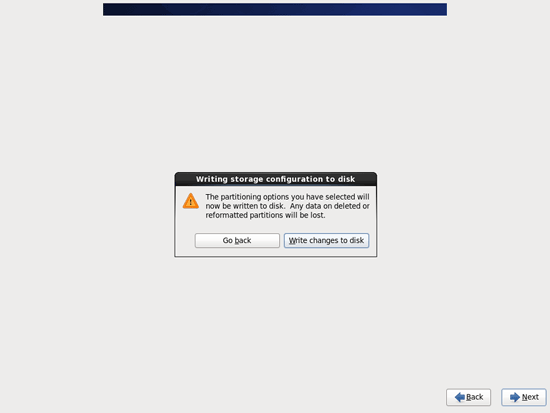

Select Write changes to disk:

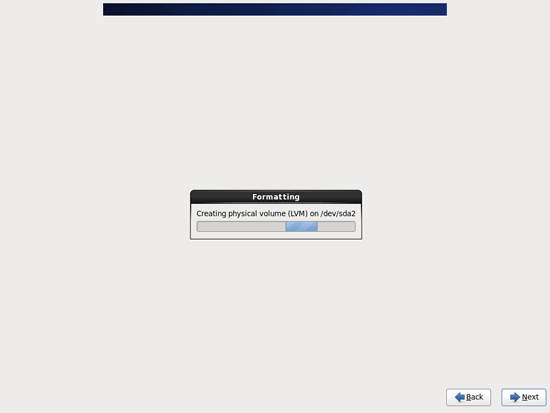

The hard drive is being formatted:

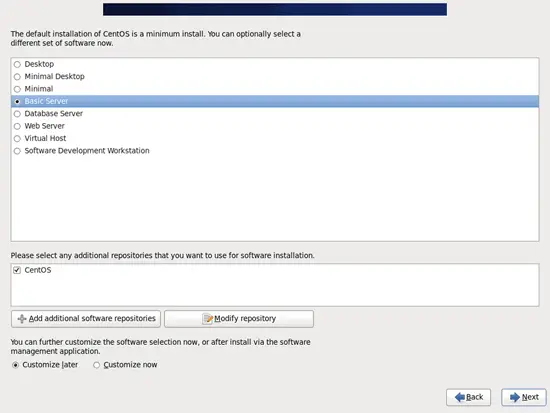

Now we select the software we want to install. Select Basic Server, then check CentOS in the additional repositories field, choose Customize later and click on Next:

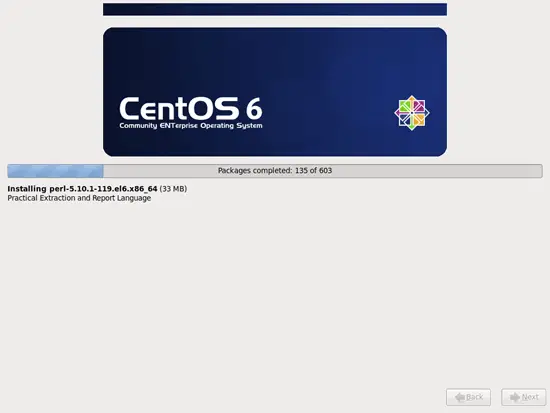

The installation begins. This will take a few minutes:

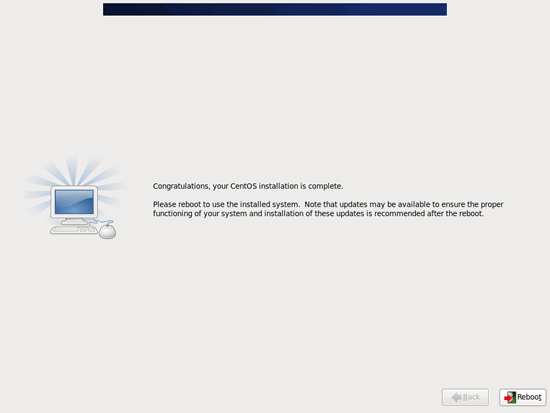

Finally, the installation is complete, and you can remove your DVD from the computer and reboot it:

After the reboot, log in as root.

I want to install ISPConfig at the end of this tutorial which comes with its own firewall. That's why I disable the default CentOS firewall now. Of course, you are free to leave it on and configure it to your needs (but then you shouldn't use any other firewall later on as it will most probably interfere with the CentOS firewall).

Run...

system-config-firewall-tui

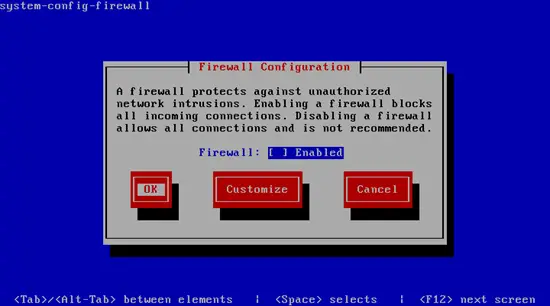

... and disable the firewall. Hit OK afterwards:

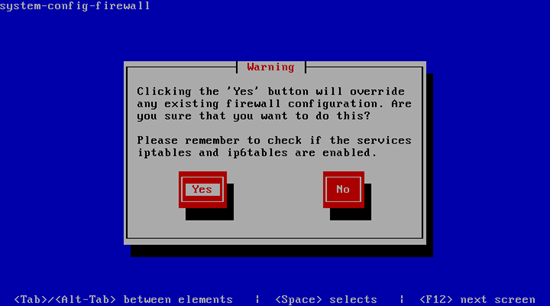

Confirm your choice by selecting Yes:

If you did not configure your network card during the installation, you can do that now. Run...

system-config-network

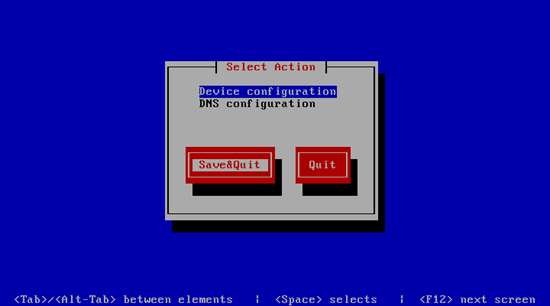

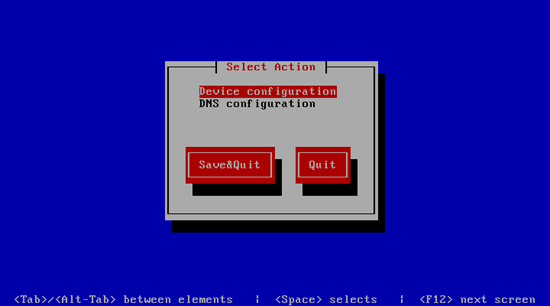

... and go to Device configuration:

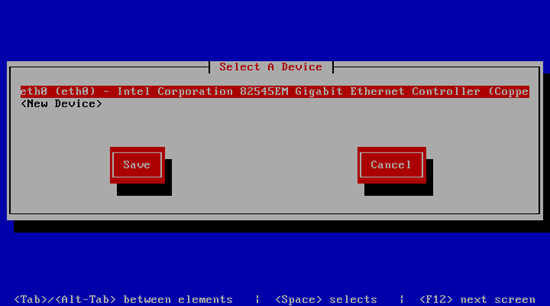

Select your network interface:

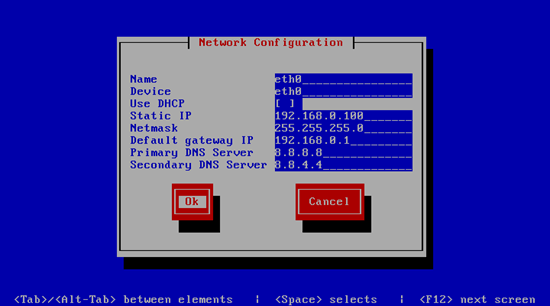

Then fill in your network details - disable DHCP and fill in a static IP address, a netmask, your gateway, and one or two nameservers, then hit Ok:

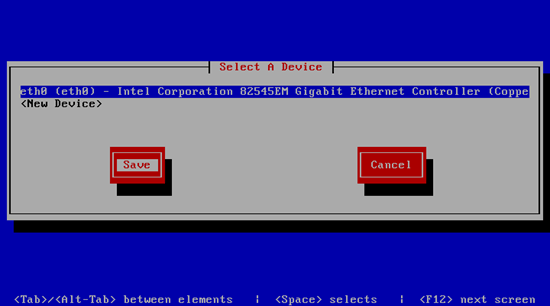

Next select Save:

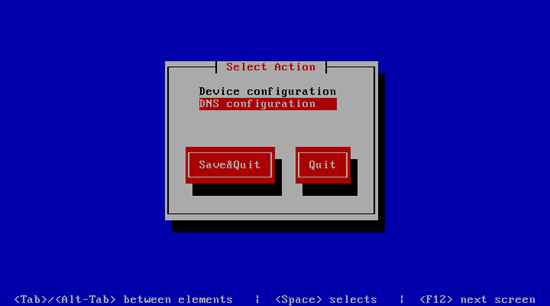

You can also specify additional nameservers. Select DNS configuration:

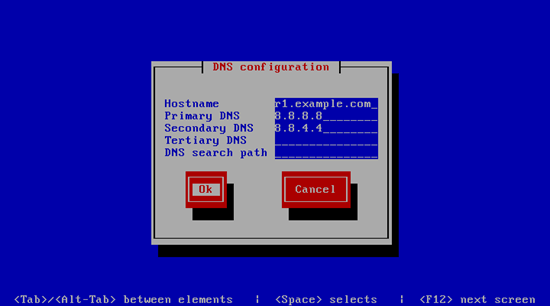

Now you can fill in additional nameservers and hit Ok:

Hit Save&Quit afterwards:

You should run

ifconfig

now to check if the installer got your IP address right:

[root@server1 ~]# ifconfig
eth0      Link encap:Ethernet  HWaddr 00:0C:29:00:85:AC
          inet addr:192.168.0.100  Bcast:192.168.0.255  Mask:255.255.255.0
          inet6 addr: fe80::20c:29ff:fe00:85ac/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:278 errors:0 dropped:0 overruns:0 frame:0
          TX packets:86 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:28503 (27.8 KiB)  TX bytes:16360 (15.9 KiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:16436  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:0 (0.0 b)  TX bytes:0 (0.0 b)

[root@server1 ~]#

Check your /etc/resolv.conf if it lists all nameservers that you've previously configured:

cat /etc/resolv.conf

If nameservers are missing, run

system-config-network

and add the missing nameservers again.

Now, on to the configuration...
