The Perfect Server - CentOS 5.7 x86_64 [ISPConfig 3] - Page 6

Want to support HowtoForge? Become a subscriber!

Submitted by falko (Contact Author) (Forums) on Tue, 2011-09-27 16:35. ::

22 Install SquirrelMail

To install the SquirrelMail webmail client, run...

yum install squirrelmail

... and restart Apache:

/etc/init.d/httpd restart

Then configure SquirrelMail:

/usr/share/squirrelmail/config/conf.pl

We must tell SquirrelMail that we are using Courier-IMAP/-POP3:

SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <-- D


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server

    quit        = Do not change anything
Command >>
 <-- dovecot


SquirrelMail Configuration : Read: config.php
---------------------------------------------------------
While we have been building SquirrelMail, we have discovered some
preferences that work better with some servers that don't work so
well with others.  If you select your IMAP server, this option will
set some pre-defined settings for that server.

Please note that you will still need to go through and make sure
everything is correct.  This does not change everything.  There are
only a few settings that this will change.

Please select your IMAP server:
    bincimap    = Binc IMAP server
    courier     = Courier IMAP server
    cyrus       = Cyrus IMAP server
    dovecot     = Dovecot Secure IMAP server
    exchange    = Microsoft Exchange IMAP server
    hmailserver = hMailServer
    macosx      = Mac OS X Mailserver
    mercury32   = Mercury/32
    uw          = University of Washington's IMAP server

    quit        = Do not change anything
Command >> dovecot

              imap_server_type = dovecot
         default_folder_prefix = <none>
                  trash_folder = Trash
                   sent_folder = Sent
                  draft_folder = Drafts
            show_prefix_option = false
          default_sub_of_inbox = false
show_contain_subfolders_option = false
            optional_delimiter = detect
                 delete_folder = false

Press any key to continue...
<-- press a key


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--S


SquirrelMail Configuration : Read: config.php (1.4.0)
---------------------------------------------------------
Main Menu --
1.  Organization Preferences
2.  Server Settings
3.  Folder Defaults
4.  General Options
5.  Themes
6.  Address Books
7.  Message of the Day (MOTD)
8.  Plugins
9.  Database
10. Languages

D.  Set pre-defined settings for specific IMAP servers

C   Turn color off
S   Save data
Q   Quit

Command >>
 <--Q

One last thing we need to do is modify the file /etc/squirrelmail/config_local.php and comment out the $default_folder_prefix variable - if you don't do this, you will see the following error message in SquirrelMail after you've logged in: Query: CREATE "Sent" Reason Given: Invalid mailbox name.

vi /etc/squirrelmail/config_local.php

<?php

/**
 * Local config overrides.
 *
 * You can override the config.php settings here.
 * Don't do it unless you know what you're doing.
 * Use standard PHP syntax, see config.php for examples.
 *
 * @copyright &copy; 2002-2006 The SquirrelMail Project Team
 * @license http://opensource.org/licenses/gpl-license.php GNU Public License
 * @version $Id: config_local.php,v 1.2 2006/07/11 03:33:47 wtogami Exp $
 * @package squirrelmail
 * @subpackage config
 */

//$default_folder_prefix                = '';
?>

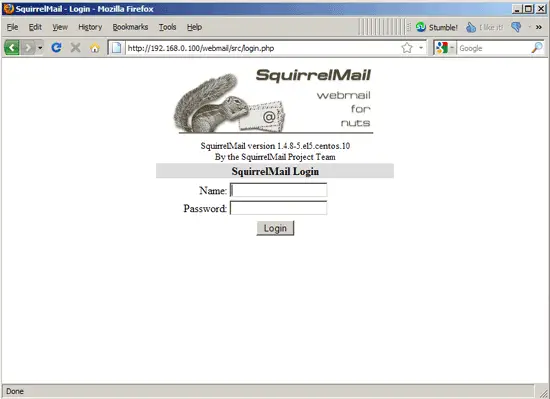

Now you can type in http://server1.example.com/webmail or http://192.168.0.100/webmail in your browser to access SquirrelMail.



23 Install ISPConfig 3

To install ISPConfig 3 from the latest released version, do this:

cd /tmp
wget http://www.ispconfig.org/downloads/ISPConfig-3-stable.tar.gz
tar xfz ISPConfig-3-stable.tar.gz
cd ispconfig3_install/install/

The next step is to run

php -q install.php

This will start the ISPConfig 3 installer:

[root@server1 install]# php -q install.php


--------------------------------------------------------------------------------
 _____ ___________   _____              __ _         ____
|_   _/  ___| ___ \ /  __ \            / _(_)       /__  \
  | | \ `--.| |_/ / | /  \/ ___  _ __ | |_ _  __ _    _/ /
  | |  `--. \  __/  | |    / _ \| '_ \|  _| |/ _` |  |_ |
 _| |_/\__/ / |     | \__/\ (_) | | | | | | | (_| | ___\ \
 \___/\____/\_|      \____/\___/|_| |_|_| |_|\__, | \____/
                                              __/ |
                                             |___/
--------------------------------------------------------------------------------


>> Initial configuration

Operating System: CentOS 5 or compatible

    Following will be a few questions for primary configuration so be careful.
    Default values are in [brackets] and can be accepted with <ENTER>.
    Tap in "quit" (without the quotes) to stop the installer.


Select language (en,de) [en]:
 <-- ENTER

Installation mode (standard,expert) [standard]: <-- ENTER

Full qualified hostname (FQDN) of the server, eg server1.domain.tld  [server1.example.com]: <-- ENTER

MySQL server hostname [localhost]: <-- ENTER

MySQL root username [root]: <-- ENTER

MySQL root password []: <-- yourrootsqlpassword

MySQL database to create [dbispconfig]: <-- ENTER

MySQL charset [utf8]: <-- ENTER

Generating a 2048 bit RSA private key
...............+++
...+++
writing new private key to 'smtpd.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [GB]:
 <-- ENTER
State or Province Name (full name) [Berkshire]: <-- ENTER
Locality Name (eg, city) [Newbury]: <-- ENTER
Organization Name (eg, company) [My Company Ltd]: <-- ENTER
Organizational Unit Name (eg, section) []: <-- ENTER
Common Name (eg, your name or your server's hostname) []: <-- ENTER
Email Address []: <-- ENTER
Configuring Jailkit
Configuring Dovecot
Configuring Spamassassin
Configuring Amavisd
Configuring Getmail
Configuring Pureftpd
Configuring BIND
Configuring Apache
Configuring Vlogger
Configuring Apps vhost
Configuring Firewall
Installing ISPConfig
ISPConfig Port [8080]:
 <-- ENTER

Configuring DBServer
Installing ISPConfig crontab
no crontab for root
no crontab for getmail
Restarting services ...
Stopping MySQL:                                            [  OK  ]
Starting MySQL:                                            [  OK  ]
Shutting down postfix:                                     [  OK  ]
Starting postfix:                                          [  OK  ]
Stopping saslauthd:                                        [FAILED]
Starting saslauthd:                                        [  OK  ]
Shutting down Mail Virus Scanner (amavisd):                [  OK  ]
Starting Mail Virus Scanner (amavisd):                     [  OK  ]
Stopping Clam AntiVirus Daemon:                            [  OK  ]
Starting Clam AntiVirus Daemon: Bytecode: Security mode set to "TrustSigned".
                                                           [  OK  ]
Stopping Dovecot Imap:                                     [  OK  ]
If you have trouble with authentication failures,
enable auth_debug setting. See http://wiki.dovecot.org/WhyDoesItNotWork
This message goes away after the first successful login.
Fatal: listen(::, 143) failed: Address already in use
Starting Dovecot Imap:                                     [FAILED]
Stopping httpd:                                            [  OK  ]
[Mon Sep 26 13:29:58 2011] [warn] NameVirtualHost *:80 has no VirtualHosts
Starting httpd:                                            [  OK  ]
Stopping pure-ftpd:                                        [  OK  ]
Starting pure-ftpd:                                        [  OK  ]
Installation completed.
[root@server1 install]#

The installer automatically configures all underlying services, so no manual configuration is needed.

If Dovecot fails to start with the following error:

Fatal: listen(::, 143) failed: Address already in use

... open /etc/dovecot.conf...

vi /etc/dovecot.conf

... and add the line listen = *:

[...]
#listen = *, [::]
listen = *
[...]

Then try to start Dovecot again:

/etc/init.d/dovecot start

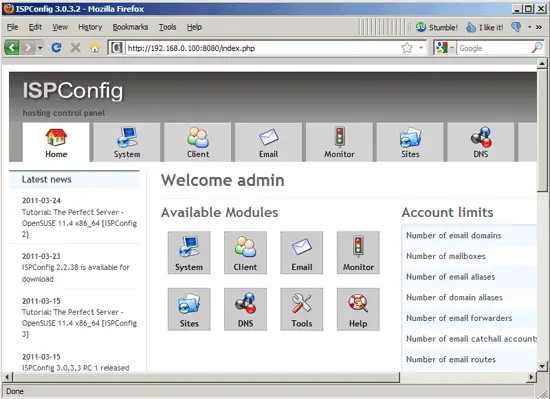

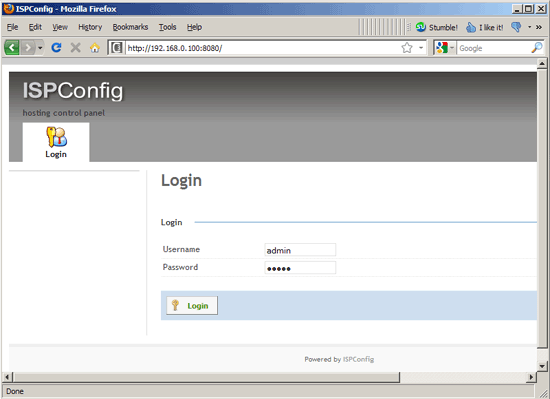

Afterwards you can access ISPConfig 3 under http://server1.example.com:8080/ or http://192.168.0.100:8080/. Log in with the username admin and the password admin (you should change the default password after your first login):

The system is now ready to be used.



23.1 ISPConfig 3 Manual



24 Links


Please do not use the comment function to ask for help! If you need help, please use our forum.
Comments will be published after administrator approval.
Submitted by manos (not registered) on Mon, 2013-06-03 23:48.
Thanks, thanks, thanks, thanks.

This was an excelent toutorial.

I had my server up and running in half an hour.

Also the comments help with the https issue.

You are great

Submitted by jessecfisher (not registered) on Thu, 2012-05-31 16:12.

I did not use this tutorial from start to finish, so my server setup is not identical to what is shown.

I could not connect to port 8080.

My quick and dirty solution was to disable iptables

 service iptables stop



Submitted by 20yearserverguy (not registered) on Thu, 2011-11-17 17:16.

Also at the end, the author forgot the S in https:// instead of http://



Submitted by windstory (registered user) on Wed, 2012-03-28 08:54.
Thanks a lot!
Submitted by Lucas Candido (not registered) on Fri, 2011-11-11 14:50.

In the last step I had this problem:

Stopping httpd:                                            [  OK  ]
Syntax error on line 47 of /etc/httpd/conf/sites-enabled/000-ispconfig.vhost:
Invalid command 'SSLEngine', perhaps misspelled or defined by a module not included in the server configuration
Starting httpd:                                            [FAILED]

It was solved by installing the mod_ssl

yum install mod_ssl
