iRedMail:Full-Featured Mail Server With LDAP, Postfix, RoundCube, Dovecot, ClamAV, SpamAssassin, Amavisd, DKIM SPF On Ubuntu 8.04

Last edited 03/31/2011

iRedMail is a shell script that lets you quickly deploy a full-featured mail solution in less than 2 minutes. Since version 0.5, iRedMail supports Ubuntu 8.04, 9.04 (it supports both i386 and x86_64). Its object is to make a Linux mail server installation and configuration simple and easy to use. iRedMail supports both OpenLDAP and MySQL as backends for storing virtual domains and users.This tutorial shows how to use the OpenLDAP backend.

Now iRedmail provides two webmail programs, RoundCube and SquirrelMail, and both support MySQL and OpenLDAP and can change the password.

The installation steps on Ubuntu 9.04 are the same as on Ubuntu 8.04. The only difference is the sources list setting. Ubuntu 8.04 needs an extra sources list. For Ubuntu 9.04 (Jaunty), all binary packages we need can be installed from the official apt repository.

• Main components used in this solution: http://code.google.com/p/iredmail/wiki/Main_Components
• Discussion forum: http://www.iredmail.org/forum/
• Project home page: http://code.google.com/p/iredmail/

1 Requirements

It is strongly recommended to install a minimal Ubuntu system, and then deploy the mail service via the iRedMail solution. e.g.:

To install such a system you will need the following:

• Ubuntu-8.04.2-server-i386.iso or Ubuntu-8.04.2-server-amd64.iso , downloading Ubuntu CD/DVD images via HTTP/FTP
• Internet connection.

2 Preliminary Note

In this tutorial we use:

• Hostname mail.example.com
• IP address 192.168.1.10
• LDAP suffix (root dn) dc=example,dc=com
• The first virtual domain: example.com

4 Setting hostname

In Ubuntu (Hardy, 8.04 LTS), the hostname is set in these two files:

• /etc/hostname: hostname setting
• /etc/hosts: hostname <=> IP address mapping

Map this hostname to '127.0.0.1' (Warning: List the FQDN hostname as the first item.)

# vi /etc/hosts

#127.0.0.1       localhost
#127.0.1.1      mail.example.com        mail
127.0.0.1   mail.example.com mail localhost localhost.localdomain

# vi /etc/hostname

mail

Verify the FQDN hostname:

# hostname --fqdn

mail.example.com

5 Start The iRedMail Installation

Switch to root user, we must execute the further commands as the root user without sudo.

$sudo su -

Download the new version of iredmail:

# wget http://iredmail.googlecode.com/files/iRedMail-0.7.0.tar.bz2
# tar jxvf iRedMail-0.7.0.tar.bz2

Start the iRedMail installer:

# cd iRedMail-0.7.0
# bash iRedMail.sh

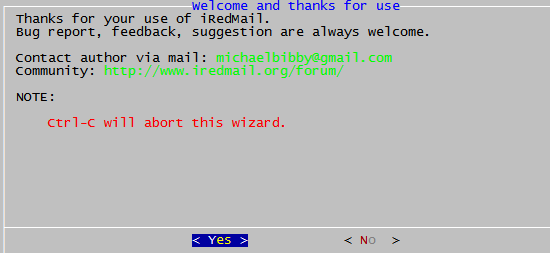

Welcome page:

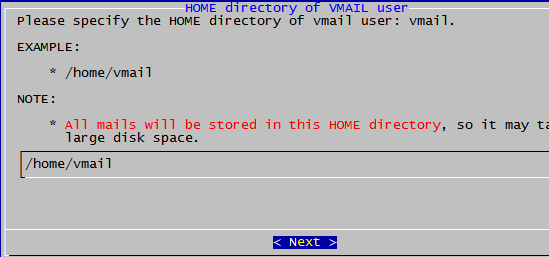

Specify in which directory all emails should be stored.

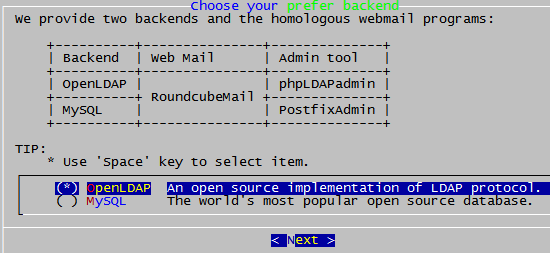

iRedMail supports both OpenLDAP and MySQL as backends to store virtual domains and users. OpenLDAP is recommended.

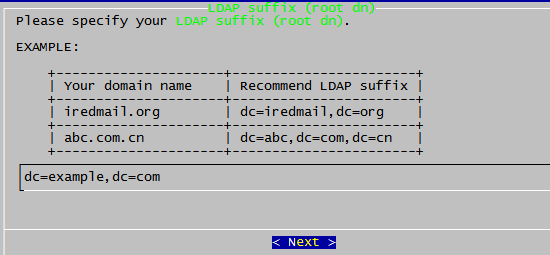

LDAP suffix, normally it's your domain name, such as: dc=example,dc=com
iRedMail will put all virtual domains/users in 'o=domains,dc=example,dc=com', it's called 'LDAP base dn': o=domains,dc=example,dc=com

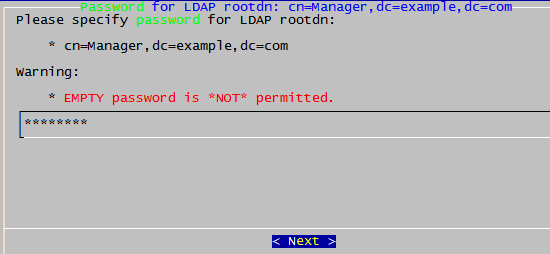

Set a password for the LDAP server admin. Admin account is defined in /etc/ldap/slapd.conf, normaily it's: cn=Manager,dc=example,dc=com
