DRBD 8.3 Third Node Replication With Debian Etch

Installation and Set Up Guide for DRBD 8.3 + Debian Etch

The Third Node Setup

by Brian Hellman

The recent release of DRBD 8.3 now includes The Third Node feature as a freely available component. This document will cover the basics of setting up a third node on a standard Debian Etch installation. At the end of this tutorial you will have a DRBD device that can be utilized as a SAN, an iSCSI target, a file server, or a database server.

Note: LINBIT support customers can skip Section 1 and utilize the package repositories.

LINBIT has hosted third node solutions available, please contact them at sales_us at linbit.com for more information.



Preface:

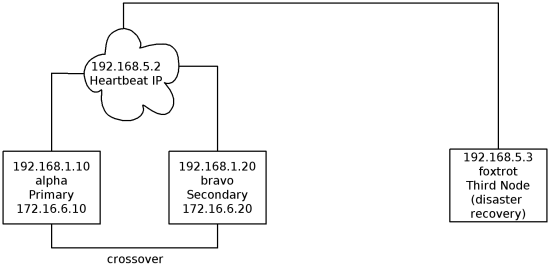

The setup is as follows:

  • Three servers: alpha, bravo, foxtrot
  • alpha and bravo are the primary and secondary local nodes
  • foxtrot is the third node which is on a remote network
  • Both alpha and bravo have interfaces on the 192.168.1.x network (eth0) for external connectivity.
  • A crossover link exists on alpha and bravo (eth1) for replication using 172.16.6.10 and .20
  • Heartbeat provides a virtual IP of 192.168.5.2 to communicate with the disaster recovery node located in a geographically diverse location



Section 1: Installing The Source

These steps need to be done on each of the 3 nodes.

Prerequisites:

  • make
  • gcc
  • glibc development libraries
  • flex scanner generator
  • headers for the current kernel

Enter the following at the command line as a privileged user to satisfy these dependencies:

apt-get install make gcc libc6 flex linux-headers-`uname -r` libc6-dev linux-kernel-headers

Once the dependencies are installed, download DRBD. The latest version can always be obtained at http://oss.linbit.com/drbd/. Currently, it is 8.3.

cd /usr/src/
wget http://oss.linbit.com/drbd/8.3/drbd-8.3.0.tar.gz

After the download is complete:

  • Uncompress DRBD
  • Enter the source directory
  • Compile the source
  • Install DRBD

tar -xzvf drbd-8.3.0.tar.gz
cd /usr/src/drbd-8.3.0/
make clean all
make install

Now load and verify the module:

modprobe drbd
cat /proc/drbd

version: 8.3.0 (api:88/proto:86-89)
GIT-hash: 9ba8b93e24d842f0dd3fb1f9b90e8348ddb95829 build by root@alpha, 2009-02-05 10:36:11

Once this has been completed on each of the three nodes, continue to next section.



Section 2: Heartbeat Configuration

Setting up a third node entails stacking DRBD on top of DRBD. A virtual IP is needed for the third node to connect to, for this we will set up a simple Heartbeat v1 configuration. This section will only be done on alpha and bravo.

Install Heartbeat:

apt-get install heartbeat

Edit the authkeys file:

vi /etc/ha.d/authkeys

auth 1
1 sha1 yoursupersecretpasswordhere

Once the file has been created, change the permissions on the file. Heartbeat will not start if this step is not followed.

chmod 600 /etc/ha.d/authkeys

Copy the authkeys file to bravo:

scp /etc/ha.d/authkeys bravo:/etc/ha.d/

Edit the ha.cf file:

vi /etc/ha.d/ha.cf

debugfile /var/log/ha-debug
	logfile /var/log/ha-log
	logfacility     local0
	keepalive 1
	deadtime 10
	warntime 5
	initdead 60
	udpport 694
	ucast eth0 192.168.1.10
	ucast eth0 192.168.1.20
	auto_failback off
	node alpha
	node bravo

Copy the ha.cf file to bravo:

scp /etc/ha.d/ha.cf bravo:/etc/ha.d/

Edit the haresources file, the IP created here will be the IP that our third node refers to.

vi /etc/ha.d/haresources

alpha IPaddr::192.168.5.2/24/eth0

Copy the haresources file to bravo:

scp /etc/ha.d/haresources bravo:/etc/ha.d/

Start the heartbeat service on both servers to bring up the virtual IP:

alpha:/# /etc/init.d/heartbeat start

bravo:/# /etc/init.d/heartbeat start

Heartbeat will bring up the new interface (eth0:0).

Note: It may take heartbeat up to one minute to bring the interface up.

alpha:/# ifconfig eth0:0

eth0:0 Link encap:Ethernet HWaddr 00:08:C7:DB:01:CC
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1



Section 3: DRBD Configuration

Configuration for DRBD is done via the drbd.conf file. This needs to be the same on all nodes (alpha, bravo, foxtrot). Please note that the usage-count is set to yes, which means it will notify Linbit that you have installed DRBD. No personal information is collected. Please see this page for more information :

global { usage-count yes; }

resource data-lower {
  protocol C;
  net {
    shared-secret "LINBIT";
  }
syncer {
	rate 12M;
}

  on alpha {
    device     /dev/drbd1;
    disk       /dev/hdb1;
    address    172.16.6.10:7788;
    meta-disk  internal;
  }

  on bravo {
    device    /dev/drbd1;
    disk      /dev/hdd1;
    address   172.16.6.20:7788;
    meta-disk internal;
  }
}

  resource data-upper {
  protocol A;
  syncer {
    after data-lower;
    rate 12M;
    al-extents 513;
  }
  net {
        shared-secret "LINBIT";
  }
  stacked-on-top-of data-lower {
        device /dev/drbd3;
        address 192.168.5.2:7788; # IP provided by Heartbeat
        }

  on foxtrot {
    device     /dev/drbd3;
    disk       /dev/sdb1;
    address    192.168.5.3:7788; # Public IP of the backup node
    meta-disk  internal;
  }
}



Section 4: Preparing The DRBD Devices

Now that the configuration is in place, create the metadata on alpha and bravo.

alpha:/usr/src/drbd-8.3.0# drbdadm create-md data-lower

Writing meta data...
initializing activity log
NOT initialized bitmap
New drbd meta data block successfully created.

bravo:/usr/src/drbd-8.3.0# drbdadm create-md data-lower

Writing meta data...
initialising activity log
NOT initialized bitmap
New drbd meta data block successfully created.

Now start DRBD on alpha and bravo:

alpha:/usr/src/drbd-8.3.0# /etc/init.d/drbd start

bravo:/usr/src/drbd-8.3.0# /etc/init.d/drbd start

Verify that the lower level DRBD devices are connected:

cat /proc/drbd

version: 8.3.0 (api:88/proto:86-89)
GIT-hash: 9ba8b93e24d842f0dd3fb1f9b90e8348ddb95829 build by root@alpha, 2009-02-05 10:36:11
0: cs:Connected ro:Secondary/Secondary ds:Inconsistent/Inconsistent C r---
ns:0 nr:0 dw:0 dr:0 al:0 bm:0 lo:0 pe:0 ua:0 ap:0 ep:1 wo:b oos:19530844

Tell alpha to become the primary node:

NOTE: As the command states, this is going to overwrite any data on bravo: Now is a good time to go and grab your favorite drink.

alpha:/# drbdadm -- --overwrite-data-of-peer primary data-lower
alpha:/# cat /proc/drbd

version: 8.3.0 (api:88/proto:86-89)
GIT-hash: 9ba8b93e24d842f0dd3fb1f9b90e8348ddb95829 build by root@alpha, 2009-02-05 10:36:11
0: cs:SyncSource ro:Primary/Secondary ds:UpToDate/Inconsistent C r---
ns:3088464 nr:0 dw:0 dr:3089408 al:0 bm:188 lo:23 pe:6 ua:53 ap:0 ep:1 wo:b oos:16442556
[==>.................] sync'ed: 15.9% (16057/19073)M
finish: 0:16:30 speed: 16,512 (8,276) K/sec

After the data sync has finished, create the meta-data on data-upper on alpha, followed by foxtrot.

Note the resource is data-upper and the --stacked option is on alpha only.

alpha:~# drbdadm --stacked create-md data-upper

Writing meta data...
initialising activity log
NOT initialized bitmap
New drbd meta data block successfully created.
success

foxtrot:/usr/src/drbd-8.3.0# drbdadm create-md data-upper

Writing meta data...
initialising activity log
NOT initialized bitmap
New drbd meta data block sucessfully created.

Bring up the stacked resource, then make alpha the primary of data-upper:

alpha:/# drbdadm --stacked adjust data-upper

foxtrot:~# drbdadm adjust data-upper
foxtrot:~# cat /proc/drbd

version: 8.3.0 (api:88/proto:86-89)
GIT-hash: 9ba8b93e24d842f0dd3fb1f9b90e8348ddb95829 build by root@foxtrot, 2009-02-02 10:28:37
1: cs:Connected ro:Secondary/Secondary ds:Inconsistent/Inconsistent A r---
ns:0 nr:0 dw:0 dr:0 al:0 bm:0 lo:0 pe:0 ua:0 ap:0 ep:1 wo:b oos:19530208

alpha:~# drbdadm --stacked -- --overwrite-data-of-peer primary data-upper
alpha:~# cat /proc/drbd

version: 8.3.0 (api:88/proto:86-89)
GIT-hash: 9ba8b93e24d842f0dd3fb1f9b90e8348ddb95829 build by root@alpha, 2009-02-05 10:36:11
0: cs:Connected ro:Primary/Secondary ds:UpToDate/UpToDate C r---
ns:19532532 nr:0 dw:1688 dr:34046020 al:1 bm:1196 lo:156 pe:0 ua:0 ap:156 ep:1 wo:b oos:0
1: cs:SyncSource ro:Primary/Secondary ds:UpToDate/Inconsistent A r---
ns:14512132 nr:0 dw:0 dr:14512676 al:0 bm:885 lo:156 pe:32 ua:292 ap:0 ep:1 wo:b oos:5018200
[=============>......] sync'ed: 74.4% (4900/19072)M
finish: 0:07:06 speed: 11,776 (10,992) K/sec

Drink time again!

After the sync is complete, access your DRBD block device via /dev/drbd3. This will write to both local nodes and the remote third node. In your Heartbeat configuration you will use the "drbdupper" script to bring up your /dev/drbd3 device. Have fun!

DRBD® and LINBIT® are registered trademarks of LINBIT, Austria.
